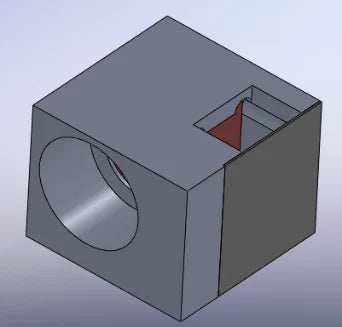

Double-fold prism for telecentric lenses, output turned 90°, 30 mm optical path (LS-LXR-0144)
Model LS-LXR-0144
- TypePrisms
- Internal optical path30 mm
$309.00
Ships in 2-3 weeks
0.21 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
lumaspecvision.com/products/lumaspec-ls-lxr-0144
LS-LXR-0144: double-fold prism, output turned 90 degrees, internal optical path 30 mm.
Turning and viewing prisms for telecentric lenses.
