Lens accessories

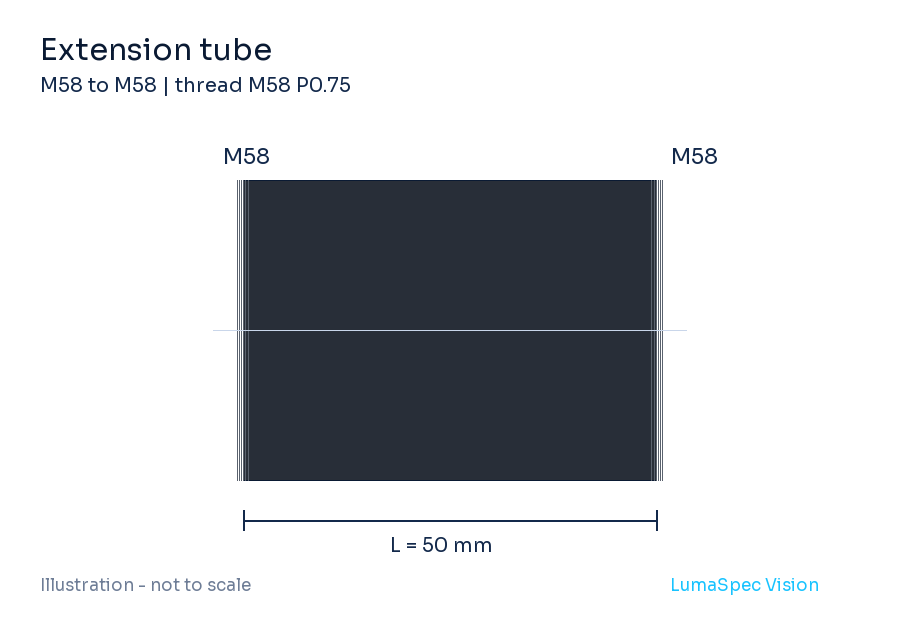

Extension tube, 50 mm, M58 P0.75 thread (LS-LXR-0052)
Model LS-LXR-0052
- Length50 mm
- TypeExtension tube
- MountM58 to M58
- ThreadM58 P0.75
$89.00
Ships in 2-3 weeks
0.21 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
lumaspecvision.com/products/lumaspec-ls-lxr-0052
LS-LXR-0052: mount M58 to M58, length 50 mm, thread pitch M58 P0.75.
Extension tubes: mount, length (mm) and thread pitch are listed in the specifications.
Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts Secure checkout Shipping, warranty, support and payment details
- Tracked worldwide shippingTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
90-day returns Unused items, counted from delivery; free US return label; no restocking fee Return policy
Specifications
General
| Model | LS-LXR-0052 |
|---|---|
| Type | Extension tube |

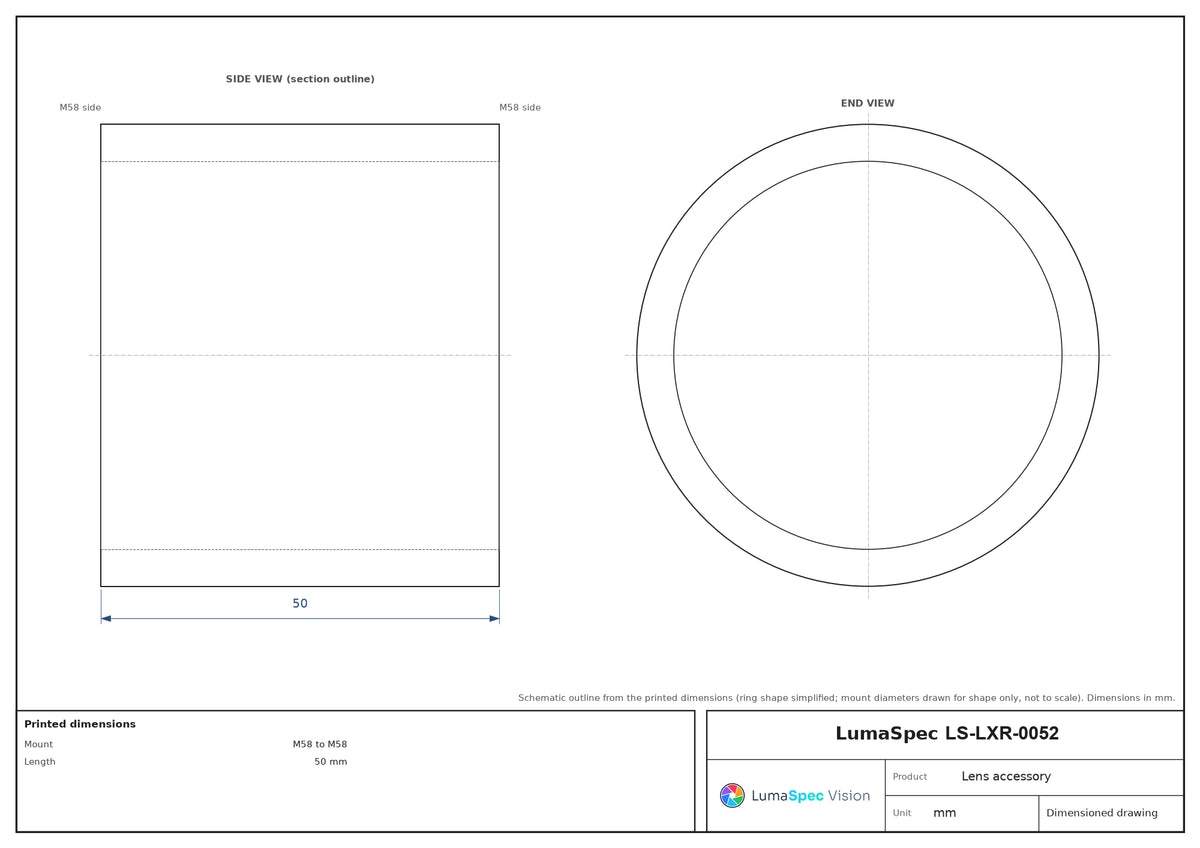

Mechanical
| Mount | M58 to M58 |
|---|---|
| Length (mm) | 50 |
| Thread pitch | M58 P0.75 |
| Shipping weight | 0.21 kg |
Learn
Guides for this part
Engineering guides picked for the LS-LXR-0052: how to choose it, set it up and get a better image.
How to choose a machine vision lens focal lengthDivide the sensor width by the field of view to get the magnification m, then multiply the working distance by m / (1 + m).
Machine vision depth of field calculatorDepth of field ≈ 2 × N × c × (1 + m) / m², where N is the lens F-number, c the allowed blur (pixels × pixel size) and m the magnification.
Other models in the Extension tube (LS-LXR-S03) series
See all 20 modelsHow this model compares
- Compared with LS-LXR-0056: mount M58 to M58 here, M58 to M72 there; thread pitch M58 P0.75 here, M72 P0.75 there.
- Length 50 mm; next size down 30 mm (LS-LXR-0066), up 100 mm (LS-LXR-0048), of 8 lengths from 10 to 100 mm.
Swipe to see all columns
| Model | Length | Mount | Thread | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-LXR-0049 | 10 mm | M58 to M58 | M58 P0.75 | $59.00 | Ships in 2-3 weeks | View |
| LS-LXR-0050 | 24 mm | M58 to M58 | M58 P0.75 | $69.00 | Ships in 2-3 weeks | View |
| LS-LXR-0051 | 25 mm | M58 to M58 | M58 P0.75 | $69.00 | Ships in 2-3 weeks | View |
| LS-LXR-0052This model | 50 mm | M58 to M58 | M58 P0.75 | $89.00 | Ships in 2-3 weeks | |
| LS-LXR-0064 | 50 mm | M90 to M90 | M90 P1 | $99.00 | Ships in 2-3 weeks | View |
| LS-LXR-0067 | 50 mm | M95 to M95 | M95 P1 | $99.00 | Ships in 2-3 weeks | View |
| LS-LXR-0056 | 50 mm | M58 to M72 | M72 P0.75 | $99.00 | Ships in 2-3 weeks | View |
| LS-LXR-0058 | $99.00 | Ships in 2-3 weeks | View | |||
| LS-LXR-0048 | 100 mm | M58 to M58 | M58 P0.75 | $99.00 | Ships in 2-3 weeks | View |
