Lens accessories

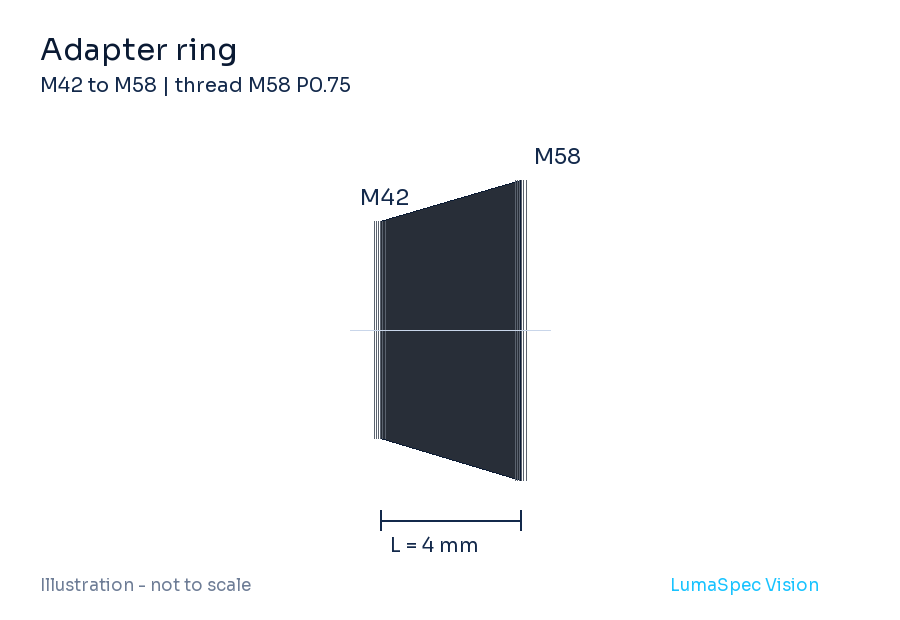

Adapter ring, length 4 mm, M58 P0.75 thread (LS-LXR-0013)
Model LS-LXR-0013
- Length4 mm
- TypeAdapter ring
- MountM42 to M58
- ThreadM58 P0.75
$59.00
Ships in 2-3 weeks
0.21 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?

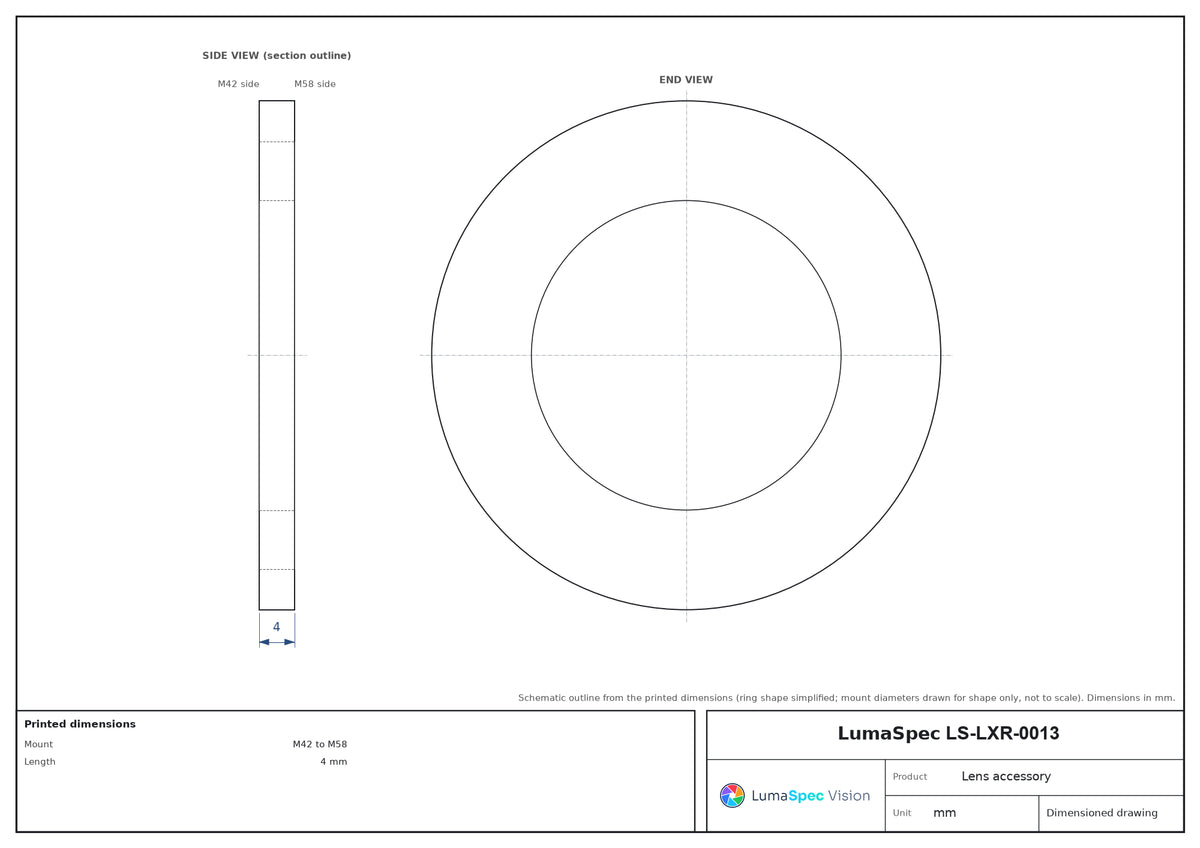

LS-LXR-0013: mount M42 to M58, length 4 mm, thread pitch M58 P0.75.
Adapter rings between lens and camera mounts: mount, length (mm) and thread pitch marked in the accessories table.
- Tracked worldwide shippingTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LXR-0013 |
|---|---|
| Type | Adapter ring |
Mechanical
| Mount | M42 to M58 |
|---|---|
| Length (mm) | 4 |
| Thread pitch | M58 P0.75 |
| Shipping weight | 0.21 kg |
Engineering data
The LS-LXR-0013 at a glance
The numbers that set this model apart, taken from its own printed specifications.
MountM42 to M58
ThreadM58 × 0.75
Length4 mm
Other models in the Adapter ring (LS-LXR-S01) series
See all 26 models| Model | Length | Mount | Thread | Price | Availability | Link |
|---|---|---|---|---|---|---|
| LS-LXR-0013This model | 4 mm | M42 to M58 | M58 P0.75 | $59.00 | Ships in 2-3 weeks | |
| LS-LXR-0001 | 10 mm | M58 to C | M25 P0.75 | $59.00 | Ships in 2-3 weeks | View |
| LS-LXR-0002 | 10 mm | M50 to M42 | M42 P1 | $59.00 | Ships in 2-3 weeks | View |
| LS-LXR-0003 | 8.47 mm | V to C | M25 P0.75 | $59.00 | Ships in 2-3 weeks | View |
| LS-LXR-0004 | 10 mm | M58 to M42 | M42 P1 | $59.00 | Ships in 2-3 weeks | View |
| LS-LXR-0005 | 12.5 mm | C to M42 | M42 P1 | $59.00 | Ships in 2-3 weeks | View |
| LS-LXR-0006 | 12.1 mm | V Mount to M42 | M42 P1 | $59.00 | Ships in 2-3 weeks | View |
| LS-LXR-0007 | 24.3 mm | M58 to M42 | M42 P1 | $59.00 | Ships in 2-3 weeks | View |
| LS-LXR-0008 | 5.526 mm | C to M42 | M42 P1 | $59.00 | Ships in 2-3 weeks | View |
| LS-LXR-0009 | 10 mm | M58 to M42 | M42 P1 | $59.00 | Ships in 2-3 weeks | View |
| LS-LXR-0010 | 97 mm | M50 to F Mount | Threadless | $59.00 | Ships in 2-3 weeks | View |
| LS-LXR-0011 | 10 mm | M52 to F Mount | Threadless | $59.00 | Ships in 2-3 weeks | View |
| LS-LXR-0012 | 8 mm | M58 to F Mount | Threadless | $59.00 | Ships in 2-3 weeks | View |
| LS-LXR-0014 | 6 mm | M72 to M58 | M58 P0.75 | $59.00 | Ships in 2-3 weeks | View |
| LS-LXR-0015 | 9 mm | M58 to F Mount | Threadless | $59.00 | Ships in 2-3 weeks | View |
| LS-LXR-0016 | 14.2 mm | M54 to M58 | M58 P0.75 | $59.00 | Ships in 2-3 weeks | View |
| LS-LXR-0017 | 26.8 mm | M58 to F Mount | Threadless | $59.00 | Ships in 2-3 weeks | View |
| LS-LXR-0018 | 10 mm | M58 to F Mount | Threadless | $59.00 | Ships in 2-3 weeks | View |
| LS-LXR-0019 | 4 mm | M42 to M72 | M72 P0.75 | $59.00 | Ships in 2-3 weeks | View |
| LS-LXR-0020 | 10 mm | M72 to F Mount | Threadless | $59.00 | Ships in 2-3 weeks | View |
| LS-LXR-0021 | 78 mm | M72 to F Mount | Threadless | $59.00 | Ships in 2-3 weeks | View |
| LS-LXR-0022 | 25 mm | M72 to M84.5 | M84.5 P0.5 | $59.00 | Ships in 2-3 weeks | View |
| LS-LXR-0023 | 50 mm | M72 to M90 | M90 P1 | $59.00 | Ships in 2-3 weeks | View |
| LS-LXR-0024 | 3 mm | M72 to M95 | M95 P1 | $59.00 | Ships in 2-3 weeks | View |
| LS-LXR-0025 | 10 mm | M95 to F Mount | Threadless | $59.00 | Ships in 2-3 weeks | View |
