Lighting accessories
Light Cable, 19M-2E to 19M-2A, 5 m (LS-LW-005-1-B19)
Model LS-LW-005-1-B19
- Length5 m
- End A19M-2E
- End B19M-2A
- Diameterφ7.5 mm
$39.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.31 kg shipping weight
Volume pricing, Net 30 or a formal quote?

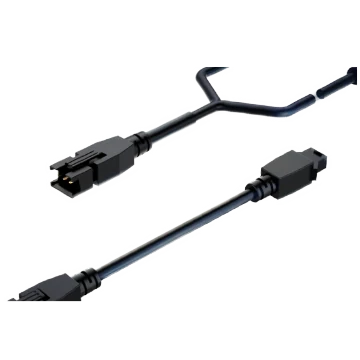

Light Cable, 19M-2E to 19M-2A, 5 m. Multiple lengths for mounting lights at different distances Multiple light connectors to match all common light interface types
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LW-005-1-B19 |
|---|---|
| Flame resistance rating | 15 A |
| Insulation | ≥ 10 MΩ |
Interfaces and I/O
| End A connector | 19M-2E |
|---|---|
| End B connector | 19M-2A |
| Cable diameter | φ7.5 mm |
| Cable jacket | PVC |
| Connector durability | 2×10, 000 cycles |
Environment and compliance
| Temperature | Operating temp.: -20 to 40 °C, Storage temp.: -20 to 60 °C |
|---|---|
| Humidity | 20% ~ 85%RH |
| Ingress protection | IP30 (when properly installed) |
| Certification | RoHS |
Electrical
| Channel | 1 |
|---|---|
| Withstand voltage capability | 300 |
Mechanical
| Length | 5 m |
|---|---|
| Max. ±90° bending cycles | 1 million times |
| Min. bending radius | 90 mm |
| Shipping weight (estimated) | 0.31 kg |
