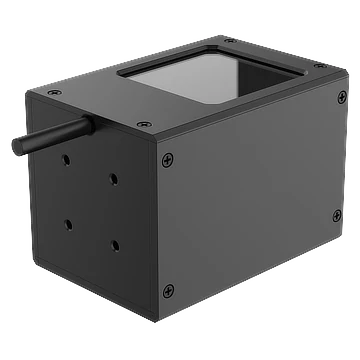

Coaxial Light, 60 x 60 mm, White (LS-LTZ-H-60-60-W)
  • Coaxial Light, 60 x 60 mm, White (LS-LTZ-H-60-60-W)

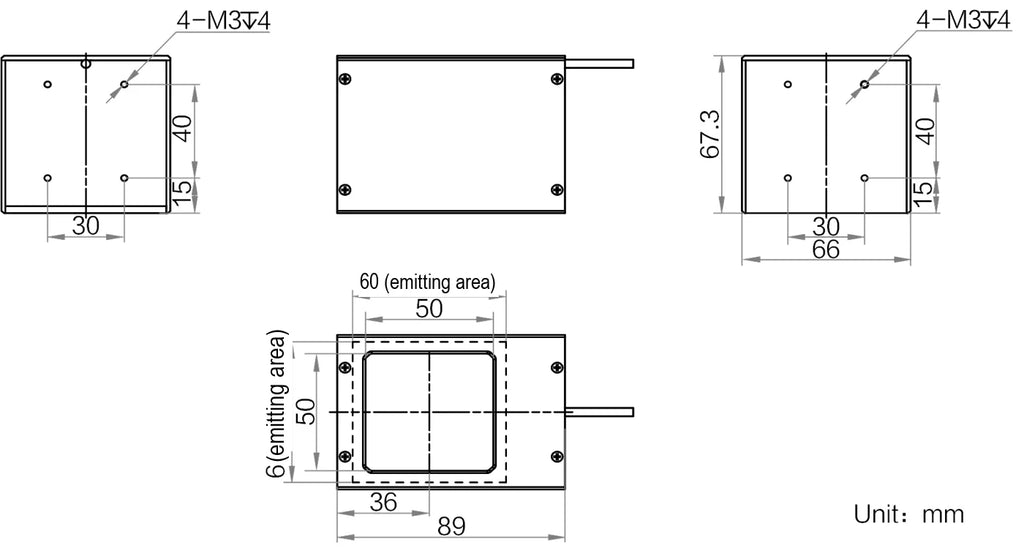

  • LS-LTZ-H-60-60-W dimensions (mm)

Coaxial lights

Coaxial Light, 60 x 60 mm, White (LS-LTZ-H-60-60-W)

Model LS-LTZ-H-60-60-W

  • ColourWhite
  • Emitting area60 mm × 60 mm
  • Size89 mm × 67.3 mm × 66 mm
  • Power9.6 W
$159.00

In stock - ships the same business day (3 available, order by 2 PM ET)

0.55 kg shipping weight

Volume pricing, Net 30 or a formal quote?

Coaxial Light, 60 x 60 mm, White. Special beam-splitter design improves illumination efficiency Efficient heat dissipation for longer service life

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-LTZ-H-60-60-W
Cooling modeNatural cooling

Interfaces and I/O

Connector typeSMR-03V-B
Cable length1 m

Light

ColorWhite
Emitting area dimension60 mm × 60 mm
Color temperature6000 ~ 7000K
Diffuse plate includedIncluded

Environment and compliance

Humidity20% RH to 90% RH (no condensation)

Electrical

Power9.6 W
Supply voltage (derived)24 V DC, derived: all 370 lights of this range with the same connector type that state a voltage are rated 24 V

Mechanical

Dimension89 mm × 67.3 mm × 66 mm
Weight320 g
Shipping weight (estimated)0.55 kg
