Line scan lights

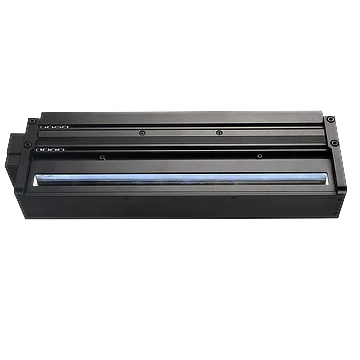

Line Scan Light, 338 mm, White, size 338 mm × 109 mm × 53 mm (LS-LTPS-300-W)
Model LS-LTPS-300-W
- ColourWhite
- Emitting area292 mm × 17 mm
- Size338 mm × 109 mm × 53 mm
- Power46.1 W
$639.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.66 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Line Scan Light, 338 mm, White. Modular design: coaxial module and line light detach easily One-piece aluminum alloy housing for good heat dissipation
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LTPS-300-W |
|---|
Interfaces and I/O
| Connector type | 20M-4J |
|---|---|
| Cable length | 500 mm |
Light
| Color | White |
|---|---|
| Color temperature | 6000 ~ 7000K |
| Emitting area dimension | 292 mm × 17 mm |
| Diffuse plate included | Included |
Environment and compliance
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
|---|---|
| Humidity | 20% to 85% RH (non-condensing) |
Electrical
| Power | 46.1 W |
|---|
Mechanical
| Dimension | 338 mm × 109 mm × 53 mm |
|---|---|
| Shipping weight (estimated) | 0.66 kg |
Other models in the High-brightness line lights series
See all 3 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-LTPS-150-W | 170 mm, White | $359.00 | 5 in stock | View |
| LS-LTPS-450-W | 470 mm, White | $919.00 | 5 in stock | View |
