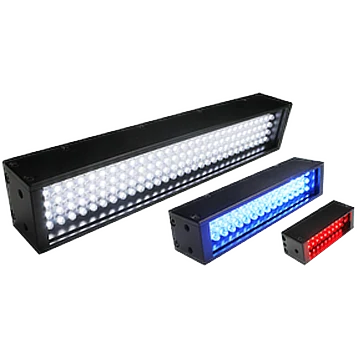

Bar Light, 237 x 38 mm, White (LS-LT-237-38-W)
  • Bar Light, 237 x 38 mm, White (LS-LT-237-38-W)
  • LS-LT-237-38-W dimensions (mm)

Bar lights

Bar Light, 237 x 38 mm, White (LS-LT-237-38-W)

Model LS-LT-237-38-W

  • ColourWhite
  • Emitting area225 mm × 32 mm
  • Size237 mm × 38 mm × 27 mm
  • Power19.5 W
$159.00

In stock - ships the same business day (5 available, order by 2 PM ET)

0.66 kg shipping weight

Volume pricing, Net 30 or a formal quote?

Bar Light, 237 x 38 mm, White. One-piece aluminum alloy body for good heat dissipation Multiple mounting options: both ends and back

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-LT-237-38-W

Interfaces and I/O

Connector typeSMR-03V-B
Cable length500 mm

Light

ColorWhite
Color temperature6000~7000K
LED rows6
Emitting area length225 mm × 32 mm
Diffuse plate includedIncluded

Environment and compliance

TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity20% to 85% RH (non-condensing)

Electrical

Power19.5 W
Supply voltage (derived)24 V DC, derived: all 370 lights of this range with the same connector type that state a voltage are rated 24 V

Mechanical

Dimension237 mm × 38 mm × 27 mm
Shipping weight (estimated)0.66 kg
