16K line scan lens, 100 mm, 0.75x, F3.8, BFL 180.5 mm (LS-LSL-0101)

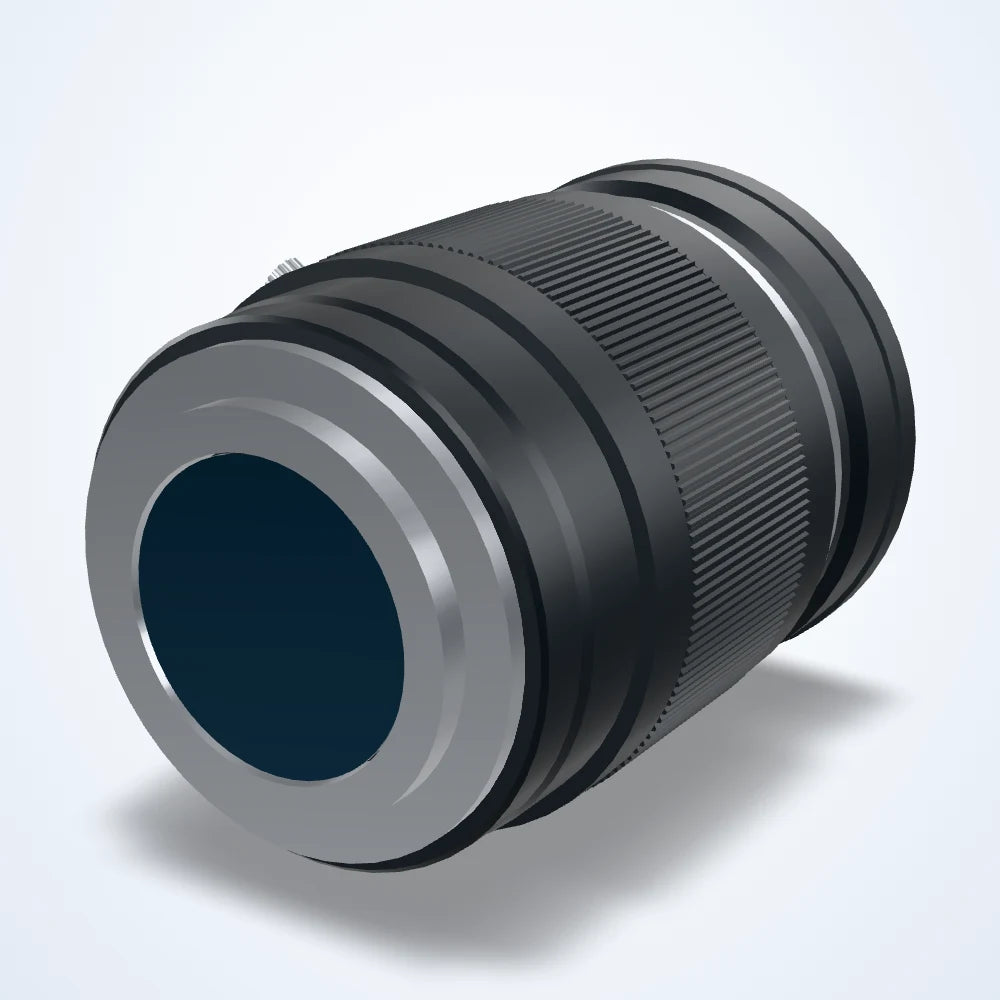

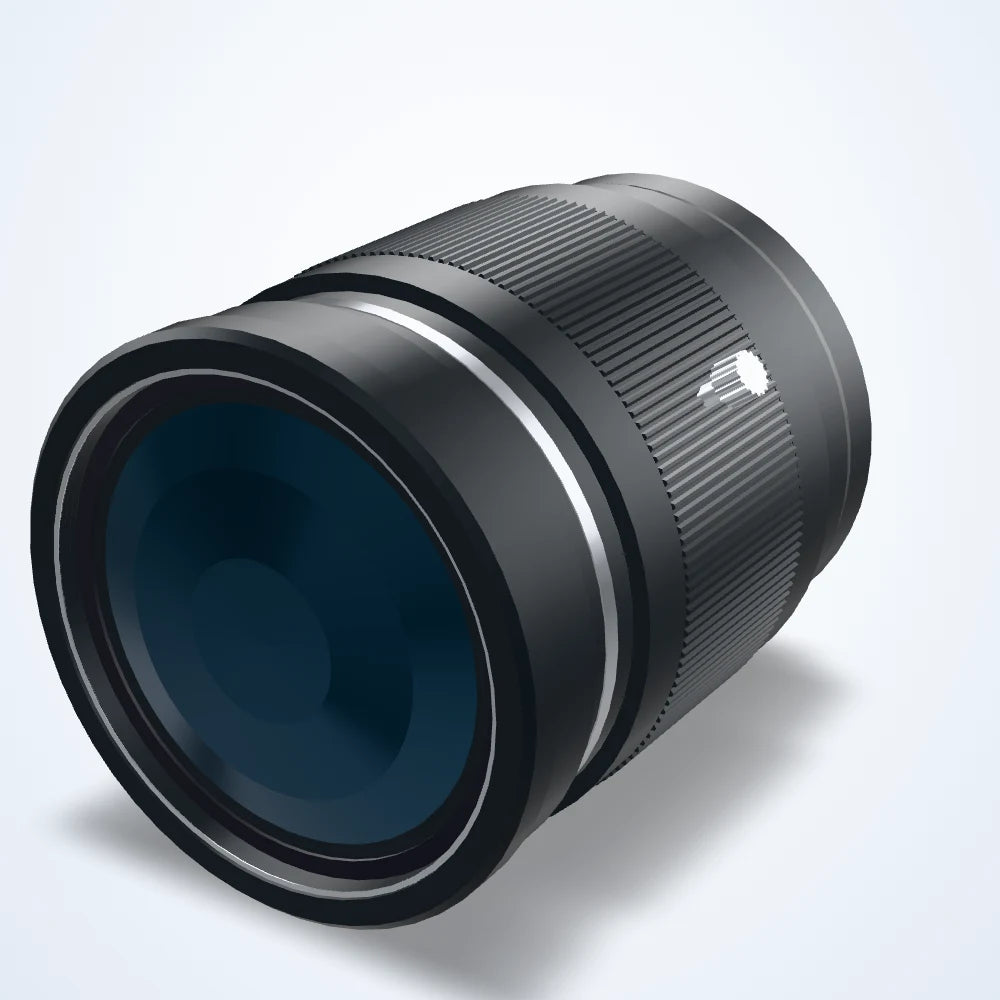

Rendered illustration

Rendered illustration: the actual product may differ in appearance.

Line scan lenses

16K line scan lens, 100 mm, 0.75x, F3.8, BFL 180.5 mm (LS-LSL-0101)

Model LS-LSL-0101

Focal length100 mm
Magnification0.75x
MountV-mount
SensorLarge format
Working distance220.8 mm
ApertureF3.8

$1,135.00

Ships in 3-4 weeks

1.0 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

lumaspecvision.com/products/lumaspec-ls-lsl-0101

LS-LSL-0101 sits in the upper half of the 18 focal lengths in its series, with a 100 mm lens: a narrower view than most of the series, for smaller detail or longer distances.

LS-LSL-0101: focal length 100 mm, sensor format 66 mm, aperture F3.8, working distance 220.8 mm.

16K line scan lens, 100 mm for line-scan cameras on webs and conveyors. Focal length 100 mm; magnification 0.75x; aperture F3.8.

Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts Secure checkout Shipping, warranty, support and payment details

Tracked worldwide shippingTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

90-day returns Unused items, counted from delivery; free US return label; no restocking fee Return policy

Specifications

General

Model	LS-LSL-0101
Conjugate distance	444.8 mm

Optics

Focal length	100 mm
Magnification	0.75x
Aperture	F3.8
Working distance	220.8 mm
Distortion	0.0008%
Focus	Manual

Sensor and imaging

Resolution	16k3.5μ
Sensor format	66 mm

Light

Wavelength range	400-950 nm

Environment and compliance

Operating temperature	-10 to 50 °C
Storage temperature	-20 to 60 °C

Mechanical

Flange back length	180.5 mm
Mount	V-mount

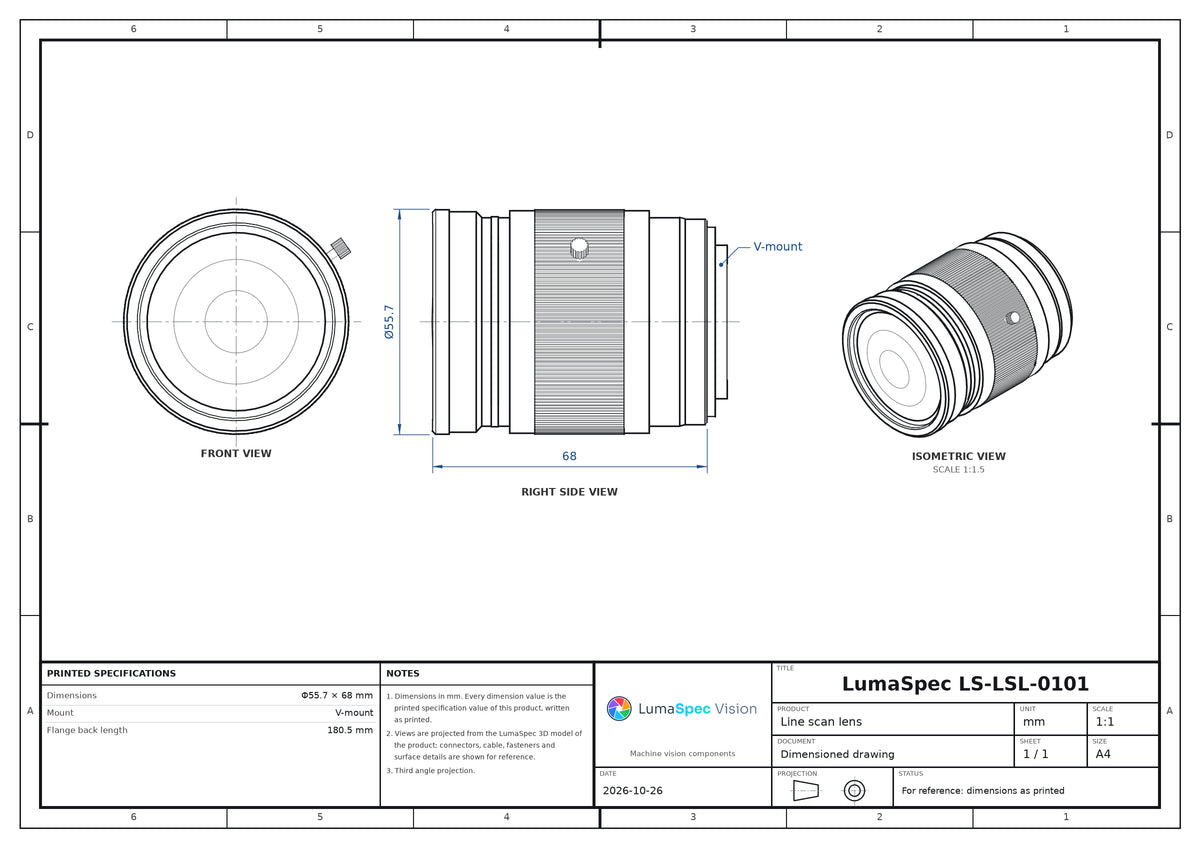

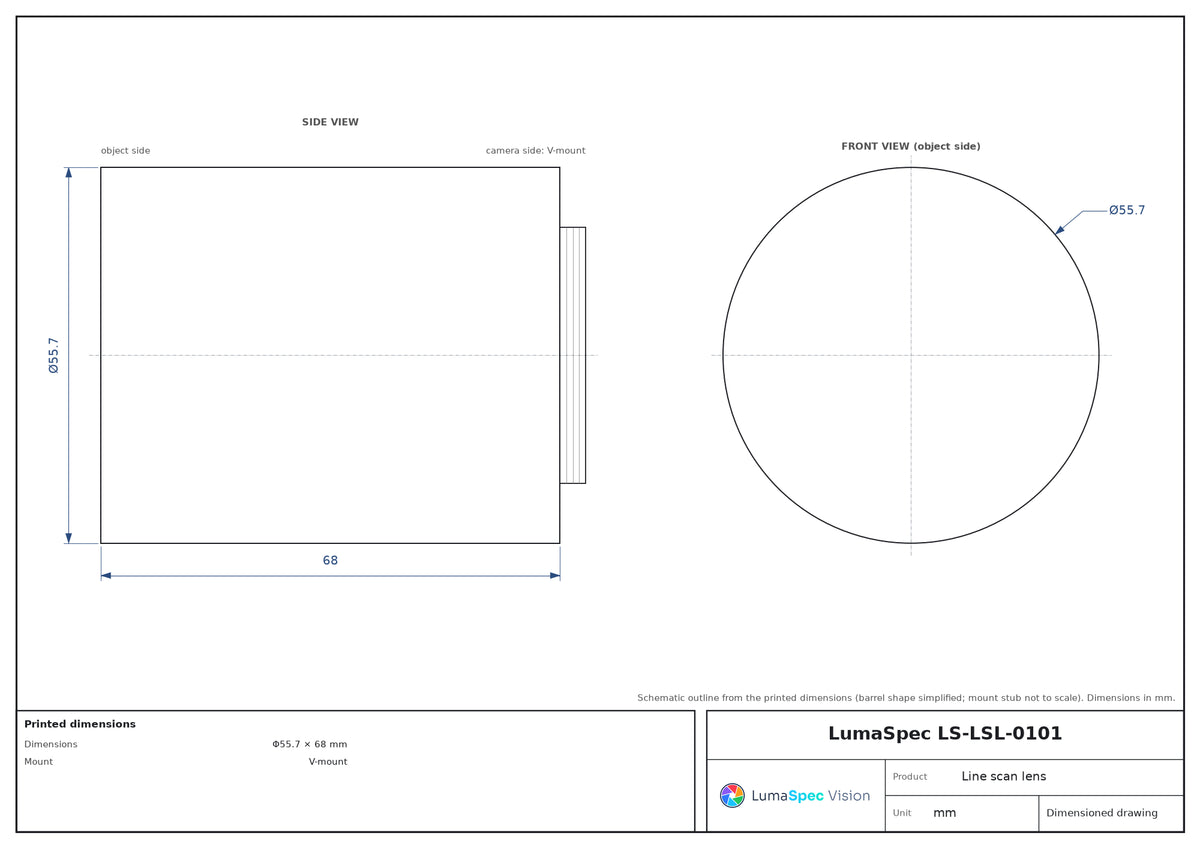

Dimensions	Φ55.7 × 68 mm
Shipping weight	1.00 kg

Downloads

Features

A 100 mm lens, in the upper half of the 18 focal lengths: a narrower view than most of the series, for smaller detail or longer distances
V-mount interface
0.75x at 220.8 mm: a 66 mm sensor sees a field about 88 mm across (diagonal)
0.0008 % distortion: a corner point of the 88 mm field lands within about 0.35 µm of its true place
Corrected for 400 to 950 nm: works with visible and 850 nm near-infrared lights

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer

Engineering data

Field of view with the LS-LSL-0101

Focal length100 mm

Image circleØ 66 mm

Magnification0.75×

Distortion0.0008 %

Flange distance180.5 mm

SizeØ 55.7 × 68 mm

Field of view (width × height) by sensor format
Sensor format	0.75×
2k × 7 µm14.34 mm	19.1 mm
4k × 7 µm28.67 mm	38.2 mm
8k × 5 µm40.96 mm	54.6 mm
8k × 7 µm57.34 mm	76.5 mm
16k × 3.5 µm57.34 mm	76.5 mm

Field of view = sensor size ÷ magnification. Sensor sizes are typical for each optical format.

Before you buy

Questions about the LS-LSL-0101

Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.

What field of view does the LS-LSL-0101 give?

About 76.5 mm wide on a 16k × 3.5 µm line sensor, at its 221 mm working distance (calculated: sensor size / 0.75x magnification).

What sensor size is the LS-LSL-0101 made for?

The sensor format is 66 mm.

How does the LS-LSL-0101 differ from LS-LSL-0107?

Compared with LS-LSL-0107: magnification 0.75x here, 0.5x there; working distance 220.8 mm here, 296.2 mm there.

Learn

Guides for this part

Engineering guides picked for the LS-LSL-0101: how to choose it, set it up and get a better image.

All guides

Line scan lens selection for 4K, 8K and 16K camerasA line scan lens must cover the full sensor line (28.7 mm for 4K at 7 µm, 57.3 mm for 8K at 7 µm, up to 82 mm for 16K at 5 µm), resolve the pixel pitch, and be designed for your magnification. Large format machine vision lens: M58 and M72 for 65 MP and upA large format machine vision lens must have an image circle at least as large as the sensor diagonal (37.4 mm for a 65 MP, 3.2 µm sensor; 46.6 mm for 103 MP), resolve the pixel pitch to the corners, and match the… Line scan camera line rate calculatorLine rate = speed / object pixel, and object pixel = field of view / pixels per line.

Other models in the 8K line scan lenses and cameras (LS-LSL-S01) series

See all 61 models

How this model compares

Working distance 220.8 mm: 14 of the 21 line scan lenses that list a working distance are longer, 6 shorter (median 299.7 mm).
Focal length 100 mm; next down 95 mm (LS-LSL-0100), up 114 mm (LS-LSL-0102), of 18 focal lengths from 20 to 145 mm.
Compared with LS-LSL-0107: magnification 0.75x here, 0.5x there; working distance 220.8 mm here, 296.2 mm there.

Model	Focal length	Magnification	Working distance	Price	Availability	Link
LS-LSL-0098	80 mm	0.3x	320.26 mm	$585.00	Ships in 3-4 weeks	CompareView
LS-LSL-0099	90 mm	0.1x	1123.5 mm	$890.00	Ships in 3-4 weeks	CompareView
LS-LSL-0100	95 mm	0.05x	1980.85 mm	$815.00	Ships in 3-4 weeks	CompareView
LS-LSL-0101This model	100 mm	0.75x	220.8 mm	$1,135.00	Ships in 3-4 weeks	Compare
LS-LSL-0102	114 mm	0.26x	497.5 mm	$1,135.00	Ships in 3-4 weeks	CompareView
LS-LSL-0106	116 mm	0.42x	339.74 mm	$1,135.00	Ships in 3-4 weeks	CompareView
LS-LSL-0107	116 mm	0.5x	296.2 mm	$1,135.00	Ships in 3-4 weeks	CompareView
LS-LSL-0123	120 mm	0.26x	663.4 mm	$1,400.00	Ships in 3-4 weeks	CompareView
LS-LSL-0124	120 mm	0.3x	534.64 mm	$1,400.00	Ships in 3-4 weeks	CompareView
