Line scan lenses

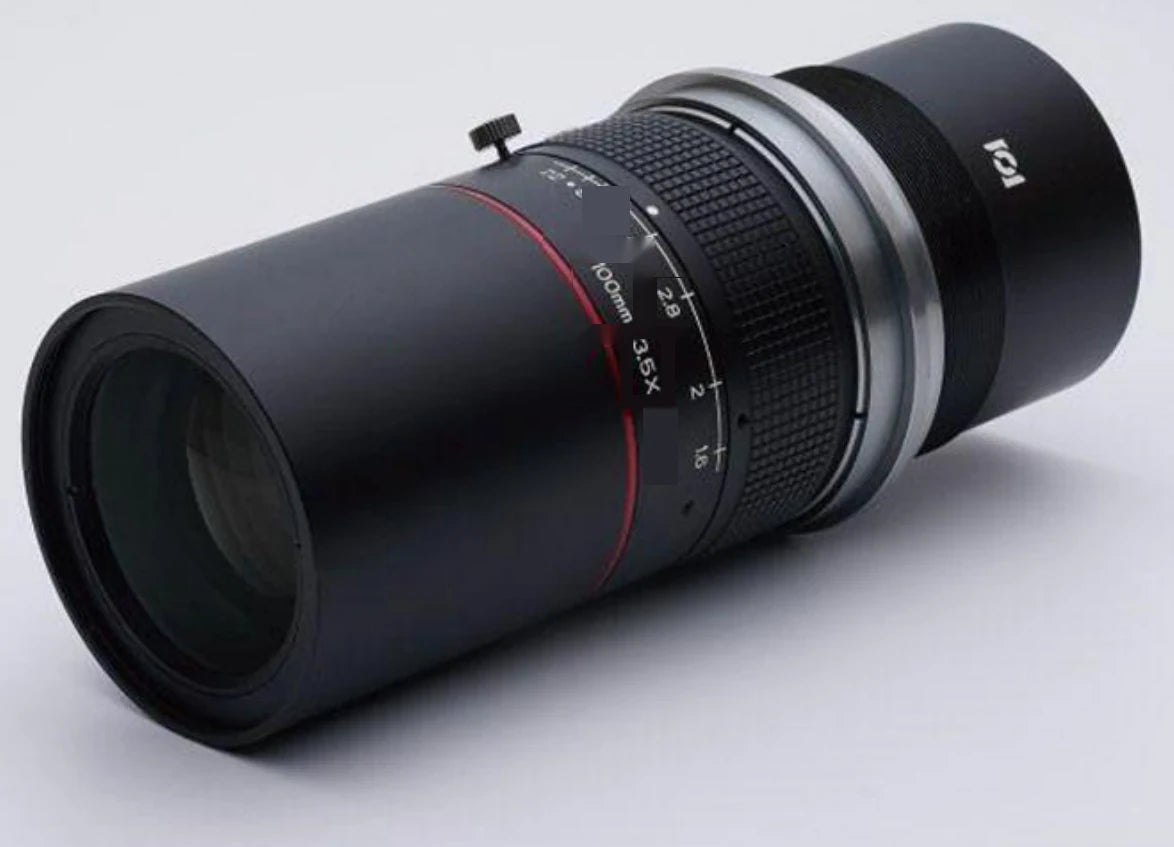

High resolution line scan lens, 100 mm, V-Mount (LS-LSL-0070)
Model LS-LSL-0070
- Focal length100mm
- MountV-mount
- SensorLarge format
- Working distance48.4 mm
- ApertureF1.6-22
$1,779.00
Ships in 2-3 weeks
0.94 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Ultra-high-resolution line scan lens for 16K 5 µ / 3.5 µ line scan cameras, resolution up to 1 µ, distortion below 0.001%, dia. 82 image circle and high uniformity from the centre of the image to the edge; applied to OLED screen detection.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LSL-0070 |
|---|---|
| F/NO | 1.6-22 |
| EFL | 100mm |
| Conjugate distance | 551.79 |
| Flange distance | 394.8 |
Optics
| Focal length | 100mm |
|---|---|
| Distortion | <0.01% |
| Standard magnification | 3.5X |
| Image size (dia.) | dia. 82 |
| Optical distortion | <0.01% |
| Working distance | 48.4 |
| Focal length (mm) | 100 |
| Aperture | F1.6-22 |
Sensor and imaging
| Central resolution | 200lp/mm |
|---|---|
| Sensor format | dia. 82 mm image circle |
Mechanical
| Mount | V-Mount |
|---|---|
| Shipping weight | 0.94 kg |
