Representative photo of this series
Line scan lights
1050 mm linear light source (LS-LSH10501080)
Model LS-LSH10501080
- ColourRed, Green, Blue, White, Infrared, UV
- Emitting width20 mm
- CoolingFan (labelled on the drawings)
- Length1080 mm
$2,069.00
In stock - ships the same business day (2 available, order by 2 PM ET)
3.15 kg shipping weight
Volume pricing, Net 30 or a formal quote?
LED cold light source with no heat radiation, so the temperature of the irradiated product remains almost unchanged and the object is not damaged. Compatible with different UV adhesives, UV inks, UV varnishes and UV paints. Size can be customized.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LSH10501080 |
|---|---|
| Cooling | Fan (labelled on the drawings) |
Light
| Emitting width (mm) | 20 |
|---|---|
| Emitting length (mm) | 1050 |

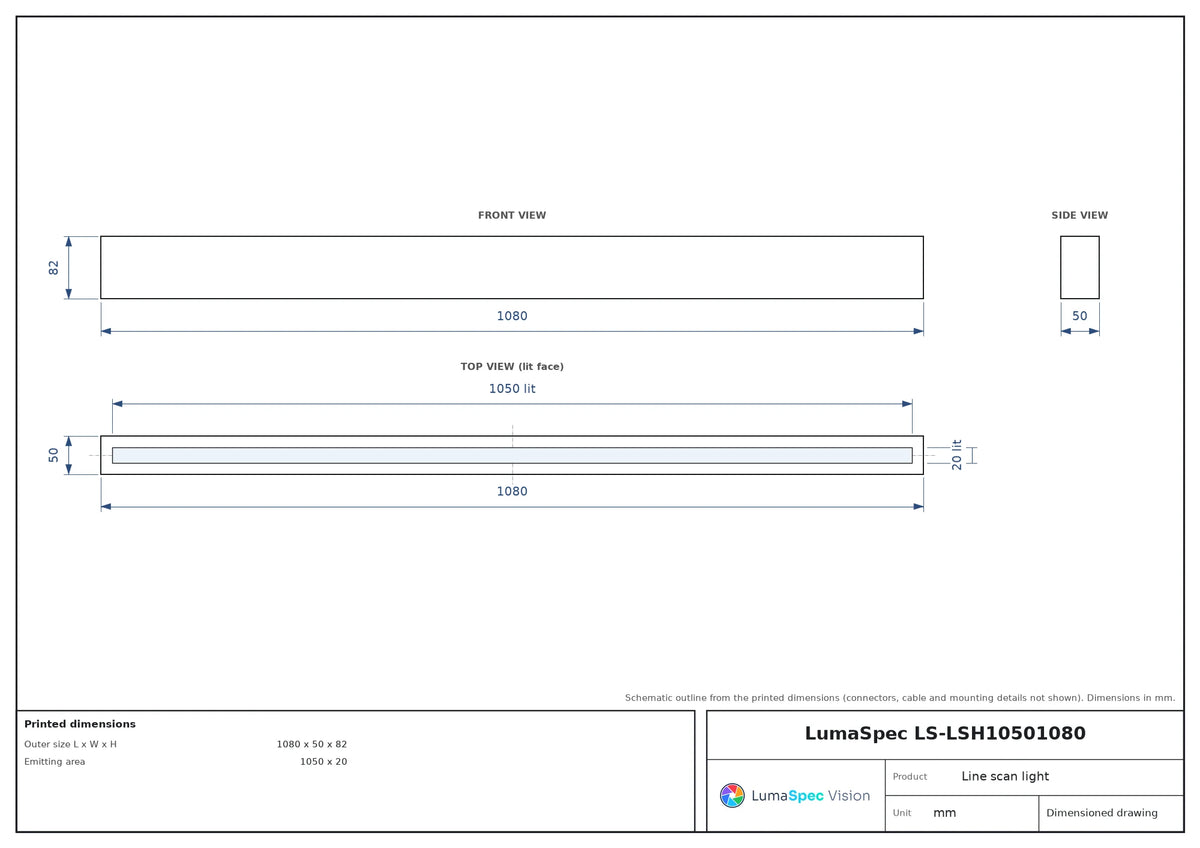

Mechanical
| Length (mm) | 1080 |
|---|---|
| Width (mm) | 50 |
| Height (mm) | 82 |
| Mounting | 8 x M4 threaded, depth 6; 2 x M4 nut mounting slots |
| Shipping weight | 3.15 kg |
Other models in the Linear light source (LSH) series
See all 20 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-LSH100130 | 100 mm | $279.00 | 16 in stock | View |
| LS-LSH200230 | 200 mm | $469.00 | 27 in stock | View |
| LS-LSH250280 | 250 mm | $559.00 | 22 in stock | View |
| LS-LSH300330 | 300 mm | $659.00 | 22 in stock | View |
| LS-LSH350380 | 350 mm | $749.00 | 25 in stock | View |
| LS-LSH400430 | 400 mm | $839.00 | 18 in stock | View |
| LS-LSH500530 | 500 mm | $1,029.00 | 20 in stock | View |
| LS-LSH600630 | 600 mm | $1,219.00 | 21 in stock | View |
| LS-LSH700730 | 700 mm | $1,409.00 | 21 in stock | View |
| LS-LSH720750 | 720 mm | $1,449.00 | 23 in stock | View |
| LS-LSH750780 | 750 mm | $1,509.00 | 20 in stock | View |
| LS-LSH800830 | 800 mm | $1,599.00 | 16 in stock | View |
| LS-LSH850880 | 850 mm | $1,699.00 | 23 in stock | View |
| LS-LSH900930 | 900 mm | $1,789.00 | 26 in stock | View |
| LS-LSH950980 | 950 mm | $1,879.00 | 21 in stock | View |
| LS-LSH10001030 | 1000 mm | $1,979.00 | 17 in stock | View |
| LS-LSH11001130 | 1100 mm | $2,169.00 | 19 in stock | View |
| LS-LSH11501180 | 1150 mm | $2,259.00 | 20 in stock | View |
| LS-LSH12001230 | 1200 mm | $2,359.00 | 25 in stock | View |
