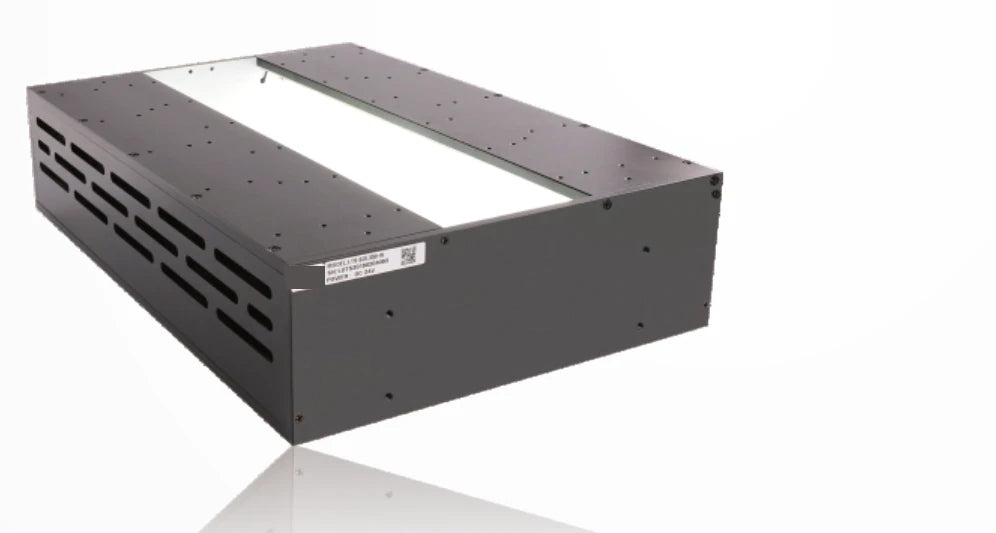

Representative photo of this series
Line scan lights
1000 x 85 mm Tunnel line scan light, fan cooled (LS-LSC-0686)
Model LS-LSC-0686
- ColourRed, Green, Blue, White
- Emitting area1000 x 85 mm
- Voltage24 V DC (LS-LSC-0686: 48 V)
- Power807 W
$3,059.00
In stock - ships the same business day (2 available, order by 2 PM ET)
13.3 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Tunnel line scan light with good parallelism and high luminance in a compact, stable and durable structure. Used for inspecting workpieces that need a uniform surface, together with a line scan camera.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LSC-0686 |
|---|---|
| Cooling | Fan cooling |
| UV / IR | UV & IR light can be customized as required |
| FOV | 1-800 mm |
Optics
| Recommended working distance | 5-200 mm |
|---|
Interfaces and I/O
| Cable | 500 mm (LS-LSC-0686: 1000 mm) |
|---|---|
| Extension cable options | PVC extension cable (flexible, bend and heat resistant, for use inside equipment); high-flexibility extension cable (harder and more abrasion resistant than PVC, for drag-chain production lines) |
Light
| Peak wavelength / colour temperature | Red 620-630 nm, Green 525-530 nm, Blue 465-470 nm, White 6600 K (colour temperature) |
|---|---|
| Emitting length range (mm) | 120-1000 |
| Emitting length (mm) | 1000 |
| Emitting surface (mm) | 1000 x 85 |
Environment and compliance
| Operating environment | Temperature 0-50 °C, humidity 20-85% (non-condensing) |
|---|---|
| Lifespan | 50000 h (to 50% of factory-default luminance) |
Electrical
| Adapted controller | High power constant voltage controller LS-CTL-S03; high power constant current controller LS-CTL-S03 (as printed) |
|---|---|
| Voltage | 24 V DC (LS-LSC-0686: 48 V) |
| Voltage (V) | 48 |
| Power (W) | 807 |

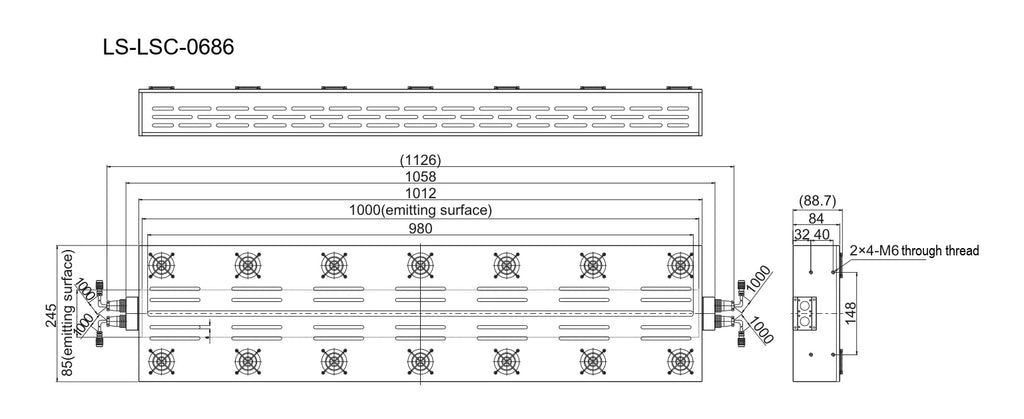

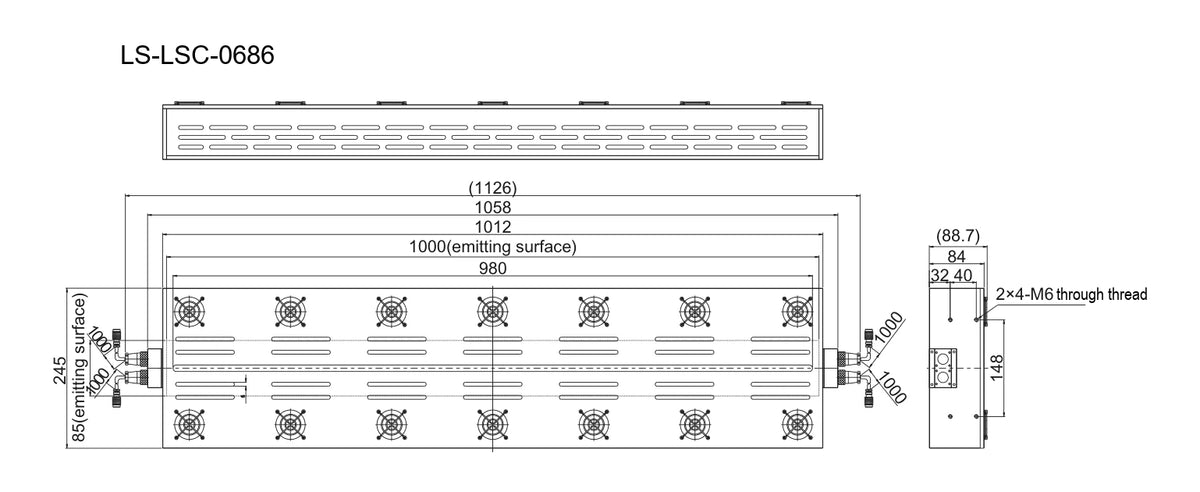

Mechanical
| Height (mm) | 84 (88.7-89 overall) |
|---|---|
| Weight (g) | 11400 |
