Polarized high-power line scan light (series view)

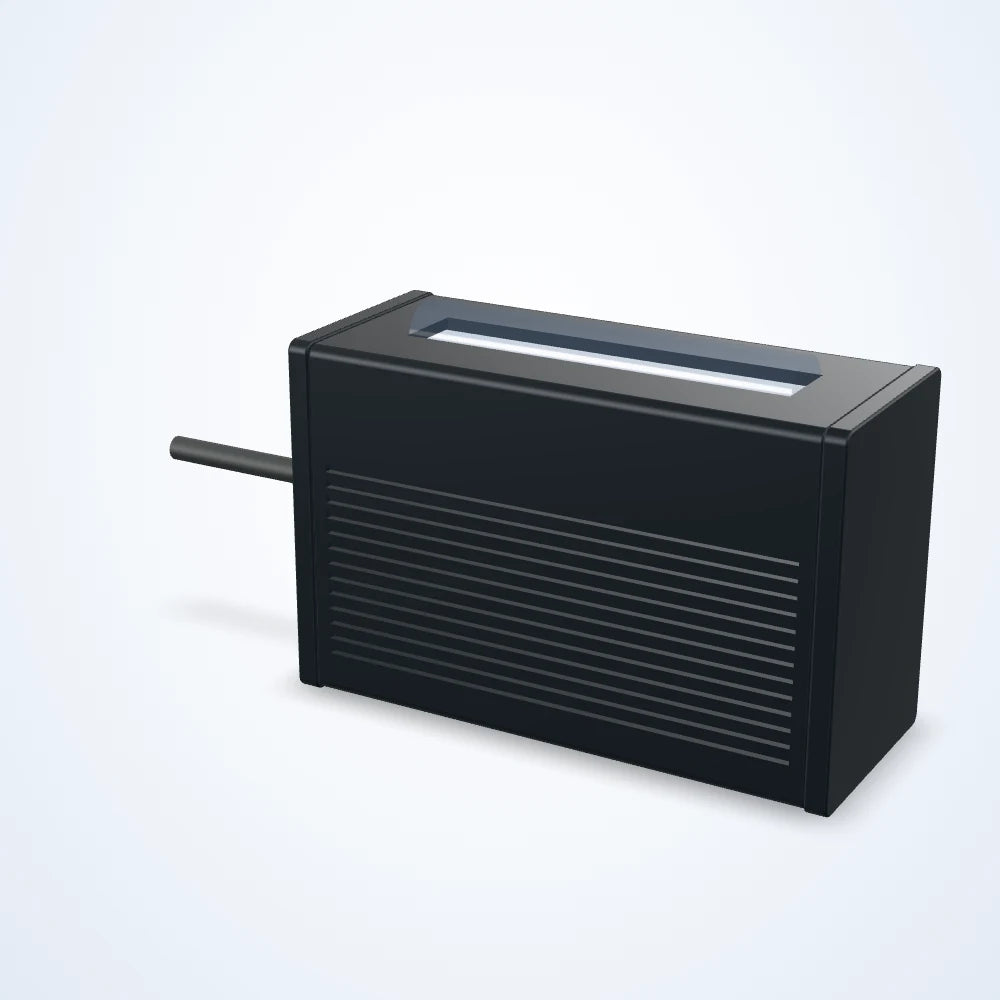

  • Polarized high-power line scan light (series view)

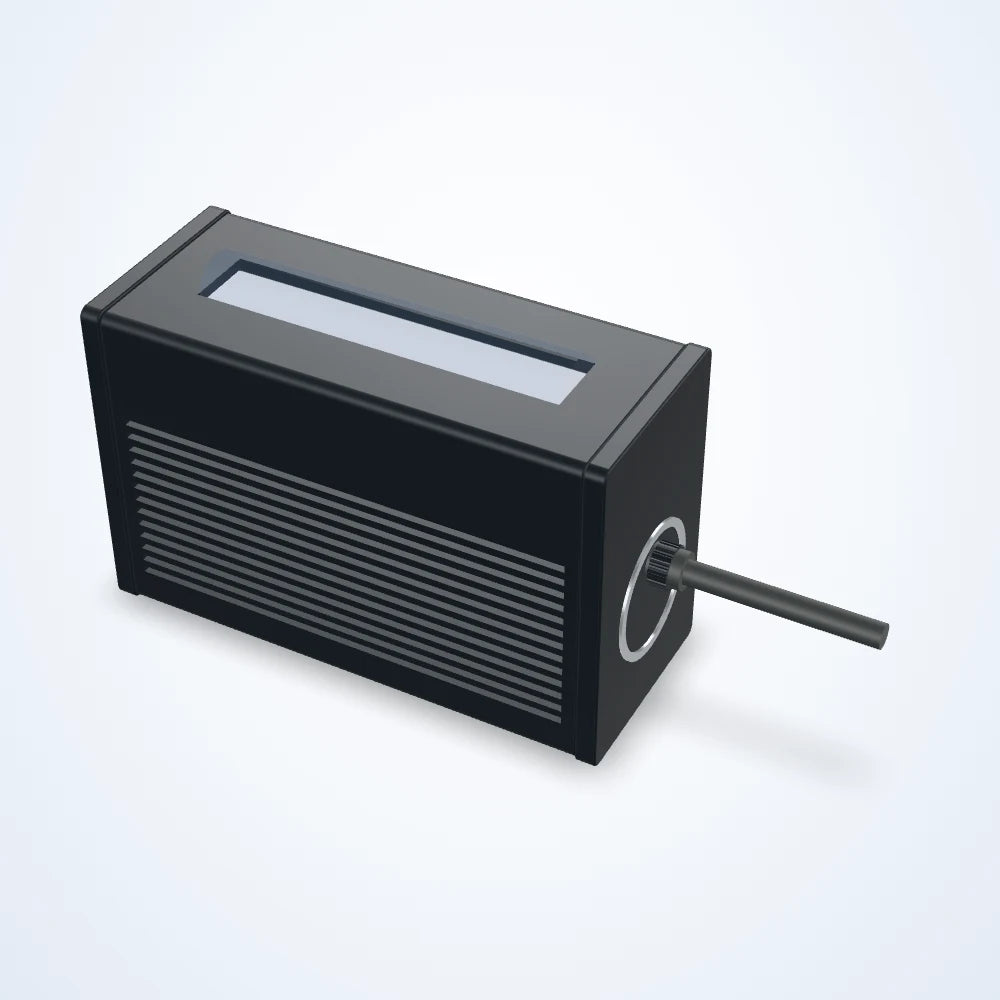

  • Polarized high-power line scan light (series view)

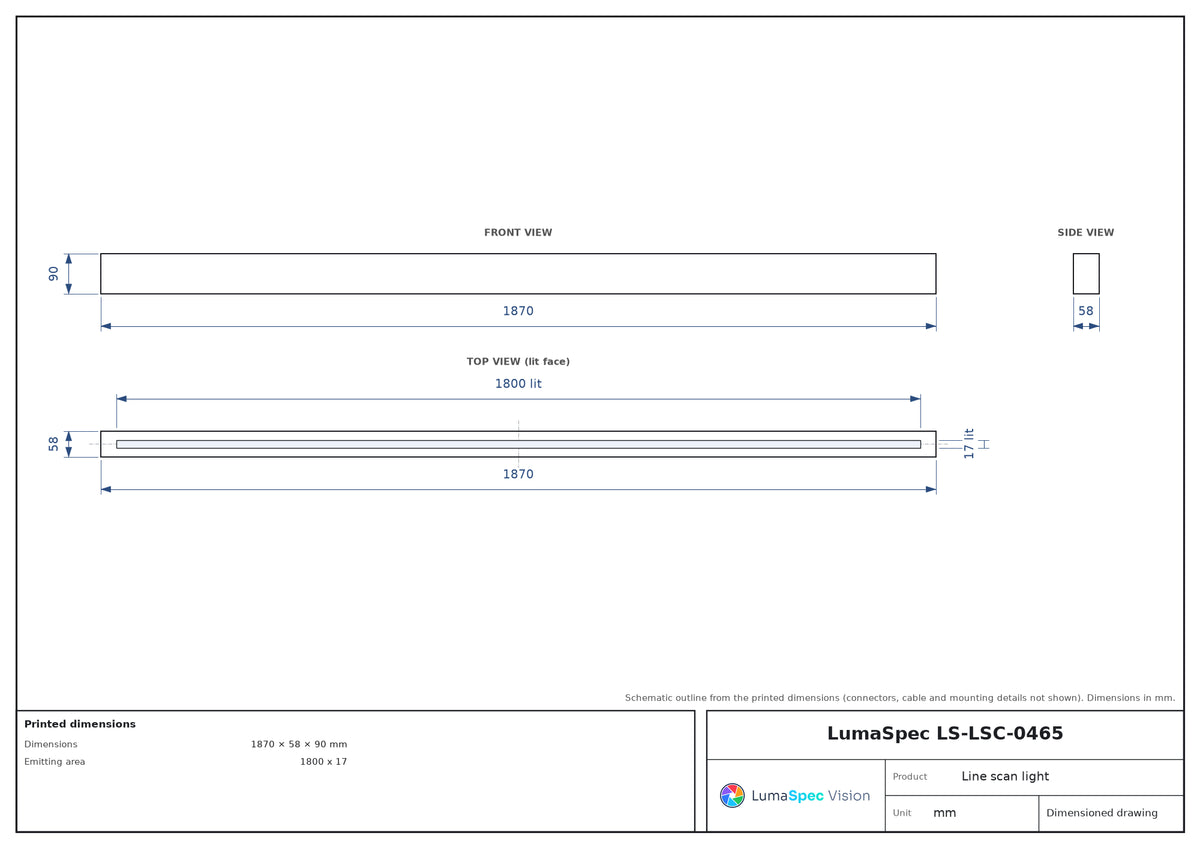

  • 1800 x 17 mm polarized high-power line scan light

Rendered illustration: the actual product may differ in appearance.

Line scan lights

1800 x 17 mm polarized high-power line scan light (LS-LSC-0465)

Model LS-LSC-0465

  • ColourRed, Blue, White, Green, Infrared, UV
  • Emitting area1800 x 17 mm
  • Size1870 × 58 × 90 mm
  • Voltage48 VDC
  • Power518.4 w
$2,838.00

Ships in 3-4 weeks

3.0 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

1800 x 17 mm polarized high-power line scan light (LS-LSC-0465)LS-LSC-0465

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Polarized high-power line scan light for line-scan cameras on moving webs and conveyors. Emitting area 1800 x 17 mm; 48 V DC supply; available in red, blue, white, green, infrared (850 / 940 nm), UV.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-LSC-0465
Service lifeWhite:30,000hrs, Red: 60,000hrs (Depends on the operating environment, not a gurantee)
Pin assignment1: (+), 2: NC, 3: (-)

Interfaces and I/O

ConnectorZHQCN-19M-6H
Cable length0 mm

Light

Emitting area (mm)1800 x 17
Wavelength1:(Light source +), 2: (Light source -), 3:(Fan +), 4:(Fan -), 5:(R +), 6:(R -)

Environment and compliance

Operating environmentTemperature: 0~40 °C Humidity:20% to 85% RH (with no condensation)

Electrical

Supply voltage48 VDC
Power518.4 w

Mechanical

Housing materialAluminum alloy, Resin
Dimensions (mm)1870 × 58 × 90 mm
Shipping weight3.00 kg
