Line scan lights
60 mm C-Shaped Line Scan Light (LS-LSC-0387)
Model LS-LSC-0387-R
- ColourRed, Green, Blue, White, Infrared
- Emitting area60 mm
- Size112.5x48x152 mm
- Power58 W
$339.00
Ships in 2-3 weeks
0.8 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
60 mm C-Shaped Line Scan Light. C-shaped line scan light with a tight arrangement of high-power LEDs and a semicircular emitting surface for a large emitting angle and wide coverage. Fan cooling keeps temperature distribution even.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LSC-0387 |
|---|---|
| WD (mm) | 20-50 |
| Cooling | Fan cooled |
Light
| Emitting area (mm) | 60 |
|---|---|
| Colours | Red, Green, Blue, White, Infrared |
Electrical
| Power R (W) | 50 |
|---|---|
| Power W/G/B (W) | 58 |
Mechanical
| Outer size L x W x H (mm) | 112.5x48x152 |
|---|---|
| Shipping weight (estimated) | 0.80 kg |
Mounting and drawing data

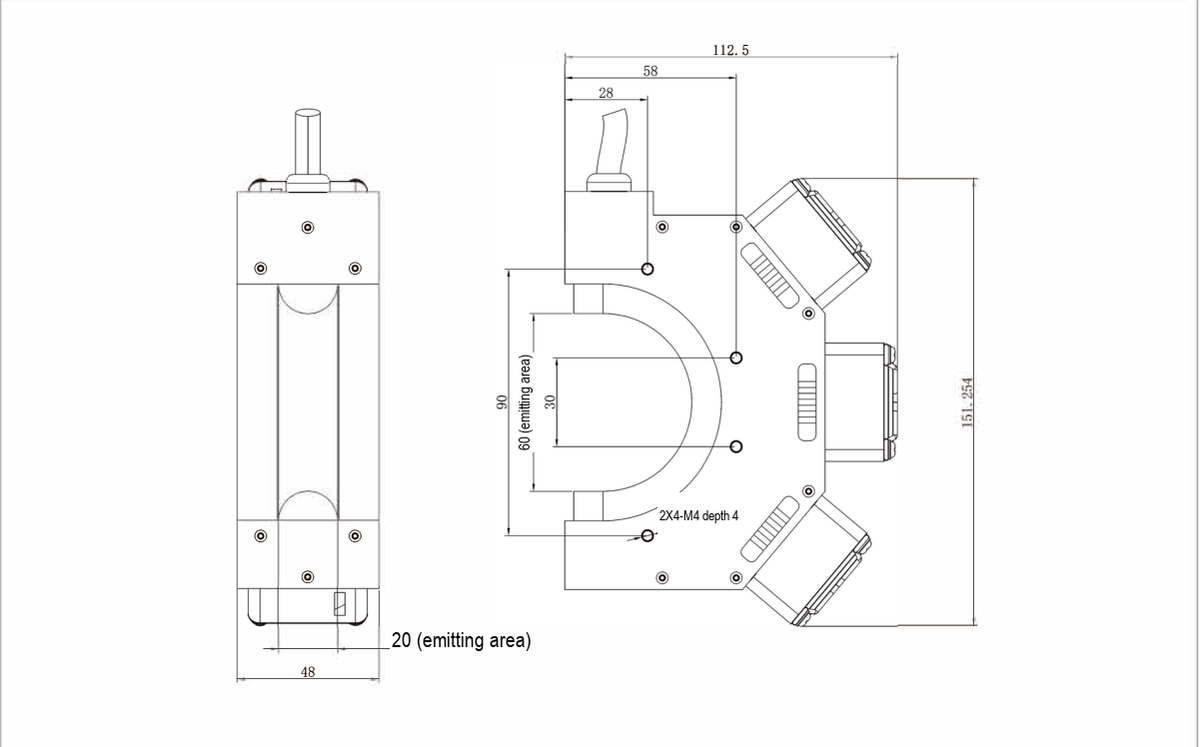

Drawing: 112.5 mm wide (58 / 28 to the hole lines), 48 deep, emitting face 20 wide, C-opening 90 outer / 60 emitting / 30; 2 x 4 M4 holes, 4 mm deep; overall height about 152 mm.
