Rendered illustration: the actual product may differ in appearance.
Line scan lights

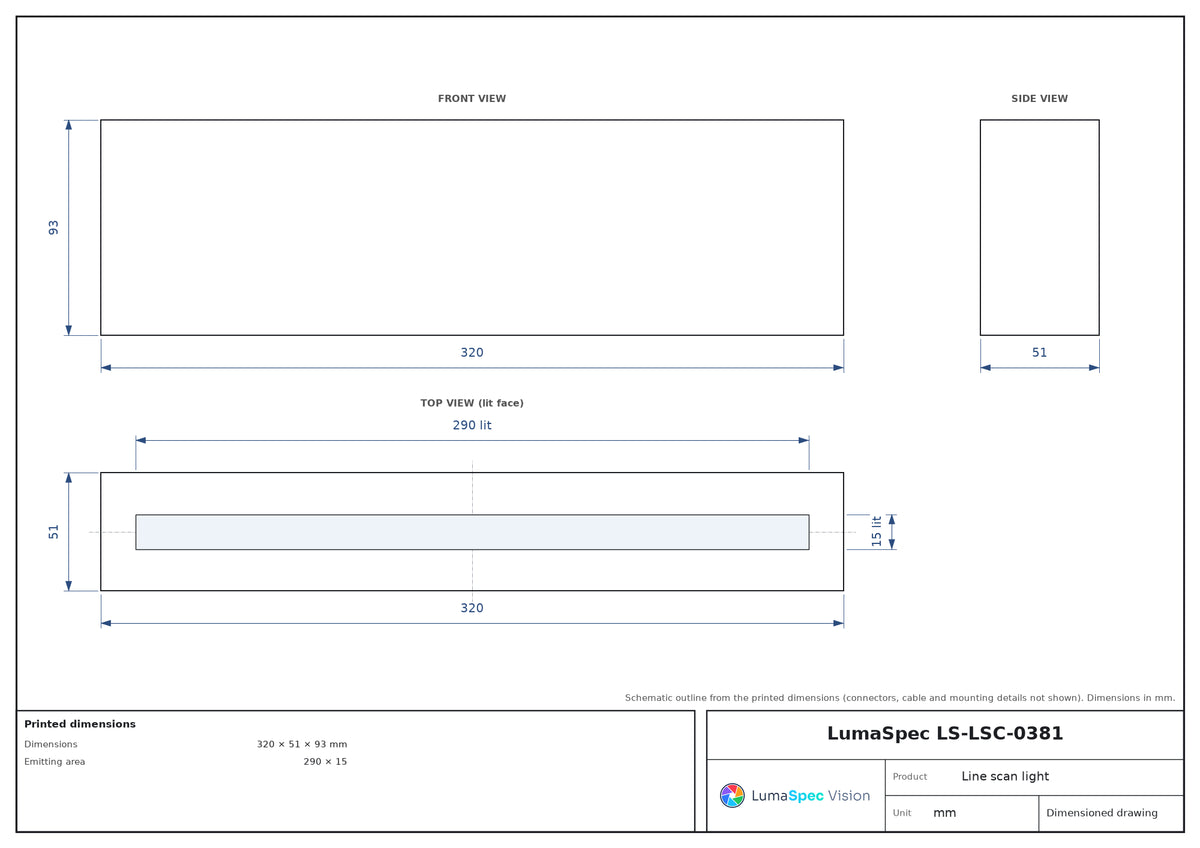

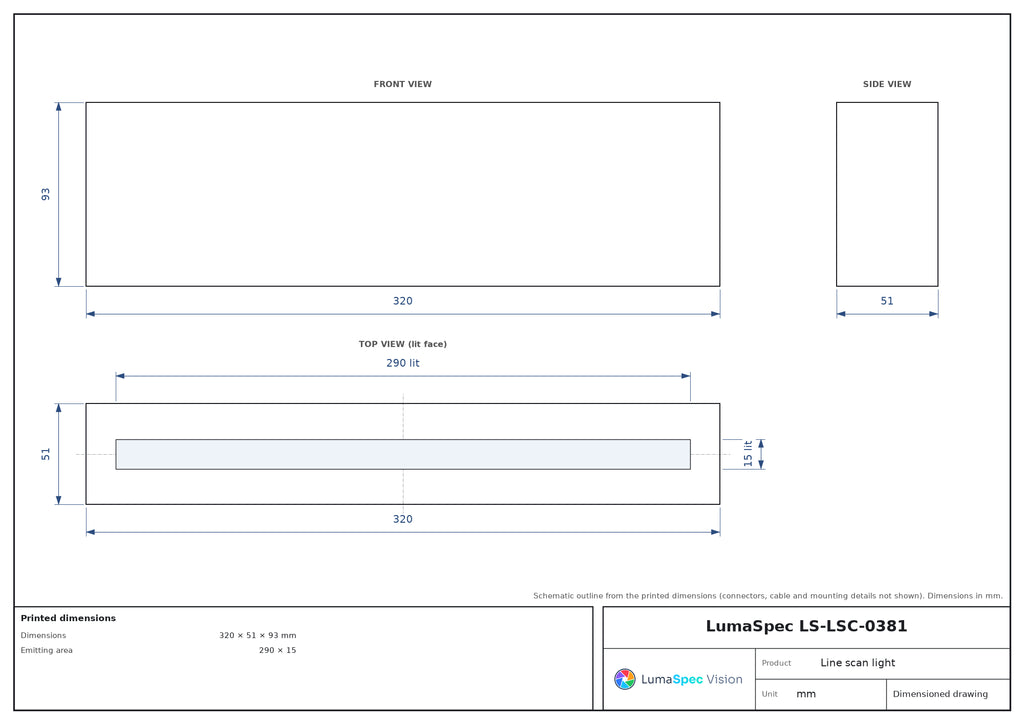

290 x 15 mm coaxial line scan kit (LS-LSC-0381)
Model LS-LSC-0381
- Emitting area290 × 15 mm
- Size320 × 51 × 93 mm
- Voltage48 v
- PowerR: 30.8 / B/W/G: 46.1
$350.00
Ships in 3-4 weeks
1.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Coaxial line scan kit for line-scan cameras on moving webs and conveyors. Emitting area 290 x 15 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LSC-0381 |
|---|---|
| Service life | White:30,000hrs Red: 60,000hrs (Depends on the operating environment, not a gurantee) |
Light
| Emitting area (mm) | 290 × 15 |
|---|
Environment and compliance
| Operating environment | Temperature: 0~40 °C Humidity:20% to 85% RH (with no condensation) |
|---|
Electrical
| Power | R: 30.8 / B/W/G: 46.1 |
|---|---|
| Supply voltage | 48 v |
Mechanical
| Dimensions (mm) | 320 × 51 × 93 mm |
|---|---|
| Housing material | Aluminum alloy, Resin |
| Shipping weight | 1.00 kg |
Other models in the Coaxial line scan kits (LS-LSC-S42) series
See all 9 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-LSC-0378 | 100 x 17 mm | $320.00 | Ships in 3-4 weeks | View |
| LS-LSC-0379 | 140 x 15 mm | $320.00 | Ships in 3-4 weeks | View |
| LS-LSC-0380 | 200 x 17 mm | $350.00 | Ships in 3-4 weeks | View |
| LS-LSC-0382 | 300 x 17 mm | $375.00 | Ships in 3-4 weeks | View |
| LS-LSC-0384 | 440 x 15 mm | $400.00 | Ships in 3-4 weeks | View |
| LS-LSC-0383 | 400 x 17 mm | $450.00 | Ships in 3-4 weeks | View |
| LS-LSC-0385 | 500 x 17 mm | $500.00 | Ships in 3-4 weeks | View |
| LS-LSC-0386 | 600 x 17 mm | $550.00 | Ships in 3-4 weeks | View |
