Line scan lights
300 mm Mini Line Scan Light (LS-LSC-0369)
Model LS-LSC-0369
- ColourRed, Green, Blue, White
- Emitting area300x10 mm
- Size310x21x34 mm
- Voltage24 V
$629.00
Ships in 2-3 weeks
0.5 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
300 mm Mini Line Scan Light. Compact line scan light (printed as 'Mine Line Scan Light') whose high-power LEDs and condenser structure give high brightness. Its small size suits installations with limited room.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LSC-0369 |
|---|---|
| Outer cross-section WxH | 21x34 mm |
| Lead | 500 mm (drawings) |
Light
| Emitting area (mm) | 300x10 |
|---|---|
| Colours | Red, Green, Blue, White |
| Emitting width | 10 mm (emitting face 10.6 on drawings) |
Electrical
| Voltage (V) | 24 |
|---|---|
| Power R (W) | 12 |
| Power G/B/W (W) | 15 |
Mechanical
| Outer size L x W x H (mm) | 310x21x34 |
|---|---|
| Mounting | Φ3.5 mounting holes on 37.5 mm pitch (100 mm pitch on LS-LSC-0377), 3.7 from base |
| Shipping weight (estimated) | 0.50 kg |
Photo shows a representative model of this series; see the specifications for this model.
Mounting and drawing data

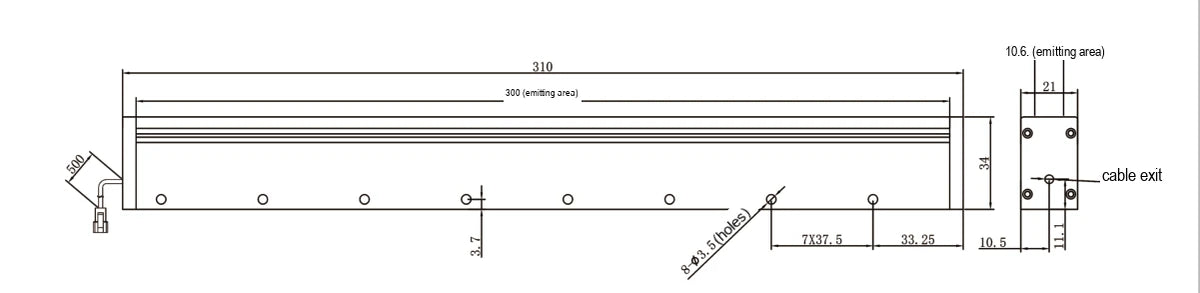

Drawing LS-LSC-0369: 310 long; 8-Φ3.5 mounting holes, 7X37.5 pitch, 33.25 from end; 500 mm lead
