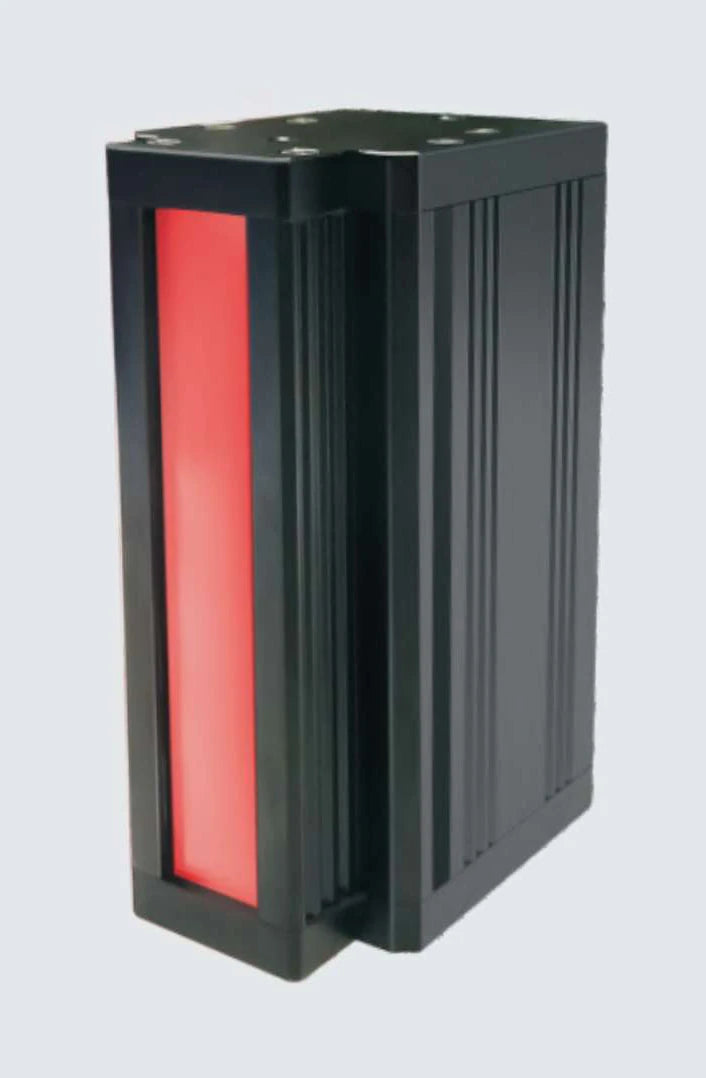

Representative photo of this series. Colour shown for illustration; the actual product may differ

Line scan lights

200 x 18 mm Line light, power 20 W (LS-LSC-0331)

Model LS-LSC-0331

ColourRed, Green, Blue, White
Emitting areaL 200 x W 18
Power20 W
Cable length500 mm

$729.00

Ships in 2-3 weeks

0.8 kg shipping weight

Color Red Green Blue White

Volume pricing, Net 30 terms or a formal quote for purchasing?

Line light using high-power, high-brightness LEDs and a special lens to form a bright, highly uniform light band; the illuminated width can be designed to suit the inspected feature. Length up to 3 m; the best partner for line scan cameras.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-LSC-0331
Expected life	Red, white, blue and white (as printed): 20000 h continuous, decays to 60% (typical one-year decay 10-20%)
Support	1 year of free standard technical support; can be customised to the inspected feature, working distance, illumination angle and field of view

Interfaces and I/O

Cable length (mm)	500

Light

Emitting area (mm)	L 200 x W 18
Wavelength red	620-630 nm
Wavelength green	525 nm
Wavelength blue	470 nm
Colour temperature white	5000-8000 K

Environment and compliance

Operating environment	Ambient about 22 °C, operating temperature within 25 °C

Electrical

Power (W)	20
Recommended controllers	LS-CTL-0140, -2T / LS-CTL-0142 / LS-CTL-0333, -4T, -6T, -8T / LS-CTL-0526, -4T

Mechanical

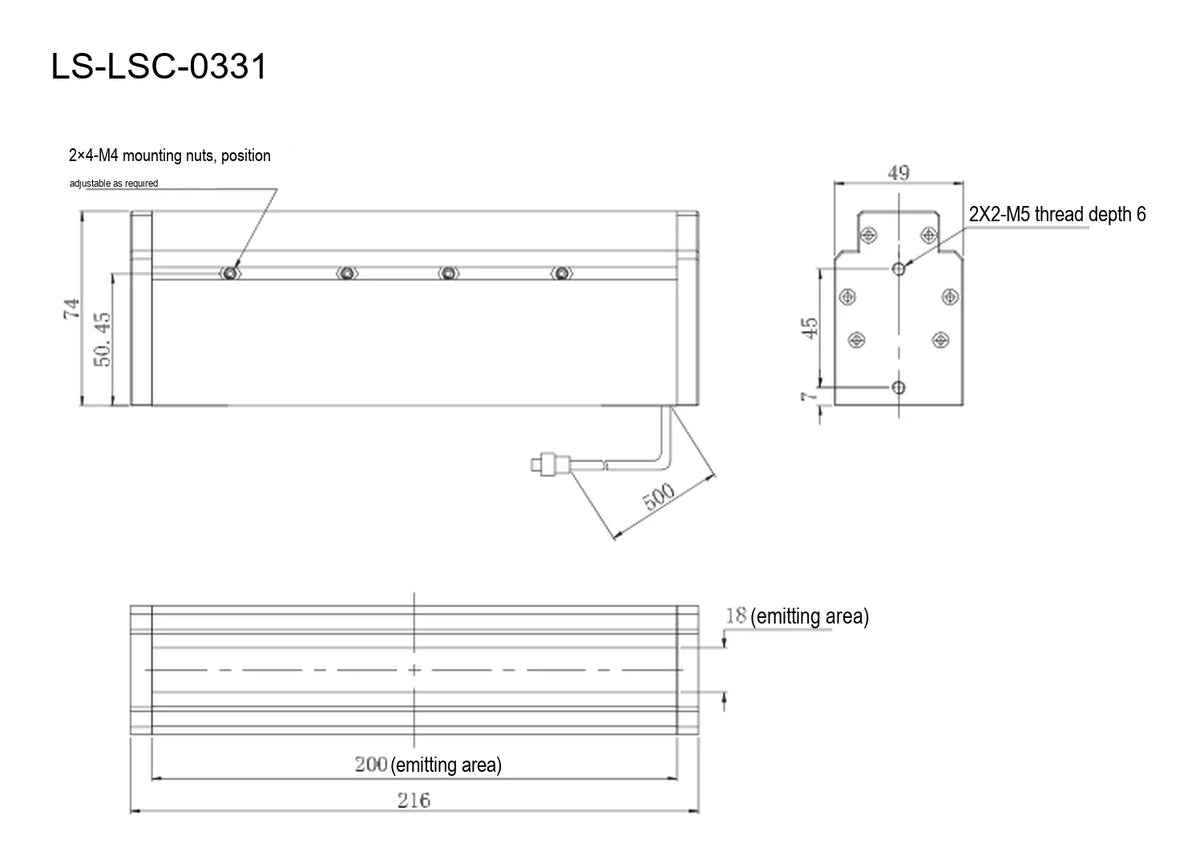

Mounting	2 x 4-M4 mounting nuts (position adjustable), 2x2-M5 threads depth 6 (per drawing)
Shipping weight	0.80 kg

Other models in the Line light (LS-LSC-S36) series

See all 10 models

Model	Size / key data	Price	Availability	Link
LS-LSC-0329	100 x 18 mm	$459.00	Ships in 2-3 weeks	View
LS-LSC-0330	100 x 18 mm	$459.00	Ships in 2-3 weeks	View
LS-LSC-0332	200 x 18 mm	$729.00	Ships in 2-3 weeks	View
LS-LSC-0333	300 x 18 mm	$999.00	Ships in 2-3 weeks	View
LS-LSC-0334	300 x 18 mm	$999.00	Ships in 2-3 weeks	View
LS-LSC-0335	400 x 18 mm	$1,269.00	Ships in 2-3 weeks	View
LS-LSC-0336	400 x 18 mm	$1,269.00	Ships in 2-3 weeks	View
LS-LSC-0337	500 x 18 mm	$1,539.00	Ships in 2-3 weeks	View
LS-LSC-0338	500 x 18 mm	$1,539.00	Ships in 2-3 weeks	View
