Line scan lights
100 x 18 mm Line light, power 10 W (LS-LSC-0329)
Model LS-LSC-0329
- ColourRed, Green, Blue, White
- Emitting areaL 100 x W 18
- Power10 W
- Cable length500 mm
$459.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.55 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Line light using high-power, high-brightness LEDs and a special lens to form a bright, highly uniform light band; the illuminated width can be designed to suit the inspected feature. Length up to 3 m; the best partner for line scan cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LSC-0329 |
|---|---|
| Expected life | Red, white, blue and white (as printed): 20000 h continuous, decays to 60% (typical one-year decay 10-20%) |
| Support | 1 year of free standard technical support; can be customised to the inspected feature, working distance, illumination angle and field of view |
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Light
| Emitting area (mm) | L 100 x W 18 |
|---|---|
| Wavelength red | 620-630 nm |
| Wavelength green | 525 nm |
| Wavelength blue | 470 nm |
| Colour temperature white | 5000-8000 K |
Environment and compliance
| Operating environment | Ambient about 22 °C, operating temperature within 25 °C |
|---|
Electrical
| Power (W) | 10 |
|---|---|
| Recommended controllers | LS-CTL-0140, -2T / LS-CTL-0142 / LS-CTL-0333, -4T, -6T, -8T / LS-CTL-0526, -4T |
Mechanical

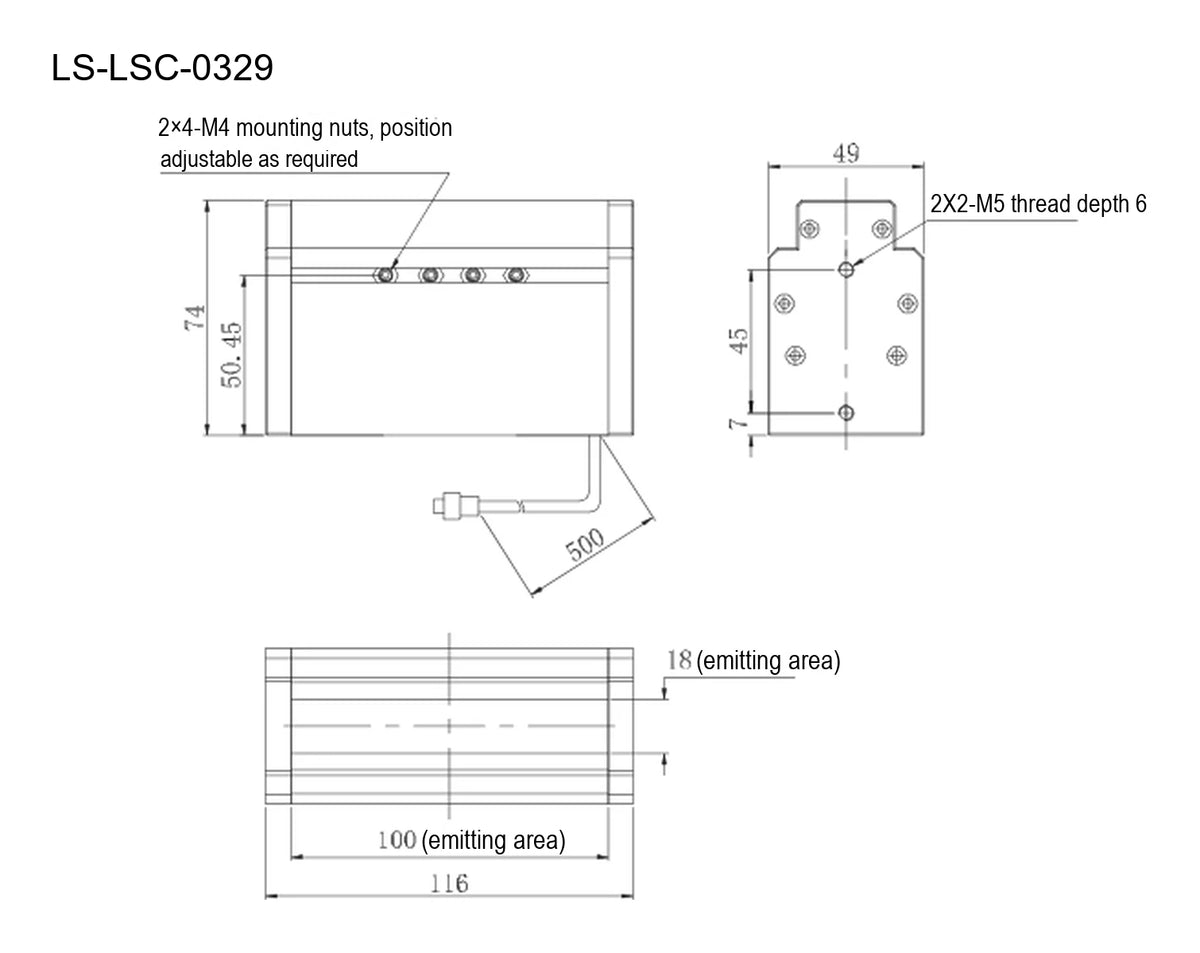

| Mounting | 2 x 4-M4 mounting nuts (position adjustable), 2x2-M5 threads depth 6 (per drawing) |
|---|---|
| Shipping weight | 0.55 kg |
Other models in the Line light (LS-LSC-S36) series
See all 10 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-LSC-0330 | 100 x 18 mm | $459.00 | 14 in stock | View |
| LS-LSC-0331 | 200 x 18 mm | $729.00 | 14 in stock | View |
| LS-LSC-0332 | 200 x 18 mm | $729.00 | 14 in stock | View |
| LS-LSC-0333 | 300 x 18 mm | $999.00 | 11 in stock | View |
| LS-LSC-0334 | 300 x 18 mm | $999.00 | 16 in stock | View |
| LS-LSC-0335 | 400 x 18 mm | $1,269.00 | 12 in stock | View |
| LS-LSC-0336 | 400 x 18 mm | $1,269.00 | 15 in stock | View |
| LS-LSC-0337 | 500 x 18 mm | $1,539.00 | 15 in stock | View |
| LS-LSC-0338 | 500 x 18 mm | $1,539.00 | 12 in stock | View |
