Line scan lights

200 mm Coaxial Line Scan Light (LS-LSC-0313)

Model LS-LSC-0313

ColourRed, Green, Blue, White
Emitting area200x20 mm
Size230x50x134.3 mm
Voltage48 V

$999.00

Ships in 2-3 weeks

1.15 kg shipping weight

Color Red Green Blue White

Volume pricing, Net 30 terms or a formal quote for purchasing?

200 mm Coaxial Line Scan Light. High-speed, large-format, high-brightness coaxial line illumination with a high-efficiency optical structure. Highly directional light reduces divergence and suits both glossy and matte workpieces.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-LSC-0313

Light

Emitting area (mm)	200x20
Colours	Red, Green, Blue, White
Emitting width	20 mm

Electrical

Voltage (V)	48
Power R (W)	50
Power G/B/W (W)	58

Mechanical

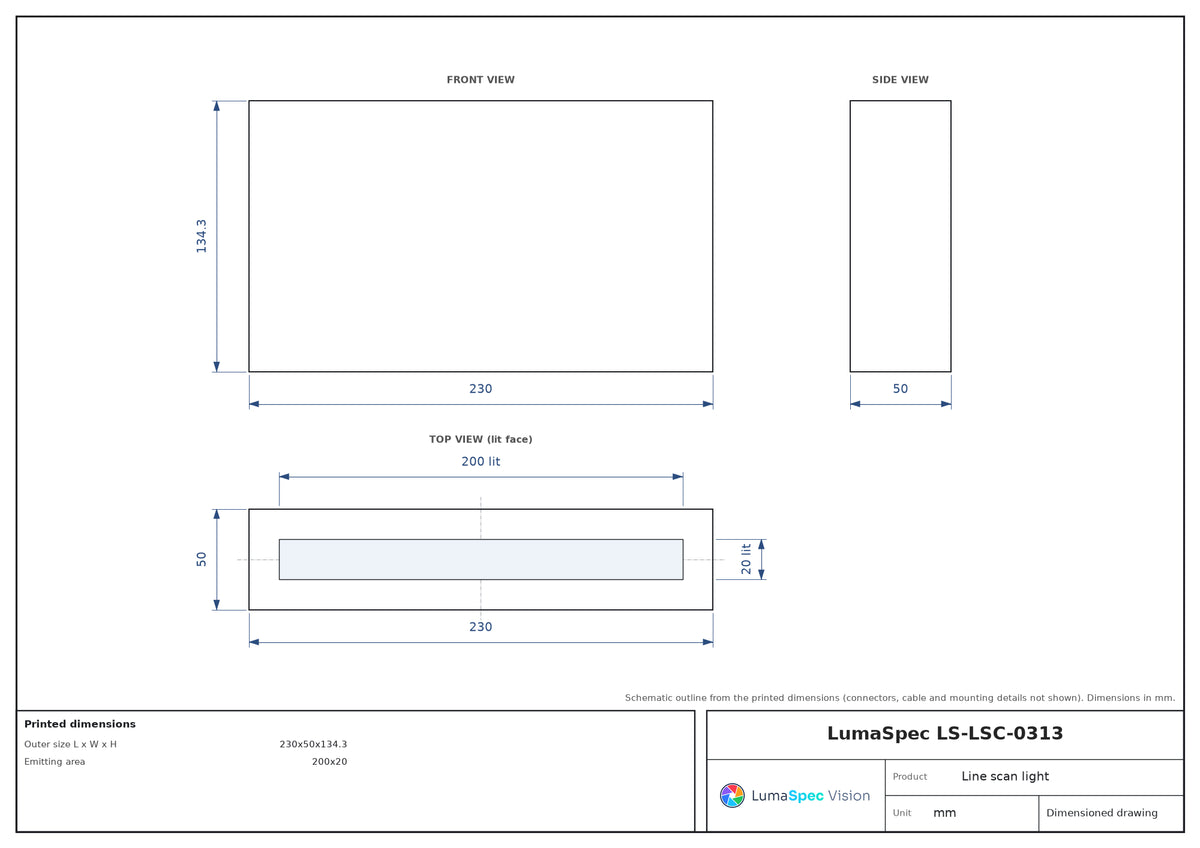

Outer size L x W x H (mm)	230x50x134.3
Outer width	50 mm
Mounting	2X4-M4, 10 deep on end face (holes 28 apart)
Shipping weight (estimated)	1.15 kg

Other models in the Coaxial line scan light (LS-LSC-S33) series

See all 9 models

Model	Size / key data	Price	Availability	Link
LS-LSC-0311	100 mm	$619.00	Ships in 2-3 weeks	View
LS-LSC-0312	150 mm	$809.00	Ships in 2-3 weeks	View
LS-LSC-0314	250 mm	$1,189.00	Ships in 2-3 weeks	View
LS-LSC-0315	300 mm	$1,379.00	Ships in 2-3 weeks	View
LS-LSC-0316	400 mm	$1,749.00	Ships in 2-3 weeks	View
LS-LSC-0317	600 mm	$2,509.00	Ships in 2-3 weeks	View
LS-LSC-0318	700 mm	$2,889.00	Ships in 2-3 weeks	View
LS-LSC-0319	900 mm	$3,639.00	Ships in 2-3 weeks	View
