Representative photo of this series
Line scan lights
784 mm Ultra bright line scan light, fan cooled (LS-LSC-0172)
Model LS-LSC-0172-R
- ColourRed, Green, Blue, White
- SizeL800xW50xH145.46(mm)
- Voltage24 V / 48 V DC (by length)
- Power480 W
Ships in 2-3 weeks
6.6 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
LS-LSC-0172: dimension L800xW50xH145.46(mm), power 480 W, voltage 48 V.
Ultra bright line scan light whose light outlet luminance can reach 2,000,000 lux, with a special heat-dissipation structure and an optical film on the standard model to improve uniformity. Offered in standard, high-luminance (-N) and high-uniformity (-F) types.
- Tracked worldwide shippingTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LSC-0172 |
|---|---|
| Cooling | Fan cooling |
| Cross-section (mm) | 50 W x 107 H body; 145.46 H overall |
| UV / IR | UV & IR light can be customized as required |
| FOV | 1-2700 mm |
| Note | UV & IR light can be customized as required. |
| Variants | standard (no suffix) / -N high luminance (condensing) / -F high uniformity |
| Remark | Max 3 m customized |
Optics
| Recommended working distance | 10-500 mm |
|---|
Interfaces and I/O
| Cable | 3000 mm |
|---|---|
| Extension cable options | PVC extension cable (flexible, bend and heat resistant, for use inside equipment); high-flexibility extension cable (harder and more abrasion resistant than PVC, for drag-chain production lines) |
| Cable polarity | 1: +, 2: -, 3: FAN+, 4: FAN- |
Light
| Peak wavelength / colour temperature | Red 620-630 nm, Green 525-530 nm, Blue 465-470 nm, White 6600 K (colour temperature) |
|---|---|
| Emitting width (mm) | 24 |
| Emitting length range (mm) | 84-2984 |
| Emitting length B (mm) | 784 |
| LED colour | R(red)/W(white) |
Environment and compliance
| Operating environment | Temperature 0-50 °C, humidity 20-85% (non-condensing) |
|---|---|
| Lifespan | 50000 h (to 50% of factory-default luminance) |
Electrical
| Voltage | 24 V / 48 V DC (by length) |
|---|---|
| Adapted controller | High power constant current controller LS-CTL-S03; high power constant voltage controller LS-CTL-S57 |
| Voltage (V) | 48 |
| Power (W) | 480 |
| Power | 480 W |
| Input voltage | DC 48 V (max) |
Mechanical
| Mounting | 4-M5 depth 6; mounting plate with M3/M5 screws and nuts in screw groove |
|---|---|
| Installation | 1) end face locked to the device through the mounting plate by M3 screws; 2) on the flank, M3 and M5 screws go through the mounting plate into M3/M5 nuts in the screw groove |
| Overall length A (mm) | 800 |
| Weight (g) | 5605 |
| Dimension | L800xW50xH145.46(mm) |
| Mounting holes | 4-M5 depth 6 |
Engineering data
Drive and fit the LS-LSC-0172
Worked out from the printed voltage, power and dimensions: what the light draws and what it needs from a controller.
Mounting and installation
| Mounting holes | 4 × M56 mm deep |
|---|---|
| Mounting | T-slot / nut channel · Mounting plateSlots take M3 / M5 nuts |
| Cable | 3 m |

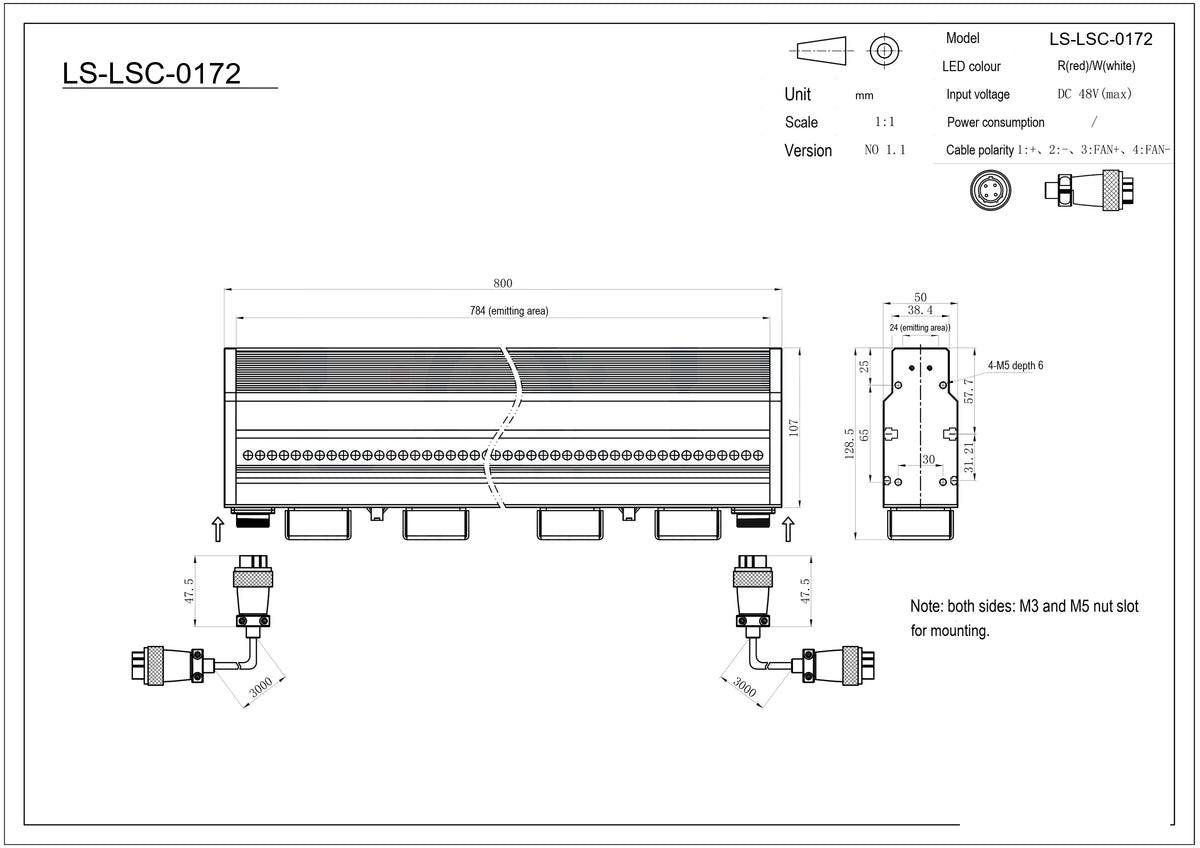

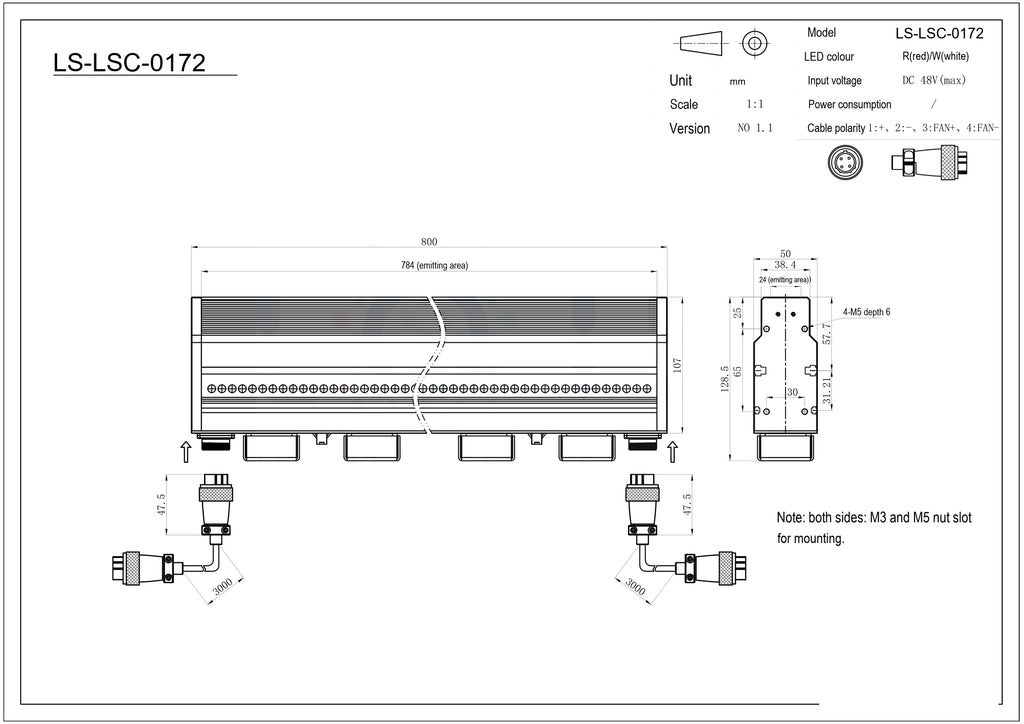

As printed in this model's specifications and dimension drawing. Check the drawing in Downloads before you drill a fixture.
Compatible parts
Fits with this part
Checked with the configurator's fit rules: lens mount and sensor coverage, supply voltage, power per channel and connector.
Controllers for this light
480 W per channel at 24 V for this 480 W light
High power digital controller (DCS2, network option), 2 ch, 1000 W
LS-CTL-0267
- Channels 2
- Output Constant voltage 24 V
$1,249.00
Ships in 2-3 weeks
500 W per channel at 24 V for this 480 W light
Analog constant-voltage light controller, 60 W, 4-channel SMR-03V-BC connector
LS-CTL-0119
- Output 24 VDC
- Input 100 ~ 240 VAC, 50/60 Hz
$189.00
Ships in 2-3 weeks
Same 24 V supply
Digital Light Controller, 6 channel, 90 W/24 V
LS-CTL-0291
- Output 24 VDC
- Input 24 VDC
$229.00
Ships in 2-3 weeks
Same 24 V supply
Digital controller, 8 ch, 2.5 A total output
LS-CTL-0353
- Channels 8
- Output 16-24 V
$429.00
Ships in 2-3 weeks
Same 24 V supply
Same 24 V supply
Application studies
Applications for this type of part
Real camera images from lighting and optics application tests, with the parts of each setup and why they were chosen.
Set up with the LS-LSC-0168, a model of this series
Metal parts and machining
Scratch contrast on a machined cylinder
A curved surface needs a tested angular coverage plan.Proposed light housing (spec)440 × 50 × 117.13 mmExplore the study
Set up with the LS-LSC-0167, a model of this series
Glass, displays and optics
Three line-light trials on display glass
Choose a lighting direction on your screen before comparing light output.Proposed light housing (spec)220 × 53 × 121.5 mmExplore the study
Other models in the Ultra bright line scan light, fan cooled (LS-LSC-S18) series
See all 10 models| Model | Size | Power | Price | Availability | Link |
|---|---|---|---|---|---|
| LS-LSC-0172This model | L800xW50xH145.46(mm) | 480 W | $2,379.00 | Ships in 2-3 weeks | |
| LS-LSC-0165 | L100xW50xH145.46(mm) | 48 W | $429.00 | Ships in 2-3 weeks | View |
| LS-LSC-0166 | L200xW50xH145.46(mm) | 144 W | $709.00 | Ships in 2-3 weeks | View |
| LS-LSC-0167 | L300xW50xH145.46(mm) | 216 W | $989.00 | Ships in 2-3 weeks | View |
| LS-LSC-0168 | L400xW50xH145.46(mm) | 288 W | $1,269.00 | Ships in 2-3 weeks | View |
| LS-LSC-0169 | L500xW50xH145.46(mm) | 336 W | $1,549.00 | Ships in 2-3 weeks | View |
| LS-LSC-0170 | L600xW50xH145.46(mm) | 384 W | $1,829.00 | Ships in 2-3 weeks | View |
| LS-LSC-0171 | L700xW50xH145.46(mm) | 432 W | $2,099.00 | Ships in 2-3 weeks | View |
| LS-LSC-0173 | L900xW50xH145.46(mm) | 576 W | $2,659.00 | Ships in 2-3 weeks | View |
| LS-LSC-0174 | L1000xW50xH145.46(mm) | 576 W | $2,939.00 | Ships in 2-3 weeks | View |
