Coaxial line scan light, 500 x 58 x 168.5 mm (LS-LSC-0106)
  • Coaxial line scan light, 500 x 58 x 168.5 mm (LS-LSC-0106)

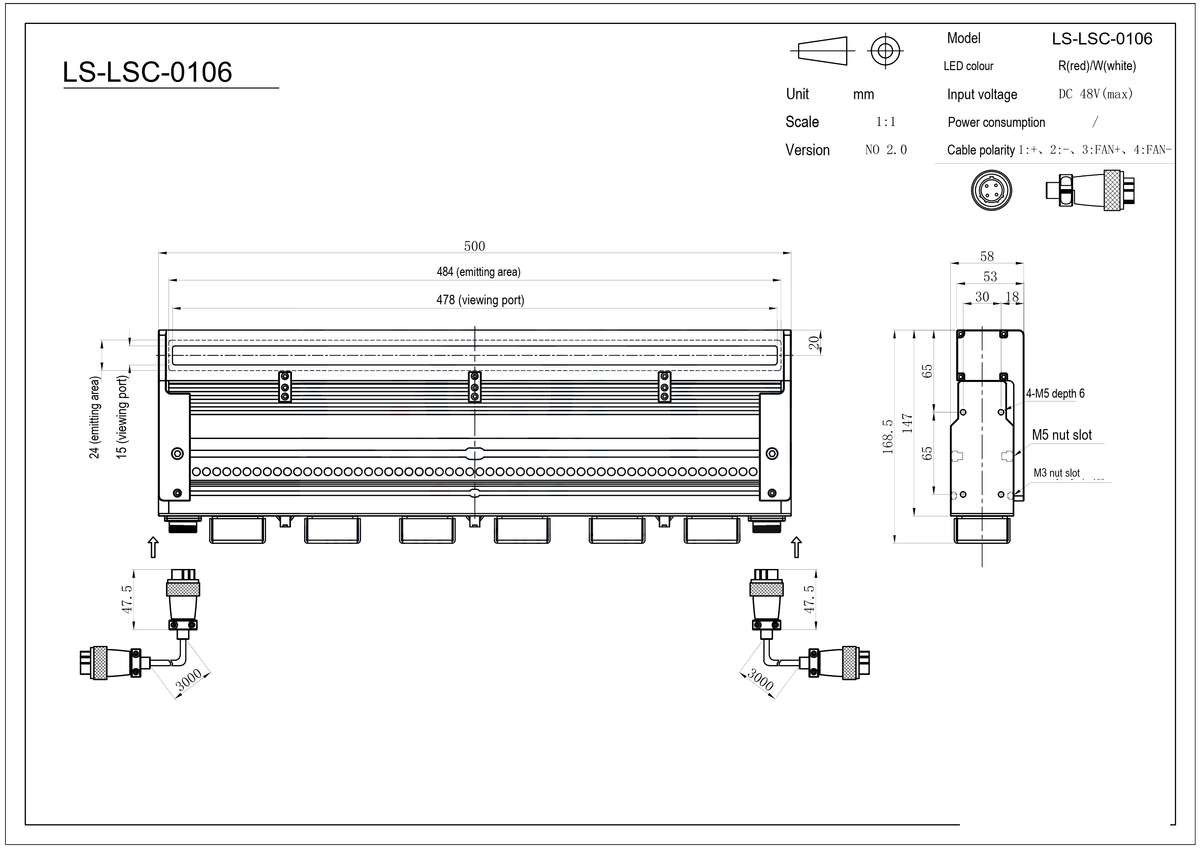

  • LS-LSC-0106 dimensions (mm)

Representative photo of this series

Line scan lights

Coaxial line scan light, 500 x 58 x 168.5 mm (LS-LSC-0106)

Model LS-LSC-0106-R

  • ColourRed, Blue, Green, White
  • Emitting area484 x 24 mm
  • SizeL500xW58xH168.5(mm)
  • Voltage24 V
  • Power288 W
$1,559.00

Ships in 2-3 weeks

2.65 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Coaxial line scan light, 500 x 58 x 168.5 mm (LS-LSC-0106)LS-LSC-0106-R

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

LS-LSC-0106: dimension L500xW58xH168.5(mm), emitting surface 484 x 24 mm, power 288 W.

Special cylindrical condenser lens is adopted to gather high brightness LEDs into a high brightness linear light; optimal uniform light for shiny and reflective surfaces.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-LSC-0106
NoteUV & IR light can be customized as required.
Viewport (camera hole)478 x 15 mm

Interfaces and I/O

Cable polarity1: +, 2: -, 3: FAN+, 4: FAN-
Cable (mm)3000 (drawing)

Light

LED colourR(red)/W(white)
Emitting surface (mm)484 x 24

Electrical

Voltage24 V
Power288 W

Mechanical

DimensionL500xW58xH168.5(mm)
Mounting holes4-M5 depth 6
Shipping weight2.65 kg

Engineering data

Drive and fit the LS-LSC-0106

Worked out from the printed voltage, power and dimensions: what the light draws and what it needs from a controller.

Supply24 V DC
Current at 24 V12000 mACalculated: printed power ÷ supply voltage
Controller channel it needs24 V constant voltage, at least 288 W
Emitting length484 mm
Cable length3000 mmdrawing

Mounting and installation

Mounting holes 4 × M56 mm deep
Cable3 m

As printed in this model's specifications and dimension drawing. Check the drawing in Downloads before you drill a fixture.

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount and sensor coverage, supply voltage, power per channel and connector.

Build the full system with this part

Controllers for this light

480 W per channel at 24 V for this 288 W light

300 W per channel at 24 V for this 288 W light

Same 24 V supply

Same 24 V supply

Same 24 V supply

Same 24 V supply

Other models in the Coaxial line scan light (LS-LSC-S13) series

See all 10 models
ModelEmitting areaSizeVoltagePriceAvailabilityLink
LS-LSC-0106This model484 x 24 mmL500xW58xH168.5(mm)24 V$1,559.00 Ships in 2-3 weeks
LS-LSC-010284 x 24 mmL100xW58xH168.5(mm)24 V$469.00 Ships in 2-3 weeks View
LS-LSC-0103184 x 24 mmL200xW58xH168.5(mm)24 V$739.00 Ships in 2-3 weeks View
LS-LSC-0104284 x 24 mmL300xW58xH168.5(mm)24 V$1,019.00 Ships in 2-3 weeks View
LS-LSC-0105384 x 24 mmL400xW58xH168.5(mm)24 V$1,289.00 Ships in 2-3 weeks View
LS-LSC-0107584 x 24 mmL600xW58xH168.5(mm)24 V$1,829.00 Ships in 2-3 weeks View
LS-LSC-0108684 x 24 mmL700xW58xH168.5(mm)48 V$2,109.00 Ships in 2-3 weeks View
LS-LSC-0109784 x 24 mmL800xW58xH168.5(mm)48 V$2,379.00 Ships in 2-3 weeks View
LS-LSC-0110884 x 24 mmL900xW58xH168.5(mm)48 V$2,649.00 Ships in 2-3 weeks View
LS-LSC-0111984 x 24 mmL1000xW58xH168.5(mm)48 V$2,929.00 Ships in 2-3 weeks View
