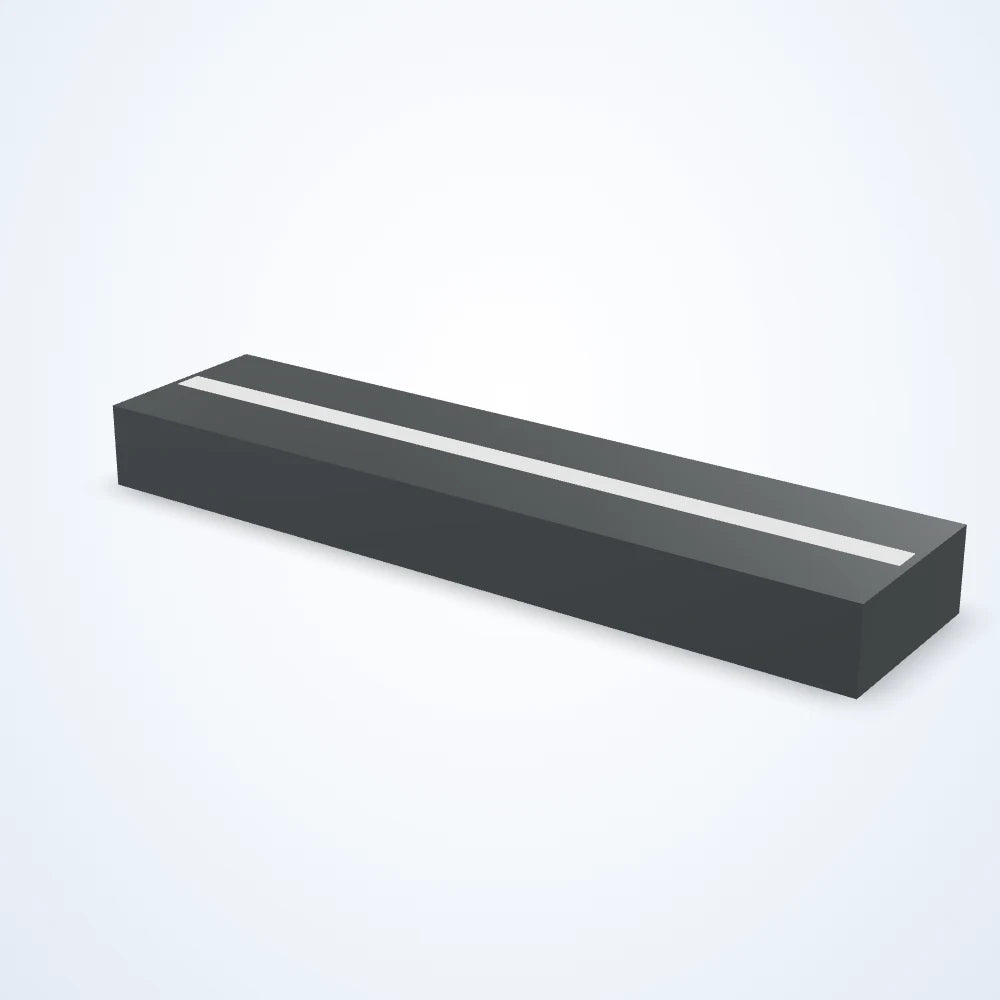

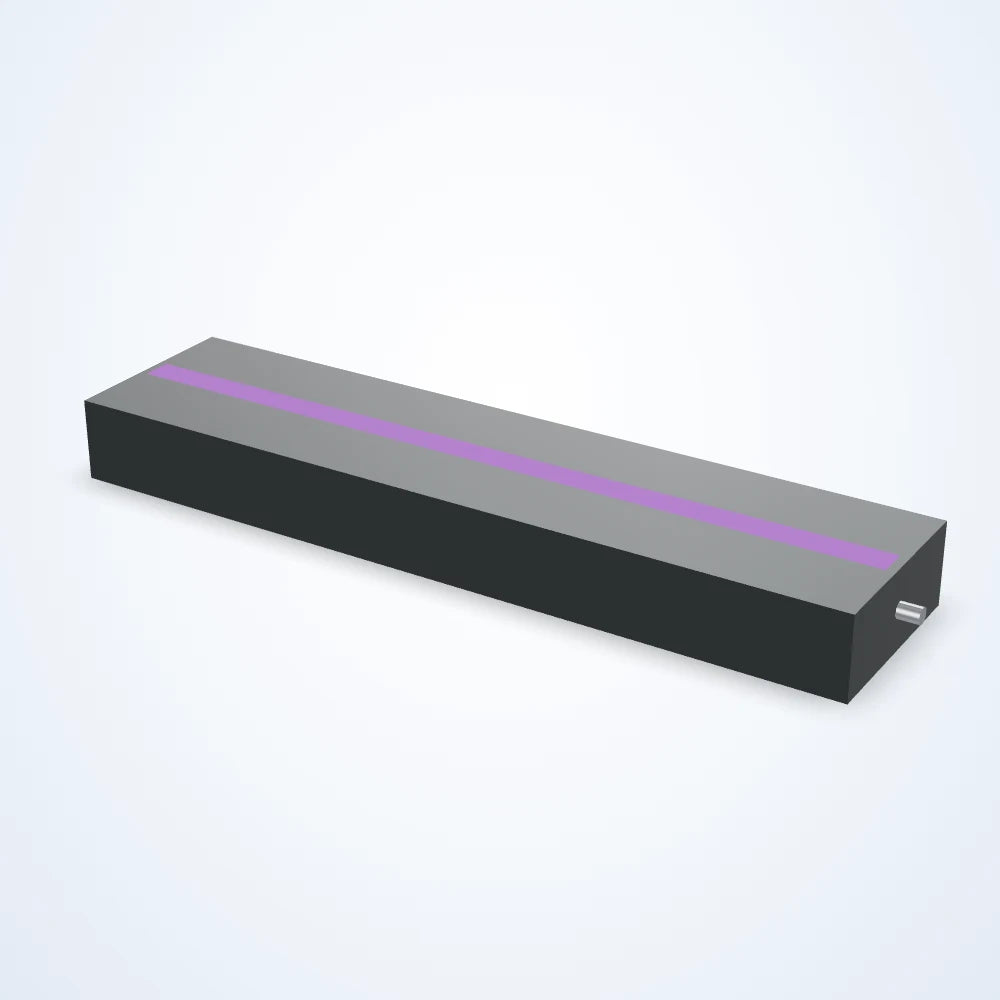

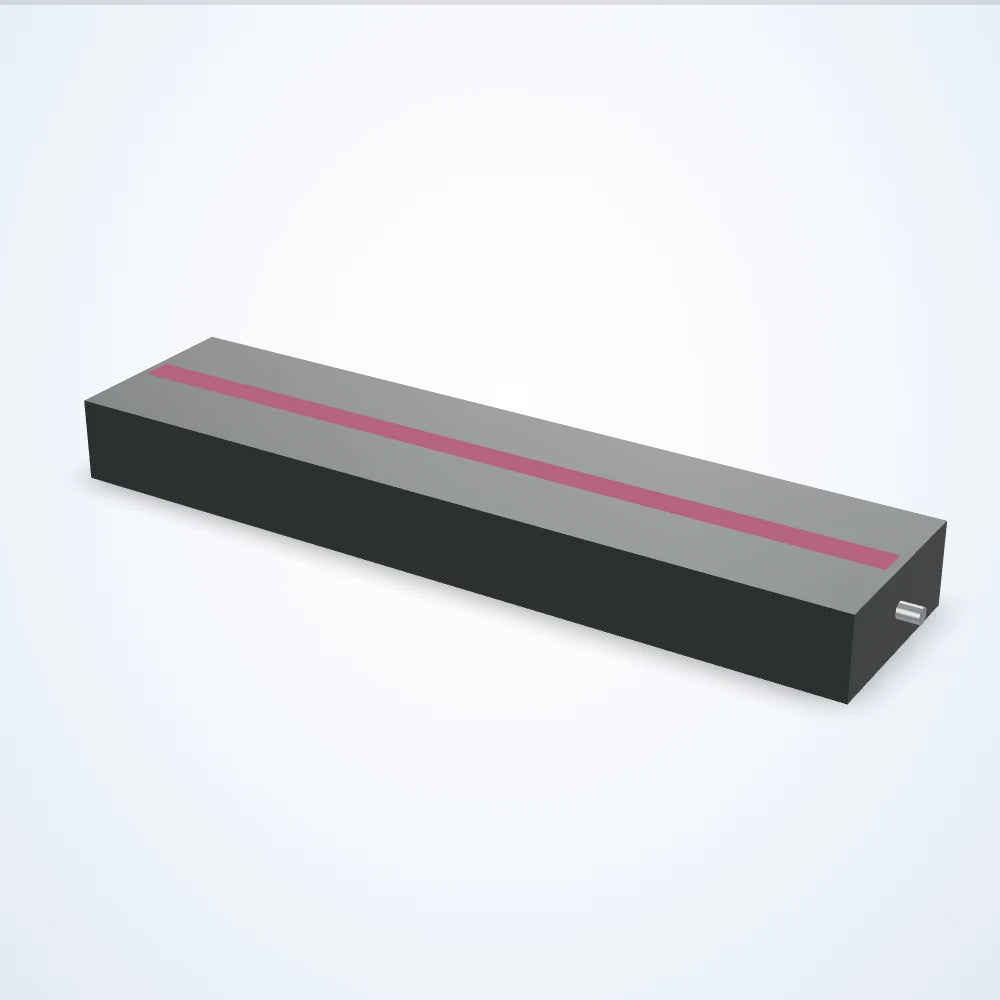

Rendered illustration: the actual product may differ in appearance.
Line scan lights
Line scan light, 596 mm lit length (LS-LSC-0022)
Model LS-LSC-0022
- ColourWhite, Red, Infrared, Blue, UV
- Voltage24 VDC
- Wavelength365 nm, 850 nm
- Lit length596 mm
from $2,929.00 USDQuote
Quoted price: add to quote for lead time and volume pricing.
Built to order: ships in about 1-2 weeks
Choose a configuration 20 available
Configuration LS-LSC-0022-01 $5,409.00
List price of this configuration; the final quote follows.
Collect parts in your quote list; we reply with price, lead time and volume pricing.
High-intensity line light for line scan cameras on moving webs and conveyors. Lit area 596 x 21.8 mm; 24 VDC supply; connection: 5 pin m12 male a-coded. Choose colour, lens / beam angle below (20 configurations) and request a quote.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LSC-0022 |
|---|---|
| Connection at light | Connectorized |
| Driver included | Included |
| Driver location | Internal |
| Operating modes | Constant On |
| Collimated | Not Collimated |
| Daisy chain | No |
| Direct connect | Yes |
| Maximum duty cycle (%) | 100 |
| Polarized | Not Polarized |
Interfaces and I/O
| Connector | 5 Pin M12 Male A-Coded |
|---|
Light
| Diffused | Not Diffused |
|---|
Environment and compliance
| Operating temperature | -10 to 40 °C |
|---|---|
| IP rating | IP50 |
| Storage temperature | -20 to 70 °C |
| Compliance | CE, IEC 62471, RoHS |
Electrical
| Voltage | 24 VDC |
|---|---|
| Strobe trigger input | Constant On Only |
| Maximum constant on current (mA) | 3200 |
| Maximum input power constant on (W) | 76.8 |

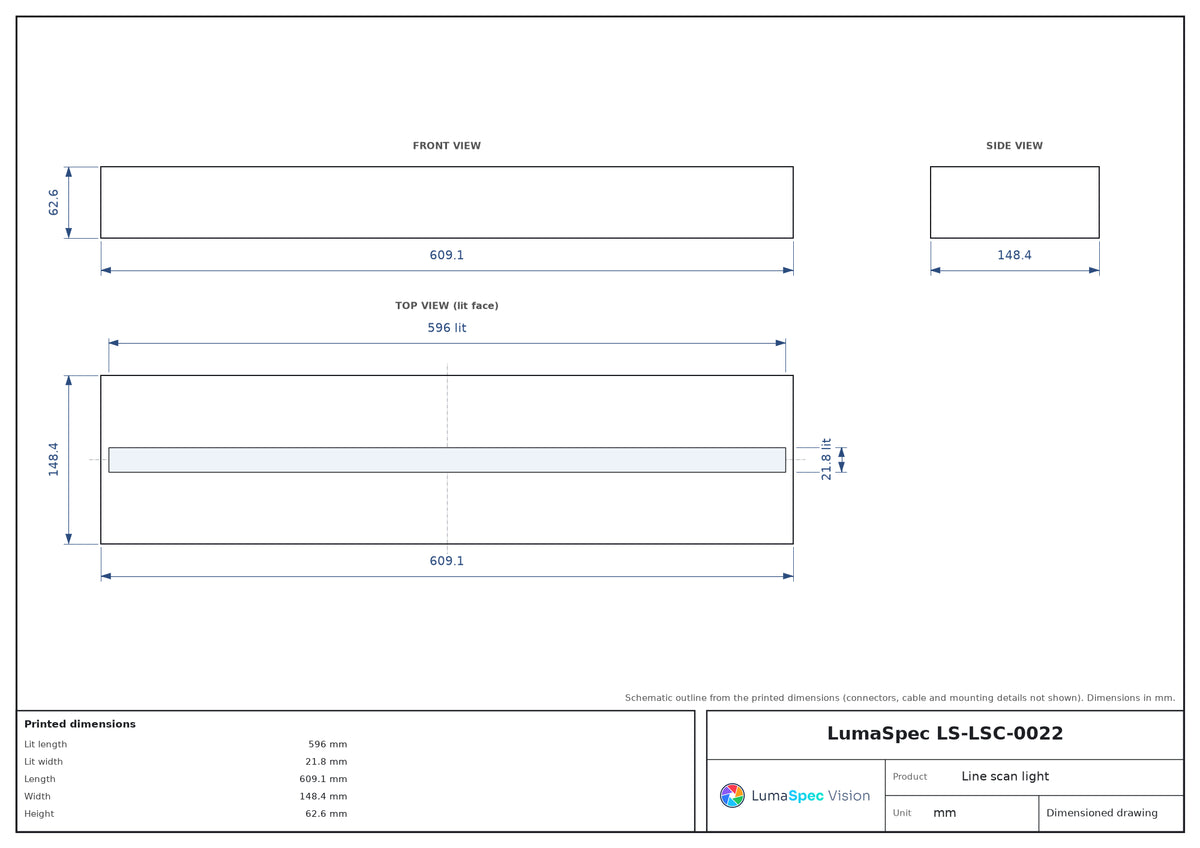

Mechanical
| Lit length (mm) | 596 |
|---|---|
| Lit width (mm) | 21.8 |
| Length (mm) | 609.1 |
| Width (mm) | 148.4 |
| Height (mm) | 62.6 |
| Housing | Aluminum |
| Mounting | T-Slot Channels |
Other models in the Line scan light series, 62.6 mm high, 5 Pin M12 Male A-Coded series
See all 4 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-LSC-0021 | 296 x 21.8 mm | $1,529.00 Quote | Built to order: ships in about 1-2 weeks | View |
| LS-LSC-0023 | 896 x 21.8 mm | $3,809.00 Quote | Built to order: ships in about 1-2 weeks | View |
| LS-LSC-0020 | 1196 x 21.8 mm | $4,639.00 Quote | Built to order: ships in about 1-2 weeks | View |
