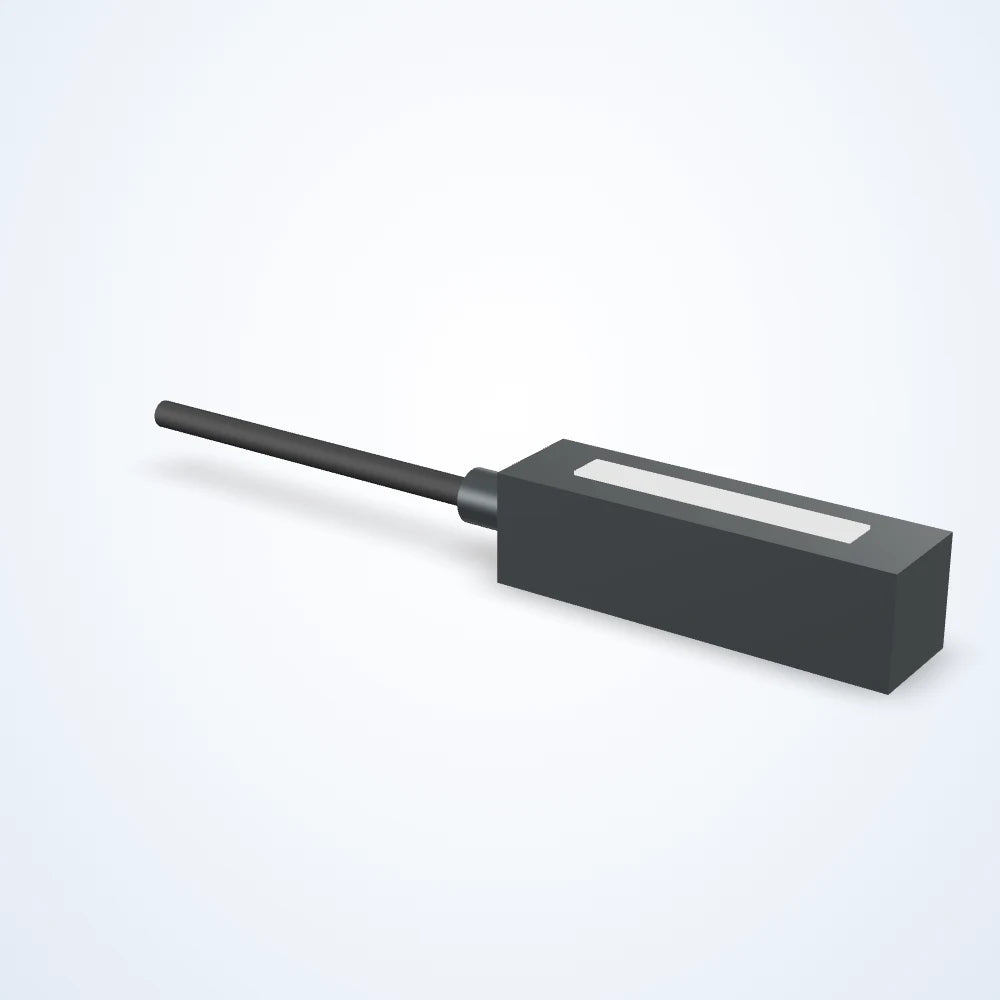

  • Line scan light, 50.8-762 mm lit length (LS-LSC-0019) - view 2
  • Line scan light, 50.8-762 mm lit length (LS-LSC-0019) - view 3
  • Line scan light, 50.8-762 mm lit length (LS-LSC-0019) - view 4

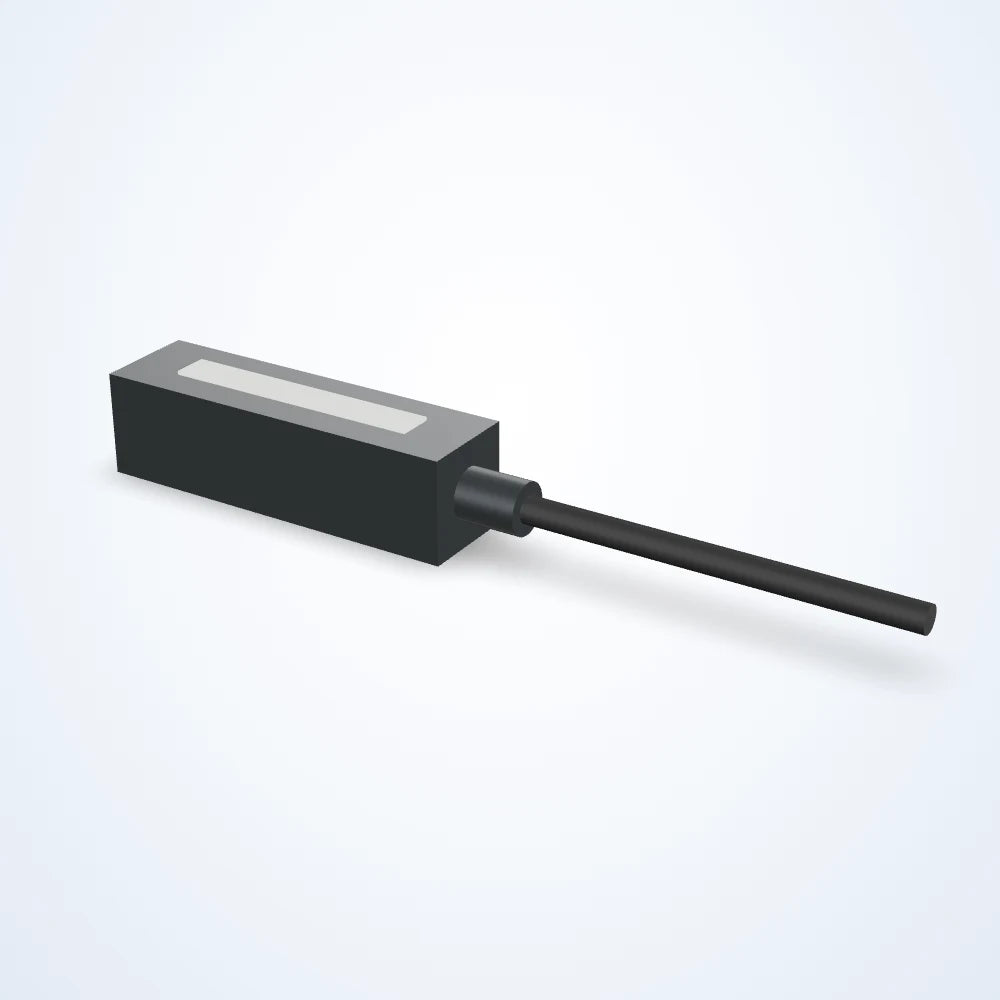

  • Line scan light, 50.8-762 mm lit length (LS-LSC-0019) - view 5

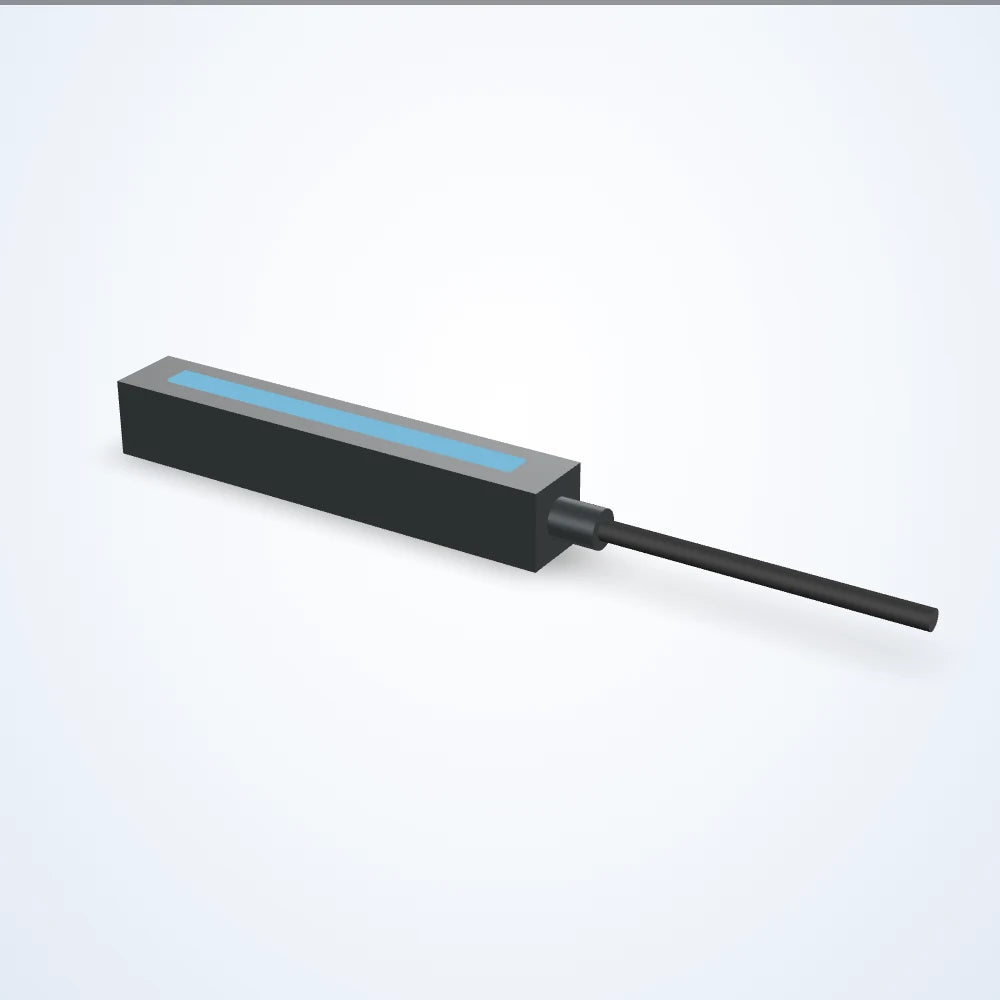

  • Line scan light, 50.8-762 mm lit length (LS-LSC-0019) - view 6

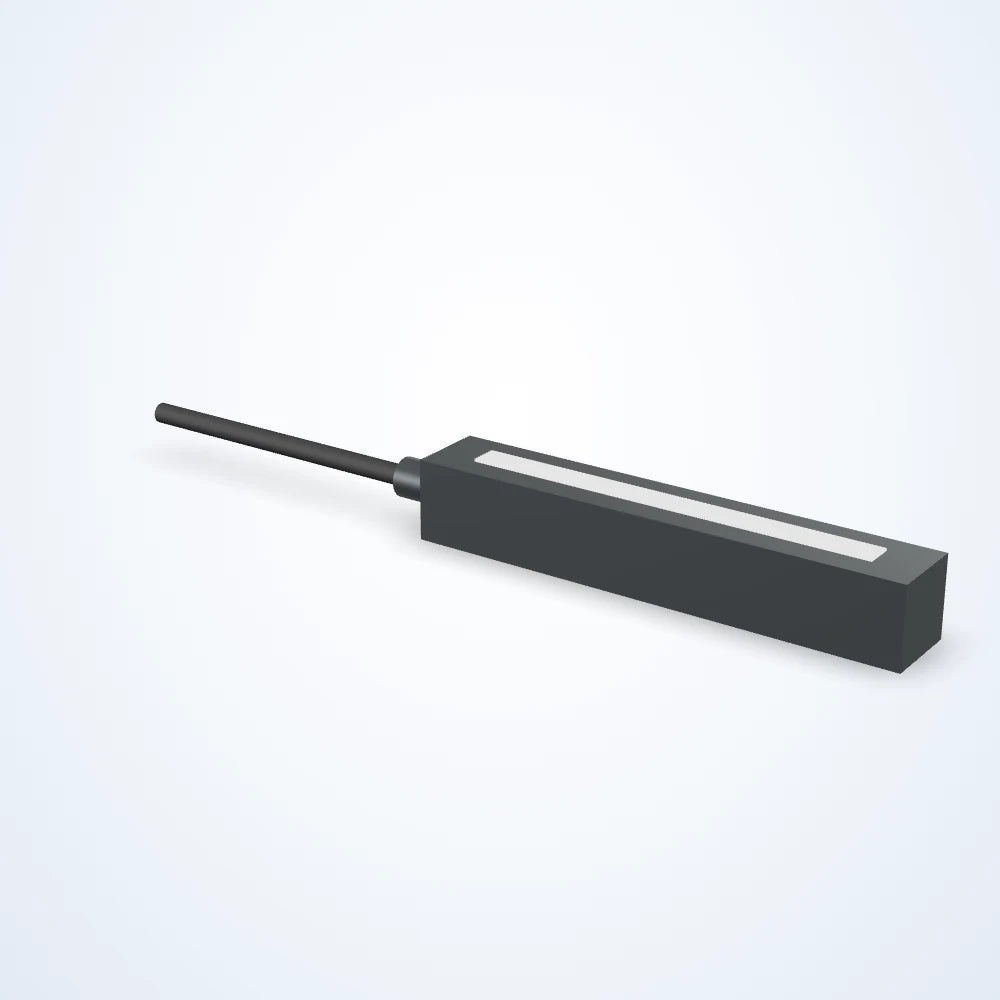

  • Line scan light, 50.8-762 mm lit length (LS-LSC-0019) - view 7

Rendered illustration: the actual product may differ in appearance.

Line scan lights

Line scan light, 50.8-762 mm lit length (LS-LSC-0019)

Model LS-LSC-0019

  • ColourWhite, Red, Infrared, Blue
  • Voltage24 VDC
  • Wavelength730 nm, 850 nm, 940 nm
  • Lit width14.7 mm
from $629.00 USDQuote

Quoted price: add to quote for lead time and volume pricing.

Built to order: ships in about 4-5 weeks

Choose a configuration 264 available

Colour
Driver included
Driver location
Intensity control
Strobe trigger input
Minimum overcurrent strobe duration (us)
Version

Configuration LS-LSC-0019-001 $629.00

List price of this configuration; the final quote follows.

Collect parts in your quote list; we reply with price, lead time and volume pricing.

High-intensity line light for line scan cameras on moving webs and conveyors. 24 VDC supply; connection: flying leads. Choose colour, lit length, length, driver included, driver location below (264 configurations) and request a quote.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-LSC-0019
Connection at lightHardwired
CollimatedNot Collimated
Daisy chainNo
Direct connectNo
Maximum duty cycle (%)100
PolarizedNot Polarized

Interfaces and I/O

ConnectorFlying Leads
Cable length (mm)2000

Light

DiffusedNot Diffused

Environment and compliance

Operating temperatureup to 60 °C
ComplianceCE, IEC 62471, RoHS
Minimum operating temperature32 °F (0 °C)

Electrical

Voltage24 VDC
Maximum constant on current (mA)175 to 1907 (by configuration)
Maximum current (overcurrent strobe) (mA)8000 (by configuration)
Maximum input power constant on (W)4.2 to 45.8 (by configuration)
Maximum input power overcurrent strobe (W)125 / 150 (by configuration)
Maximum overcurrent strobe frequency (Hz)2000 (by configuration)
Maximum overcurrent strobe latency (µs)20 / 60 (by configuration)
NPN trigger voltage (V)< 1 VDC (by configuration)
PNP trigger current (mA)5 (by configuration)
PNP trigger voltage (V)2.5-30 VDC (by configuration)

Mechanical

Lit width (mm)14.7
Width (mm)20
Height (mm)20.1
HousingAluminum
MountingT-Slot Channel
