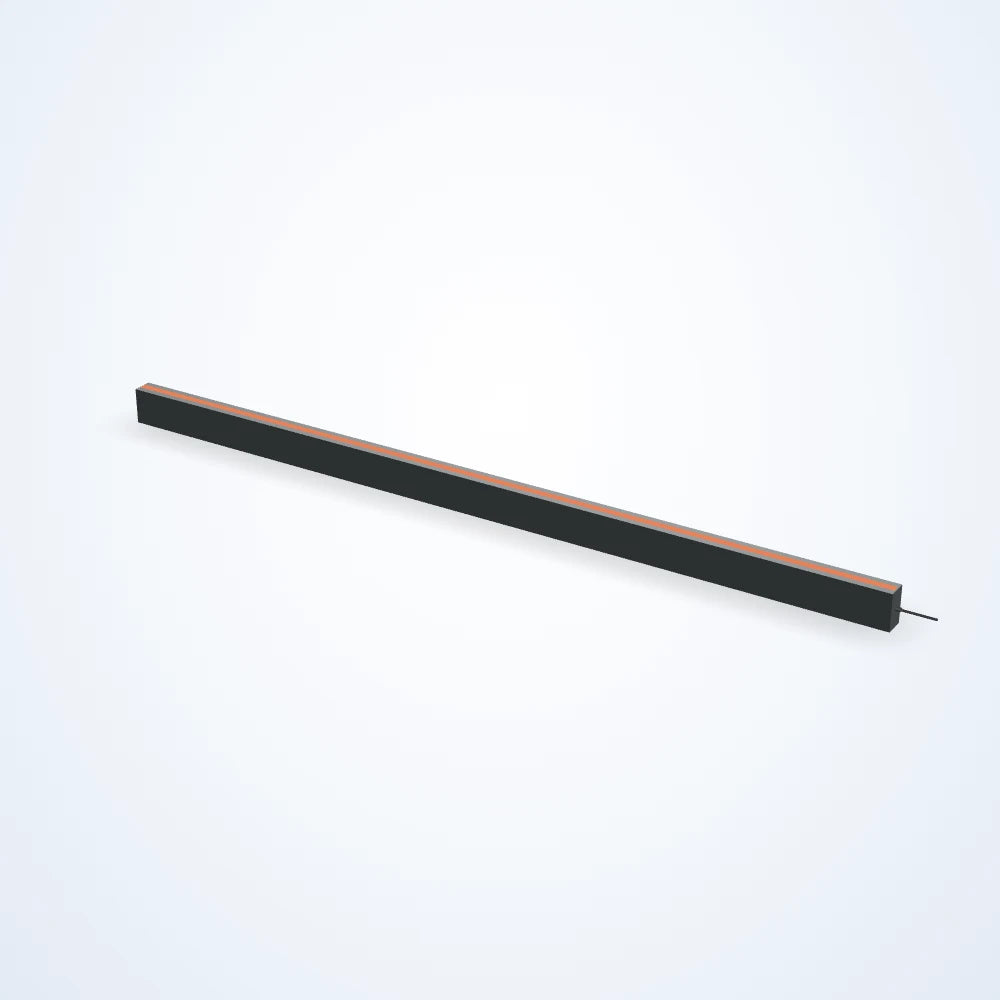

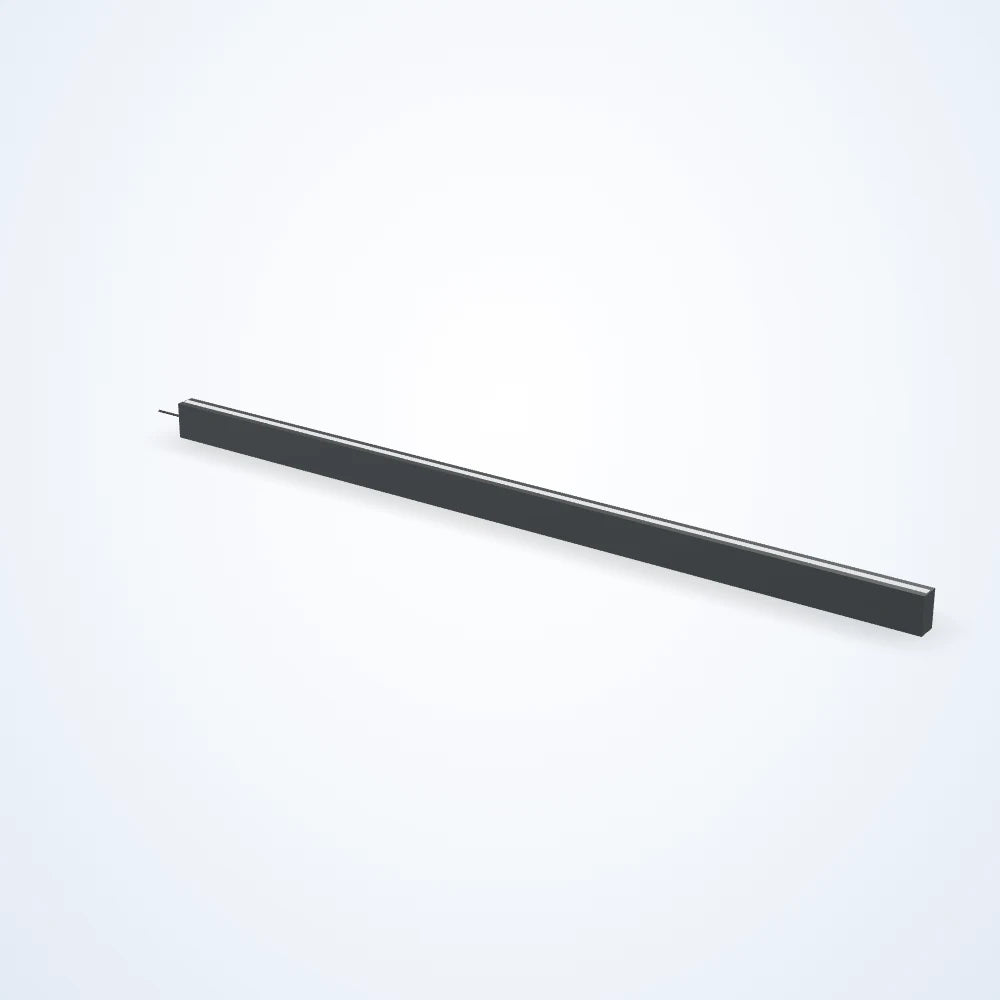

Rendered illustration: the actual product may differ in appearance.
Line scan lights
Line scan light, 2032 mm lit length (LS-LSC-0014)
Model LS-LSC-0014
- ColourWhite, Red, Green, Blue
- Voltage24 VDC
- Lit length2032 mm
- Lit width25.9 mm
from $11,139.00 USDQuote
Quoted price: add to quote for lead time and volume pricing.
Built to order: ships in about 4-5 weeks
Choose a configuration 4 available
Configuration LS-LSC-0014-1 $11,139.00
List price of this configuration; the final quote follows.
Collect parts in your quote list; we reply with price, lead time and volume pricing.
High-intensity line light for line scan cameras on moving webs and conveyors. Lit area 2032 x 25.9 mm; 24 VDC supply; connection: flying leads. Choose colour below (4 configurations) and request a quote.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LSC-0014 |
|---|---|
| Connection at light | Hardwired |
| Driver included | No Driver Required |
| Driver location | No Driver |
| Operating modes | Constant On |
| Collimated | Not Collimated |
| Daisy chain | No |
| Direct connect | No |
| Maximum duty cycle (%) | 100 |
| Polarized | Not Polarized |
Interfaces and I/O
| Connector | Flying Leads |
|---|---|
| Cable length (mm) | 2000 |
Light
| Diffused | Not Diffused |
|---|
Environment and compliance
| Operating temperature | up to 60 °C |
|---|---|
| IP rating | IP50 |
| Compliance | CE, IEC 62471, RoHS |
| Minimum operating temperature | 32 °F (0 °C) |
Electrical
| Voltage | 24 VDC |
|---|---|
| Strobe trigger input | Not Dimmable |
| Maximum constant on current (mA) | 10164 |
| Maximum input power constant on (W) | 243.9 |

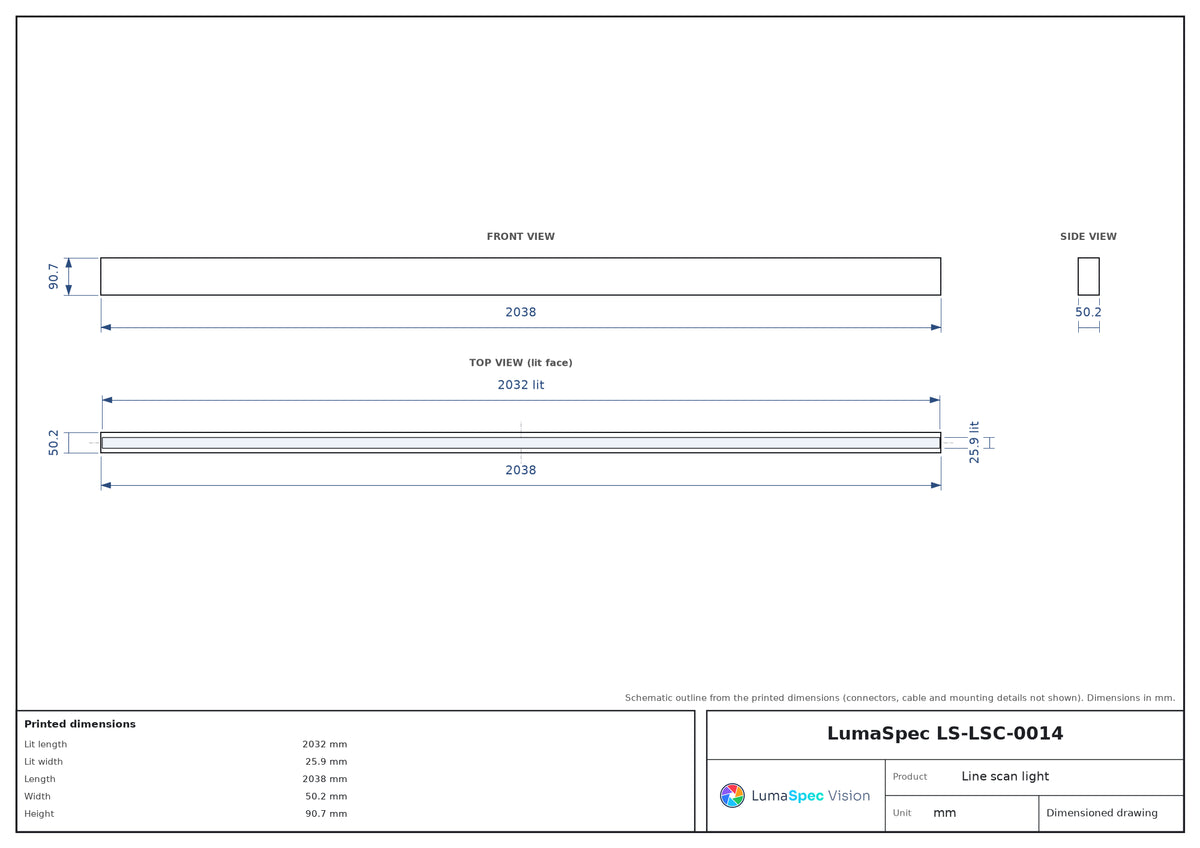

Mechanical
| Lit length (mm) | 2032 |
|---|---|
| Lit width (mm) | 25.9 |
| Length (mm) | 2038 |
| Width (mm) | 50.2 |
| Height (mm) | 90.7 |
| Housing | Aluminum |
| Mounting | T-Slot Channel |
