Machine vision lenses

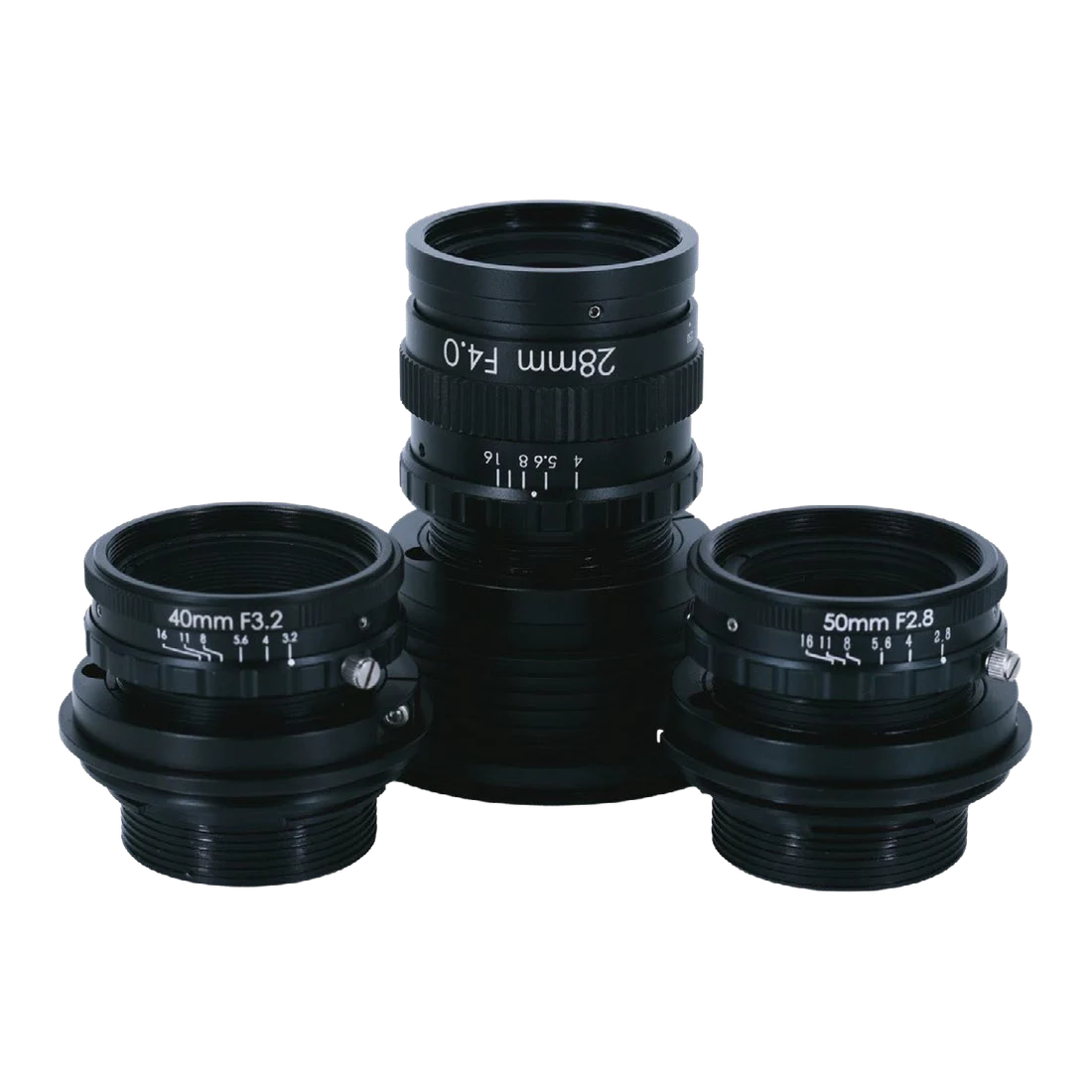

28 mm, 8K, M42-mount Line Scan Lens (LS-LSB2840M)
Model LS-LSB2840M
- Focal length28 mm
- Magnification< 0.268
- MountM42
- SensorFull frame
- Resolution8K5µm
$629.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.7 kg shipping weight
Volume pricing, Net 30 or a formal quote?
28 mm, 8K, M42-mount Line Scan Lens. 8K Line Scan Lens.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LSB2840M |
|---|
Optics
| Focal length (mm) | 28 |
|---|---|
| Image circle (mm) | 43 |
| Iris (F/#) | 4.0-16 |
| Magnification range (X) | < 0.268 |
| Filter screw size | M43 * P0.75 |
Sensor and imaging
| Resolution (μm) | 8K5µm |
|---|
Mechanical
| Mount | M42\M58\M72\M90\M95\F |
|---|---|
| Shipping weight (estimated) | 0.70 kg |
Other models in the 8K line scan lens (image circle 43 mm) series
See all 3 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-LSB4032M | 40 mm, 8K, M42-mount | $649.00 | 2 in stock | View |
| LS-LSB5028M | 50 mm, 8K, M42-mount | $659.00 | 3 in stock | View |
