Line scan lenses

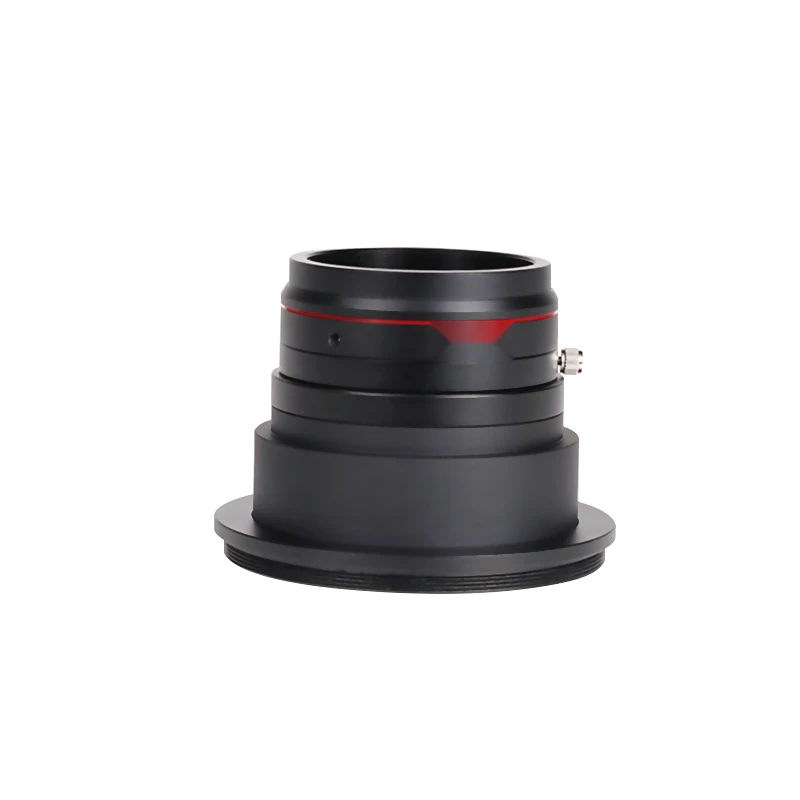

Line scan lens, 40 mm, M72-mount (LS-LS408K)
Model LS-LS408K
- Focal length40mm
- Magnification0.04x-0.25x
- MountM72
- SensorLarge format
- Working distance200mm-Infinity
- Aperture5.6~16
$2,119.00
In stock - ships the same business day (5 available, order by 2 PM ET)
0.23 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Manual focus 4K line scan lens is suitable for professional machine vision imaging,inspection of ultra-long/large size workpieces and other defect detection.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LS408K |
|---|---|
| F/NO | 5.6~16 |
| WD | 200mm-Infinity |
| Type | Line Scan Lens |
| Flange distance | 12.00 |
Optics
| Focal length | 40mm |
|---|---|
| Image circle | 60mm |
| Magnification | 0.04x-0.25x |
| Working distance | 200mm-Infinity |
| Aperture | 5.6~16 |
Sensor and imaging
| Resolution | 8K7μ |
|---|
Environment and compliance
| Temperature range | —20℃~+60℃ |
|---|
Mechanical
| Mount | M72 |
|---|---|
| Mount | M72.0x0.75-6g |
| Filter size | M43x0.75-6g |
| Weight | 90g |
| Lens length (mm) | 55.21@Infinity WD, 65.07@200WD |
