Ring lights
Ring Light, 120 mm dia., White, cable length 500 mm (LS-LO-120-30-W)
Model LS-LO-120-30-W
- ColourWhite
- SizeΦ120 × 23 mm
- Power11.4 W
- TypeDiffused
$189.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.66 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Ring Light, 120 mm dia., White. Simple, compact structure, easy to install Multiple angles and flexible sizes
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LO-120-30-W |
|---|---|
| Irradiation angle | 30° |
Interfaces and I/O
| Connector type | SMR-03V-B |
|---|---|
| Cable length | 500 mm |
Light
| Color | White |
|---|---|
| Color temperature | 6000~7000K |
| LED rows | 3 |
| Diffuse plate included | Included |
Environment and compliance
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
|---|---|
| Humidity | 20% to 85% RH (non-condensing) |
Electrical
| Power | 11.4 W |
|---|---|
| Supply voltage (derived) | 24 V DC, derived: all 370 lights of this range with the same connector type that state a voltage are rated 24 V |
Mechanical

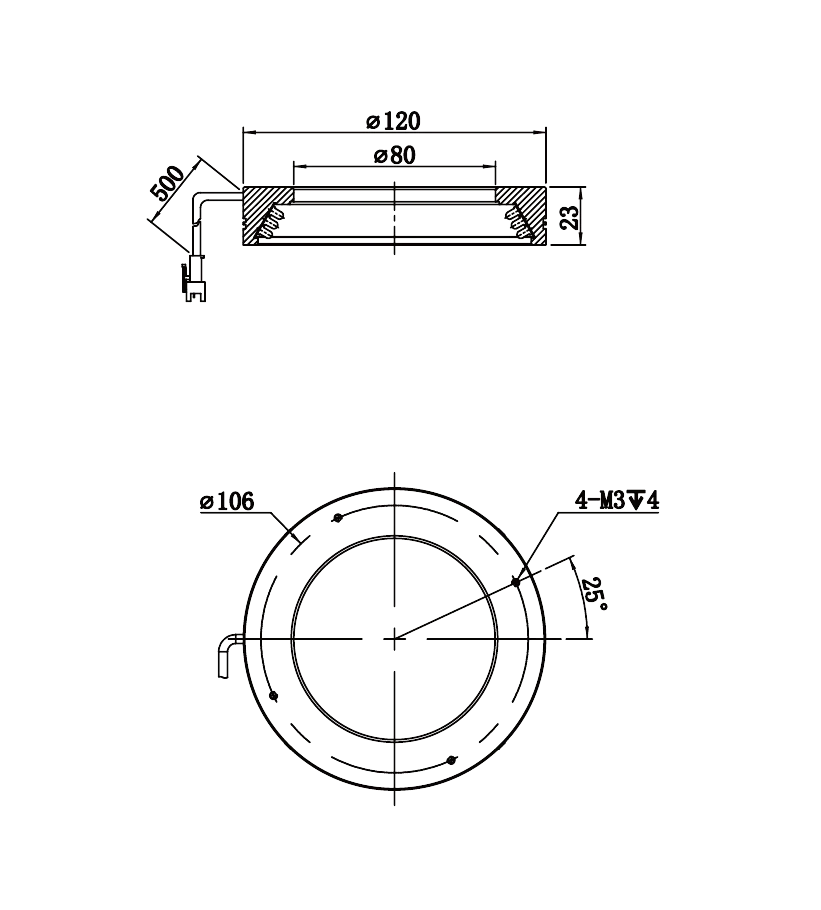

| Dimension | Φ120 × 23 mm |
|---|---|
| Outer dimension | Φ120 mm |
| Bore dimension | Φ80 mm |
| Shipping weight (estimated) | 0.66 kg |
