Colour shown for illustration; the actual product may differ
Line scan lights
600 mm Passive-Cooled Line Scan Light (LS-LNS-600)
Model LS-LNS-600
- ColourRed, Green, Blue, White
- Emitting area600x18 mm
- Size640x48x75 mm
- Voltage24 V
$979.00
In stock - ships the same business day (5 available, order by 2 PM ET)
1.85 kg shipping weight
Volume pricing, Net 30 or a formal quote?
600 mm Passive-Cooled Line Scan Light. Fan-less, naturally cooled line scan light with high uniformity and parallelism, matched to line scan cameras. Light weight, good heat dissipation and high brightness; can be used as direct light or backlight.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LNS-600 |
|---|---|
| Cooling | Natural (fan-less) |
| Outer cross-section WxH | 48x75 mm |
Light
| Emitting area (mm) | 600x18 |
|---|---|
| Colours | Red, Green, Blue, White |
| Emitting width | 18 mm |
Electrical
| Voltage (V) | 24 |
|---|---|
| Power R/G/B/W (W) | 101 |
Mechanical

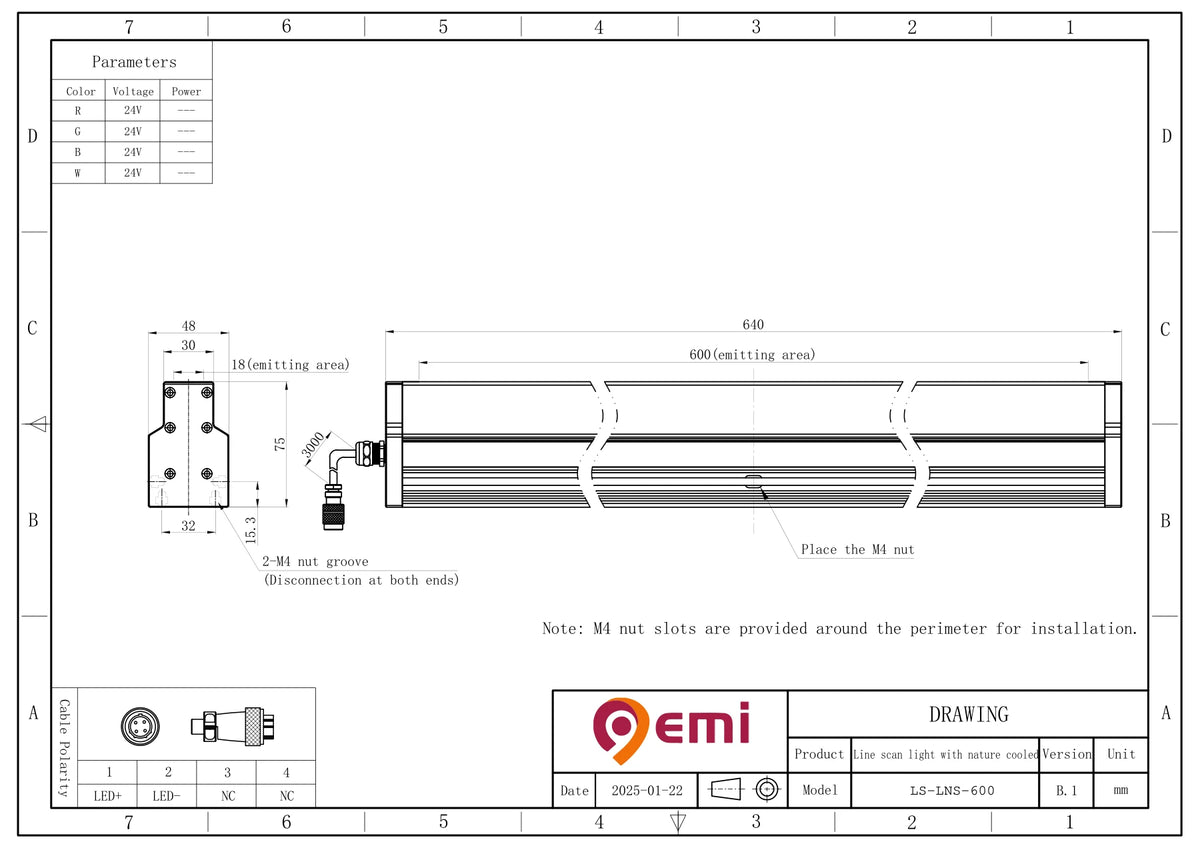

| Outer size L x W x H (mm) | 640x48x75 |
|---|---|
| Shipping weight (estimated) | 1.85 kg |
Other models in the Line scan light with natural cooling (LNS) series
See all 8 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-LNS-100 | 100 mm | $219.00 | 11 in stock | View |
| LS-LNS-200 | 200 mm | $369.00 | 20 in stock | View |
| LS-LNS-300 | 300 mm | $529.00 | 13 in stock | View |
| LS-LNS-400 | 400 mm | $679.00 | 16 in stock | View |
| LS-LNS-500 | 500 mm | $829.00 | 11 in stock | View |
| LS-LNS-700 | 700 mm | $1,129.00 | 13 in stock | View |
| LS-LNS-800 | 800 mm | $1,279.00 | 13 in stock | View |
