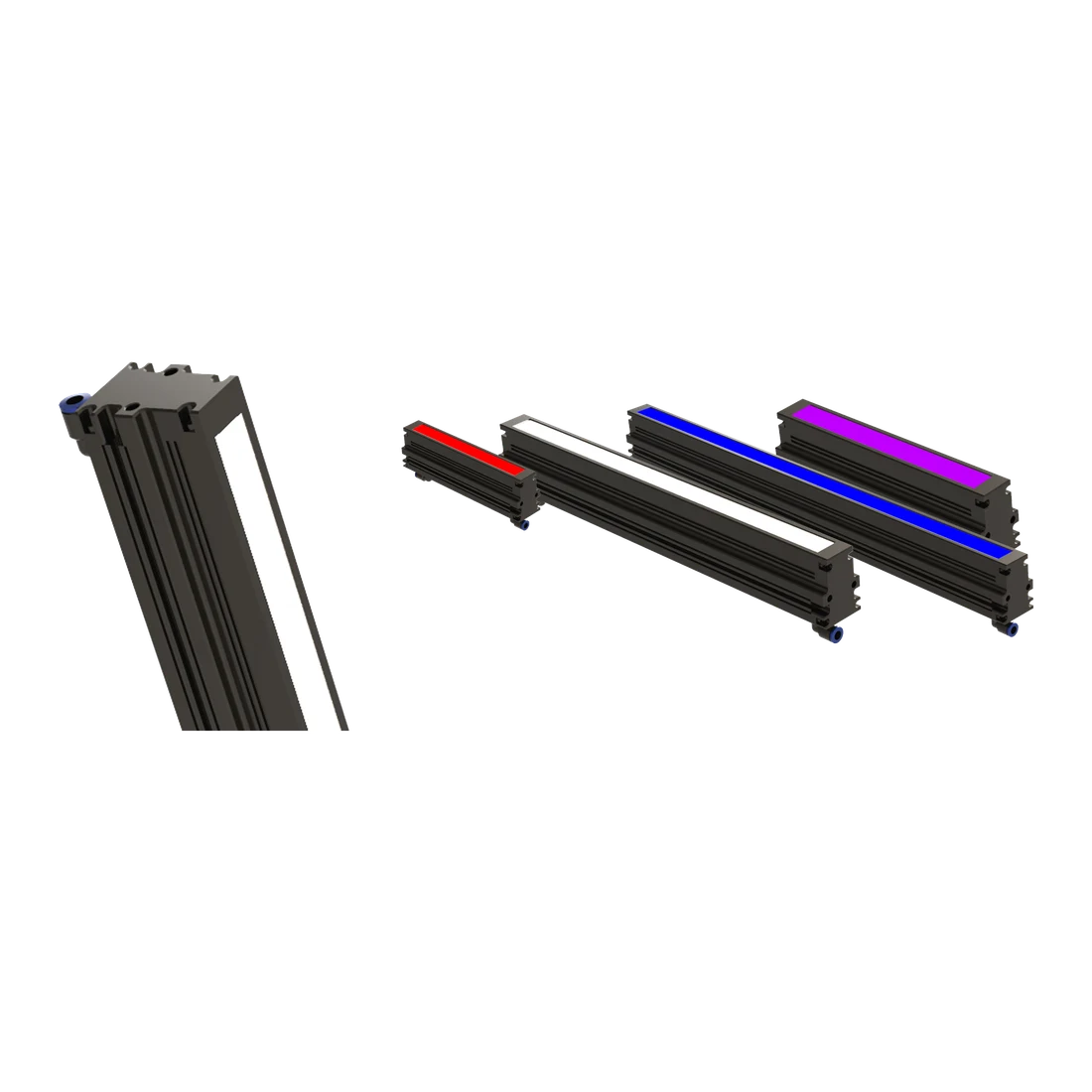

300 mm Water-Cooled Line Scan Light (LS-LNP-300)
  • 300 mm Water-Cooled Line Scan Light (LS-LNP-300)

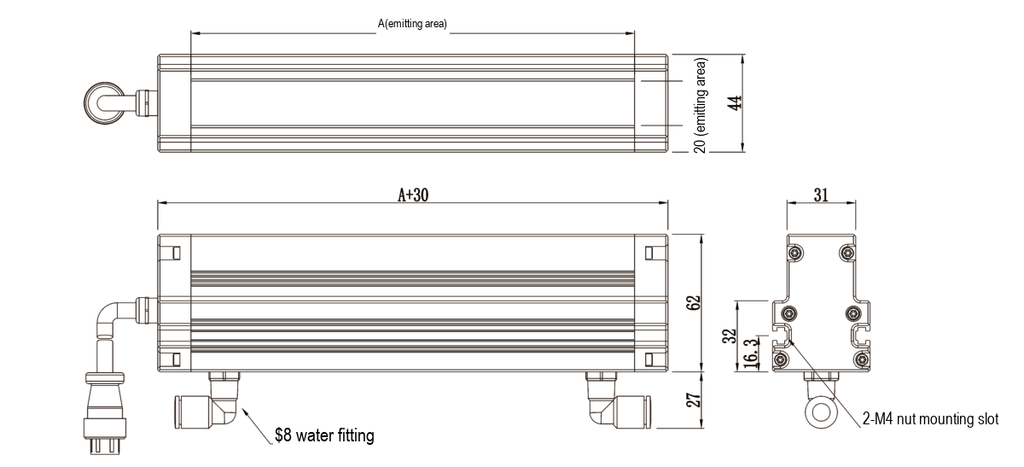

  • LS-LNP-300 dimensions (mm)

Line scan lights

900 mm Water-Cooled Line Scan Light (LS-LNP-900)

Model LS-LNP-900

  • ColourRed, Green, Blue, White
  • Emitting area900x20 mm
  • Size930x44x62 mm
  • Voltage48 V
$2,329.00

In stock - ships the same business day (5 available, order by 2 PM ET)

2.2 kg shipping weight

Color

Volume pricing, Net 30 or a formal quote?

900 mm Water-Cooled Line Scan Light. Water-cooled line scan light with a close arrangement of high-power LEDs for high-brightness, uniform emission. A temperature-control switch protects the light from damage due to high temperature.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-LNP-900
CoolingWater cooled; Φ8 water pipe connectors (drawing)
Outer cross-section WxH44x62 mm

Light

Emitting area (mm)900x20
ColoursRed, Green, Blue, White
Emitting width20 mm

Electrical

Voltage (V)48
Power R (W)250
Power G/B/W (W)500

Mechanical

Outer size L x W x H (mm)930x44x62
Mounting2-M4 nut mounting slot (end view 31 wide; slot at 32 / 16.3 from base; fittings add 27 below body)
Shipping weight (estimated)2.20 kg

Other models in the Line scan light with water cooling (LNP) series

See all 8 models
ModelSize / key dataPriceAvailabilityLink
LS-LNP-300 300 mm $849.00 14 in stock View
LS-LNP-400 400 mm $1,099.00 9 in stock View
LS-LNP-500 500 mm $1,339.00 12 in stock View
LS-LNP-600 600 mm $1,589.00 14 in stock View
LS-LNP-700 700 mm $1,829.00 13 in stock View
LS-LNP-800 800 mm $2,079.00 14 in stock View
LS-LNP-1000 1000 mm $2,569.00 16 in stock View
