Representative photo of this series
Lens accessories
Prism, 78 x 25 mm (LS-LJ2070)
Model LS-LJ2070
- TypePrisms
- Outer size78 x 25 x 25 mm
- Luminous surface68 x 20 mm
- MountingM3 threaded holes, depth 3
$99.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.21 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Prism series: high brightness, small luminous area.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LJ2070 |
|---|
Light
| Luminous surface (mm) | 68 x 20 |
|---|---|
| Emitting surface (mm) | 68 x 20 |
Mechanical

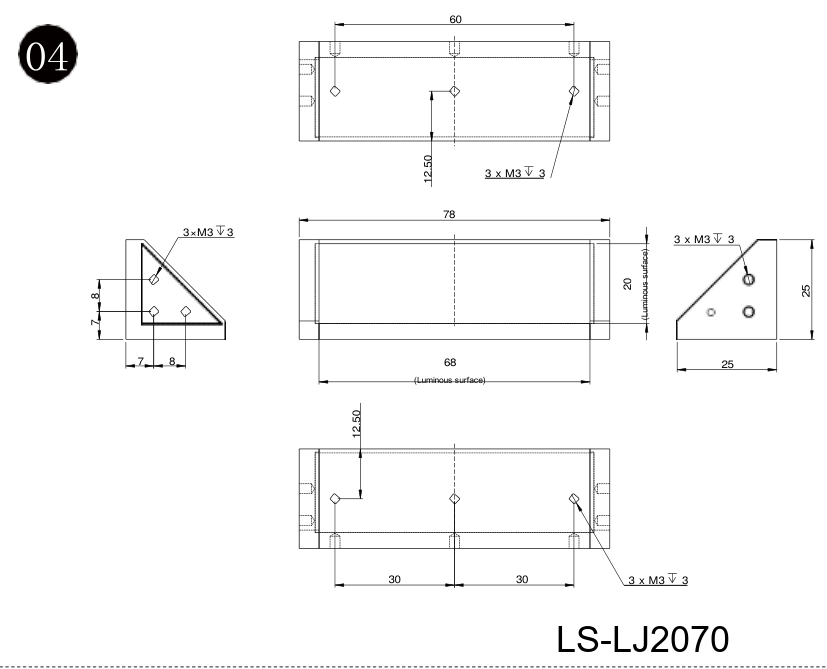

| Outer size (mm) | 78 x 25 x 25 |
|---|---|
| Mounting | M3 threaded holes, depth 3 |
| Shipping weight | 0.21 kg |
