Shadowless lights

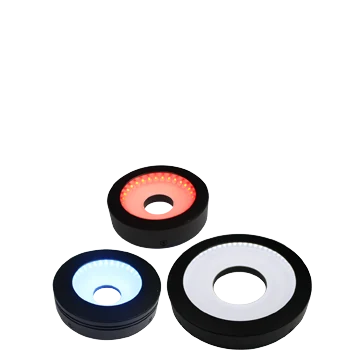

Flat Shadowless Light, 160 mm dia., Red (LS-LGES-160-R)
Model LS-LGES-160-R
- ColourRed
- Emitting areaΦ132 mm
- SizeΦ160 mm × 19.5 mm
- Power4.3 W
- Wavelength625 nm
$389.00
Quoted price: add to quote for lead time and volume pricing.
End of life soon: the maker is phasing this model out, so stock is limited. Ask us for availability or the successor model.
Ships in 2-3 weeks
0.66 kg shipping weight
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Flat Shadowless Light, 160 mm dia., Red. Simple, compact structure, easy to install Special diffuser plate produces uniform high-angle lighting
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LGES-160-R |
|---|
Interfaces and I/O
| Connector type | SMR-03V-B |
|---|---|
| Cable length | 500 mm |
Light
| Color | Red |
|---|---|
| Wavelength | 625 nm |
| LED rows | 1 |
| Emitting area dimension | Φ132 mm |
| Diffuse plate included | Included |
Environment and compliance
| Humidity | 20% to 85% RH (non-condensing) |
|---|---|
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
Electrical
| Power | 4.3 W |
|---|---|
| Supply voltage (derived) | 24 V DC, derived: all 370 lights of this range with the same connector type that state a voltage are rated 24 V |
Mechanical
| Dimension | Φ160 mm × 19.5 mm |
|---|---|
| Outer dimension | Φ160 mm |
| Bore dimension | Φ44 mm |
| Shipping weight (estimated) | 0.66 kg |
