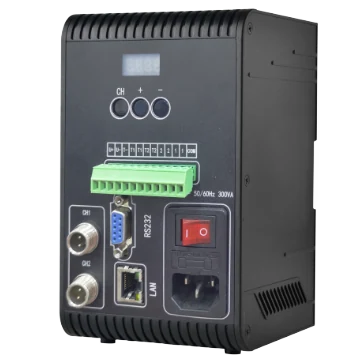

Digital constant-voltage light controller, Strobe overdrive, 200W, 2 channels, 12M-2B interface, Strobe overdrive, With GigE port (LS-LEVD-200-2-PY)
  • Digital constant-voltage light controller, Strobe overdrive, 200W, 2 channels, 12M-2B interface, Strobe overdrive, With GigE port (LS-LEVD-200-2-PY)
  • LS-LEVD-200-2-PY dimensions (mm)

Light controllers

Digital constant-voltage light controller, Strobe overdrive, 200W, 2 channels, 12M-2B interface, With GigE port (LS-LEVD-200-2-PY)

Model LS-LEVD-200-2-PY

  • Output48 VDC
  • Input100 ~ 240 VAC, 50/60 Hz
  • ControlRS-232, GigE
  • TriggerExternal trigger and internal trigger
$199.00

In stock - ships the same business day (4 available, order by 2 PM ET)

1.23 kg shipping weight

Volume pricing, Net 30 or a formal quote?

Digital constant-voltage light controller, Strobe overdrive, 200W, 2 channels, 12M-2B interface, Strobe overdrive, With GigE port. Adjustable light pulse width from 0 to 999 μs Boosts instantaneous light brightness by over 400% while extending light lifetime

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-LEVD-200-2-PY
Lighting modePulsed
PWM frequencyNot supported
Dimming modePulse width adjustment
Lighting response time≤ 5 μs
Cooling modeForced cooling (built-in fan)

Interfaces and I/O

Communication protocolRS-232, GigE
Applicable productRing light, Bar light, Flat light, Coaxial light
Power supply interfaceAC socket
Console interfaceSerial port
Digital I/O4 inputs, 4 camera trigger outputs (camera triggering supports rising edge only), 1 internal power output
Lighting output connector12M-2B

Light

Brightness level0 ~ 999

Environment and compliance

TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Ingress protectionIP30 (when properly installed)
Humidity20% RH to 85% RH (no condensation)
CertificationCE, RoHS

Electrical

Drive modeConstant voltage
Strobe overdriveSupported
Channel2
Trigger modeExternal trigger and internal trigger
Input voltage100 ~ 240 VAC, 50/60 Hz
Input current2.4 A
Output current100 A max
Output power200 W max
Output current for each channel50 A max (instantaneous)
Trigger inRising-edge signal, 12 to 24 VDC
Trigger out12 VDC voltage signal output in sync with the light
Output voltage48 VDC

Mechanical

Dimension169 mm × 100 mm × 111.8 mm
Shell materialPlastic
WeightApprox. 810 g
Shipping weight (estimated)1.23 kg
