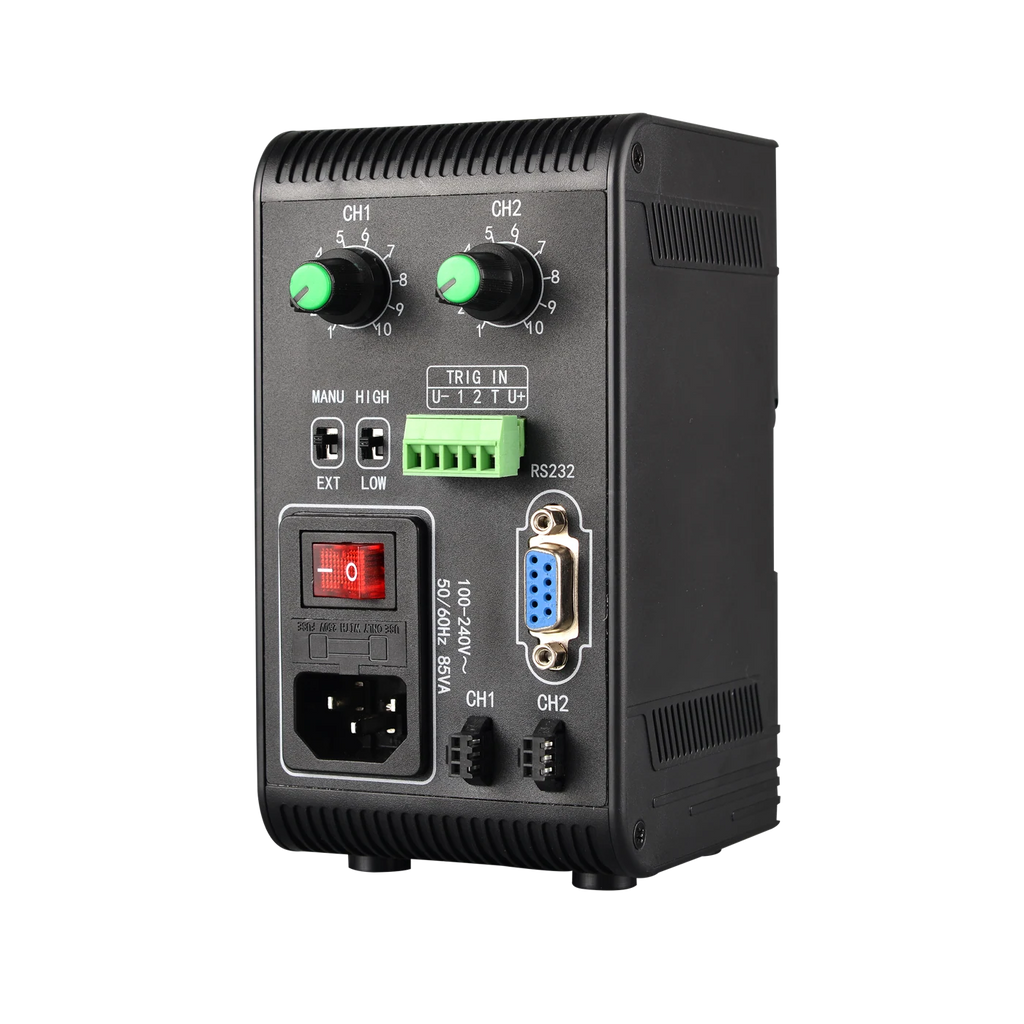

Digital constant-current light controller, 10W, 2 channels, SMR-03V-B connector, Spot light controller (LS-LEAD-10-2-DY)

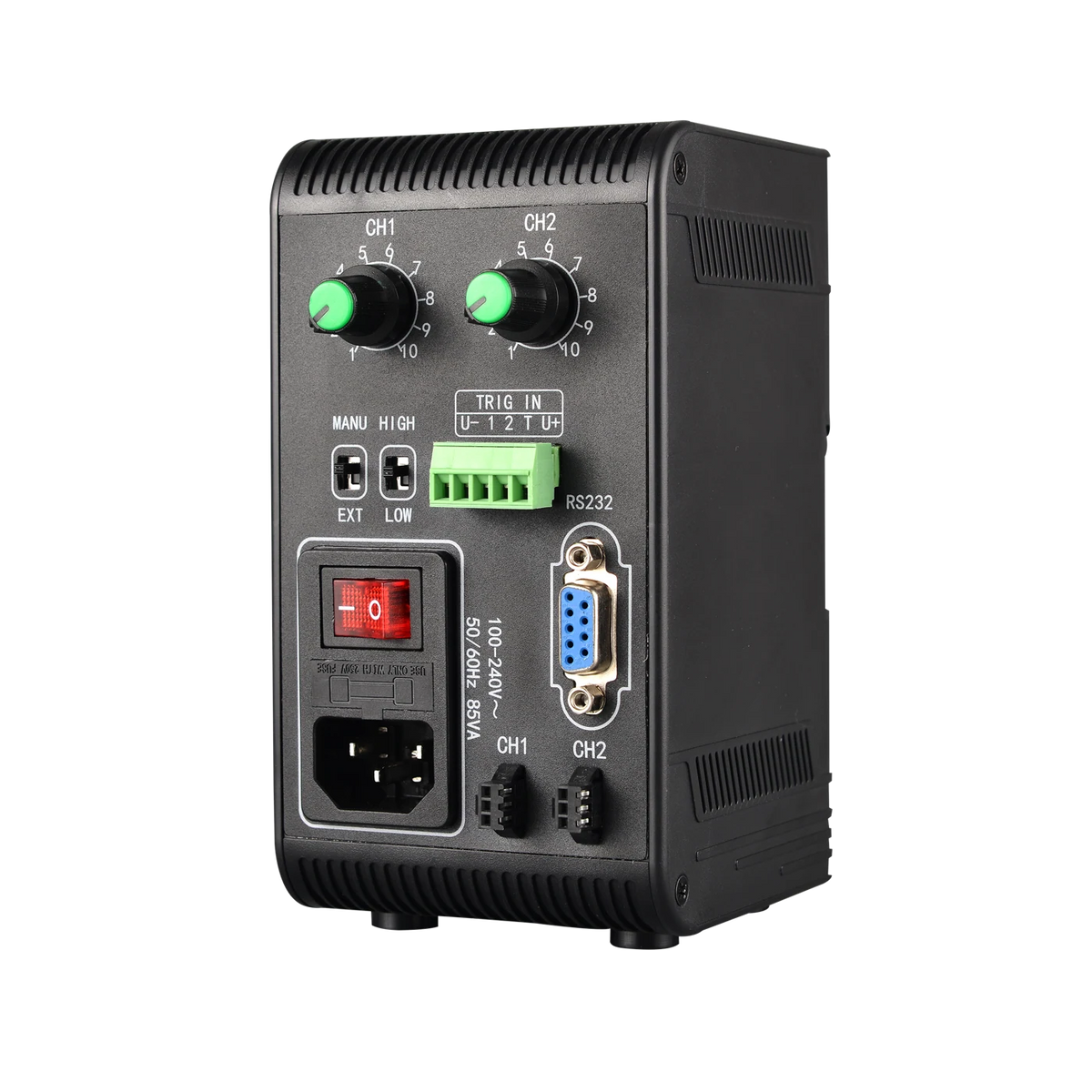

  • Digital constant-current light controller, 10W, 2 channels, SMR-03V-B connector, Spot light controller (LS-LEAD-10-2-DY)
  • LS-LEAD-10-2-DY dimensions (mm)

Light controllers

Digital constant-current light controller, 10W, 2 channels, SMR-03V-B connector, Spot light controller (LS-LEAD-10-2-DY)

Model LS-LEAD-10-2-DY

  • Output5 VDC
  • Input100 ~ 240 VAC, 50/60 Hz
  • ControlRS-232
  • Channels2 channels
$199.00

In stock - ships the same business day (4 available, order by 2 PM ET)

0.86 kg shipping weight

Volume pricing, Net 30 or a formal quote?

Digital constant-current light controller, 10W, 2 channels, SMR-03V-B connector, Spot light controller. 2+ channels for 5 V spot lights with 256 brightness levels Controlled via panel potentiometer or RS-232 serial communication

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-LEAD-10-2-DY
Lighting modeConstant current
PWM frequencyNot supported
Dimming modePanel knob, Serial communication
Lighting response time<150 μs
Cooling modeNatural cooling

Interfaces and I/O

Communication protocolRS-232
Applicable productSpot light
Power supply interfaceAC socket
Console interfaceSerial port
Digital I/O2 inputs, 1 internal power output
Lighting output connectorSMR-03V-BC

Light

Brightness levelPanel knob: 0 to 10; Serial communication: 0 to 255

Environment and compliance

TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity20% RH to 85% RH (no condensation)
Ingress protectionIP30 (when properly installed)
CertificationCE, RoHS

Electrical

Drive modeConstant current
Strobe overdriveNot supported
Channel2
Trigger modeExternal trigger supported, Internal trigger
Input voltage100 ~ 240 VAC, 50/60 Hz
Input current0.2 A
Output current1.4 A max
Output power10 W max
Output current for each channel0.7 A max
Trigger inLevel signal DC 5 to 24 V / 6 mA
Trigger outNot supported
Output voltage5 VDC

Mechanical

Dimension150.7 mm × 80 mm × 101 mm
Shell materialPlastic
WeightApprox. 540 g
Shipping weight (estimated)0.86 kg

Other models in the Spot light controllers series

See all 3 models
ModelSize / key dataPriceAvailabilityLink
LS-LEAD-20-4-DY 5 VDC · 100 ~ 240 VAC, 50/60 Hz $269.00 2 in stock View
LS-LEAD-125-6-DY 24 VDC · 100 ~ 240 VAC, 50/60 Hz $329.00 3 in stock View
