Bar lights
Bar light with built-in overdrive, 517 x 65 x 38 mm (LS-LDLB500)
Model LS-LDLB500
- ColourWhite
- Emitting area500 mm
- SizeL517xW65xH38(mm)
- VoltageDC 24V
- Power100W
$309.00
In stock - ships the same business day (3 available, order by 2 PM ET)
1.3 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Suitable for illumination of long distance and large objects. Light source and control module integrated design, powerful function. DC 24V power supply, Constant current, no flicker, 0-255 level adjustment.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LDLB500 |
|---|---|
| Note | UV & IR light can be customized as required. |
Light
| Emitting surface (mm) | 500 |
|---|
Electrical
| Supply voltage | DC 24V |
|---|---|
| Power consumption | 100W |
Mechanical

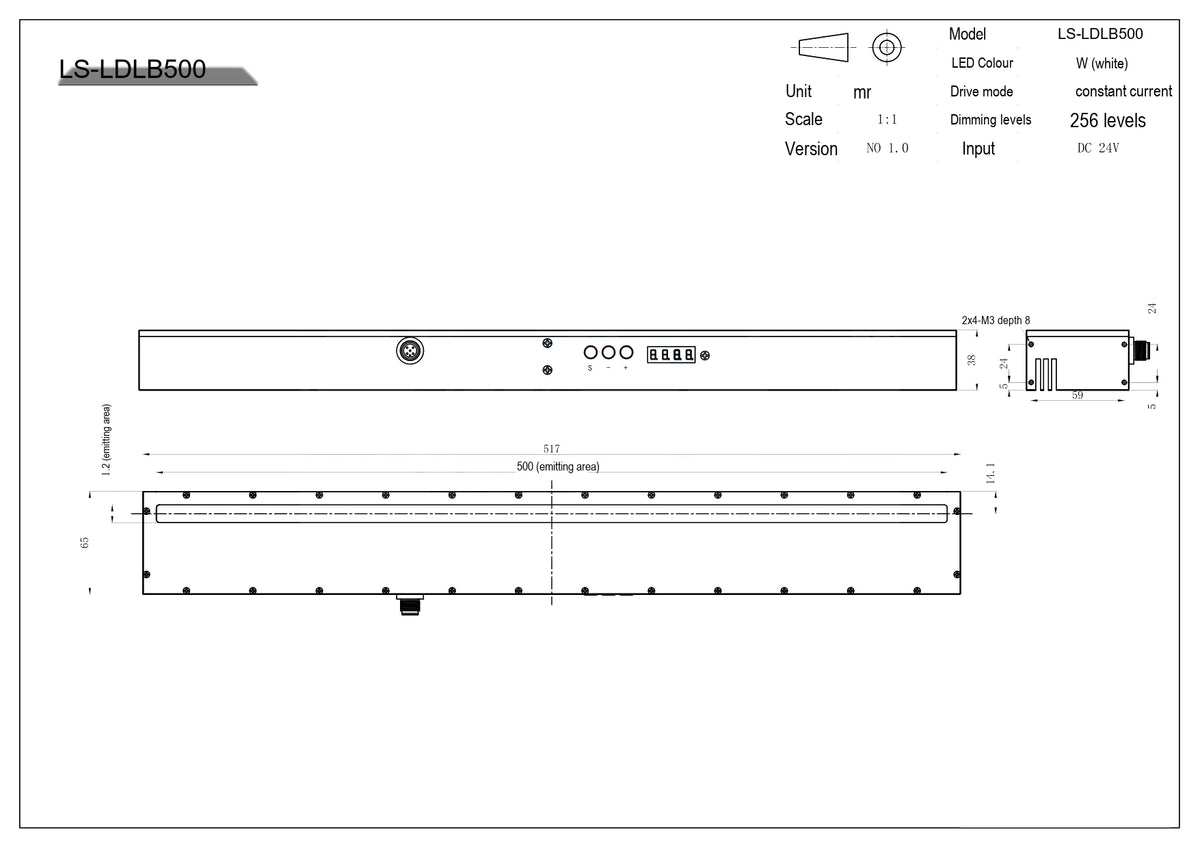

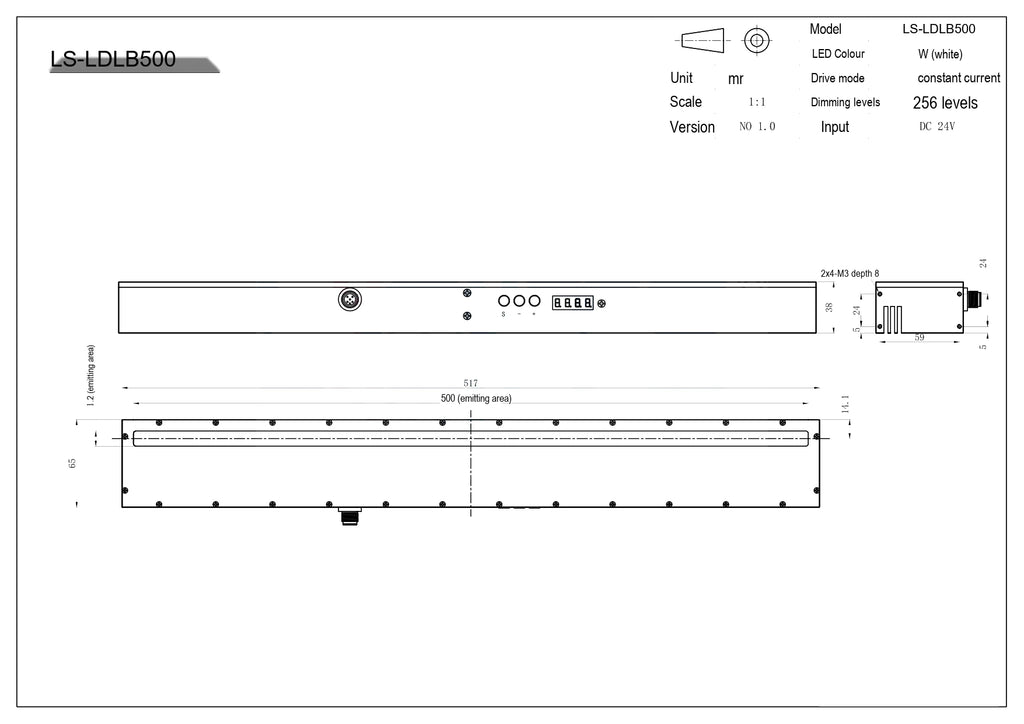

| Dimension | L517xW65xH38(mm) |
|---|---|
| Mounting holes | 2×4-M3 depth 8 |
| Shipping weight | 1.30 kg |
Other models in the Bar light with built-in overdrive (LDLB) series
See the category| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-LDLB300 | White · 295 x 11.2 mm | $199.00 | 5 in stock | View |
