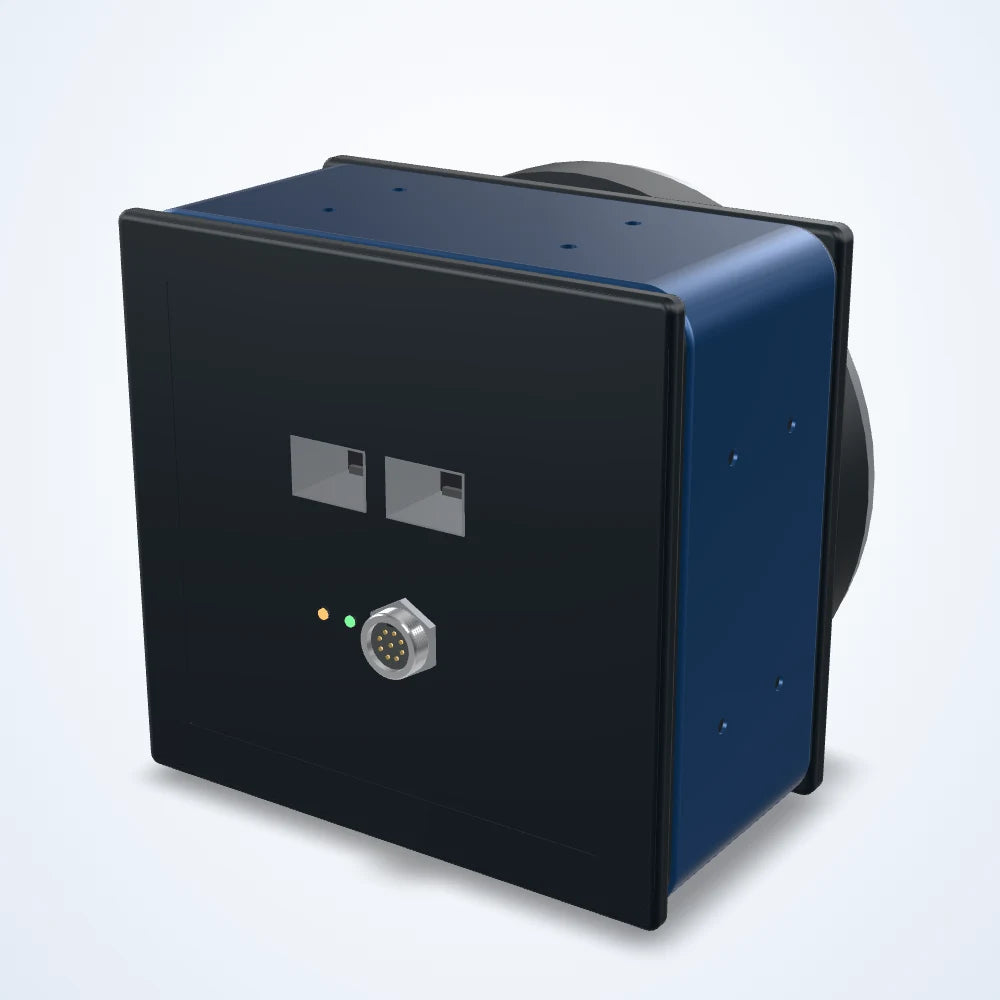

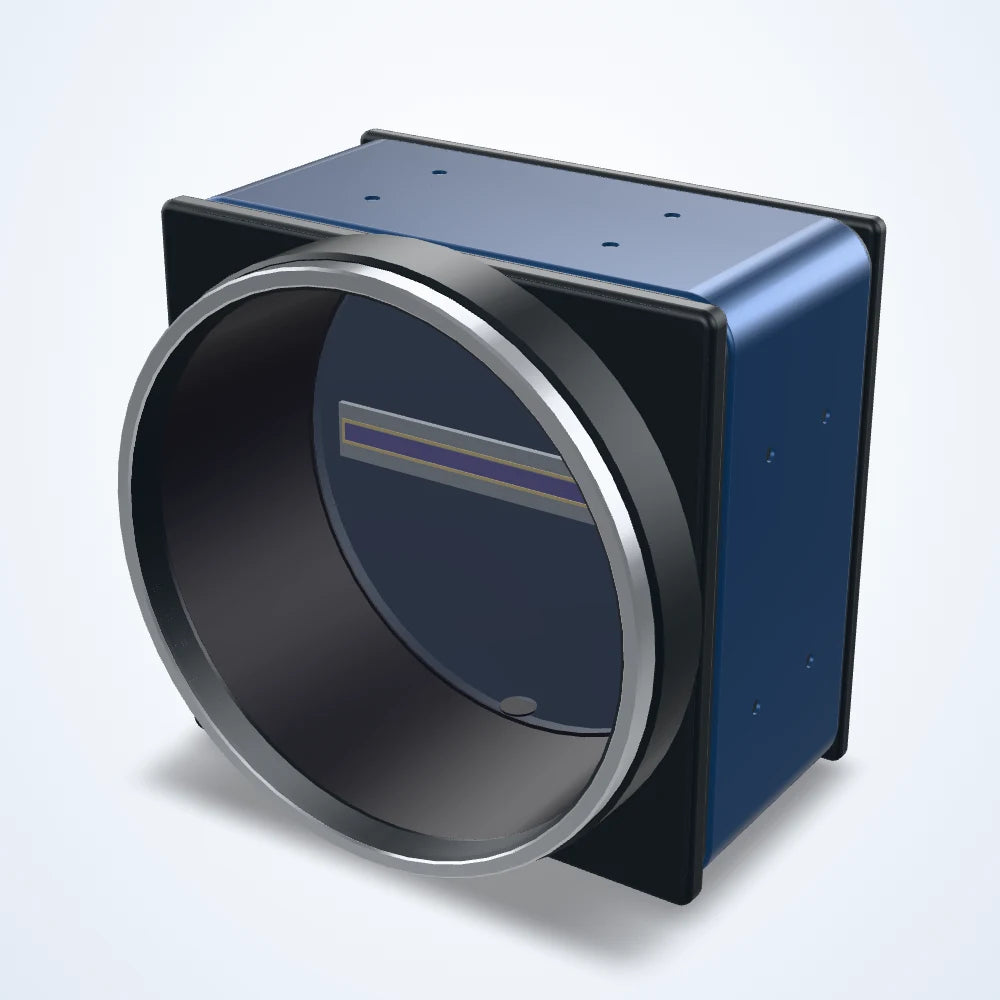

Rendered illustration: the actual product may differ in appearance.
Line scan cameras
16K 10GigE line scan camera, 5 μm, 23.7 kHz, M90 (LS-LCM-0057)
Model LS-LCM-0057
- Resolution16384×3
- SensorCMOS
- Interface10G optical fiber
- Speed23.7 kHz
- Lens mountM90
- Pixel size5um
$4,150.00
Ships in 3-4 weeks
1.32 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Line scan camera for continuous web, roll and conveyor inspection. CMOS sensor; 16384 x 3 pixels of 5 μm; line rate up to 23.7 kHz; 10GigE interface; M90 lens mount.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LCM-0057 |
|---|---|
| Image Mode | 3line |
| Data Rate | 1359 MB/S |
Sensor and imaging
| Max. line rate | 23.7 kHz |
|---|---|
| Resolution | 16384×3 |
| Sensor type | CMOS |
| Pixel size | 5um |
| Max.line rate | 23.7K (29K Burst Mode) |
| Dynamic range | 63.5 dB |
| Gain | 1×~16× |
| Exposure time | 2.95 us–40 ms |
| Image buffer | 8Gbit |
Interfaces and I/O
| Data interface | 10G optical fiber |
|---|
Electrical
| Strobe Outputs | 4 sequence strobe outputs |
|---|---|
| External Trigger Mode | Line / Frame / Line + Frame |
| Power supply | DC12 V-24 V(±10%) |
| Power consumption | 7.2 W@24 VDC |

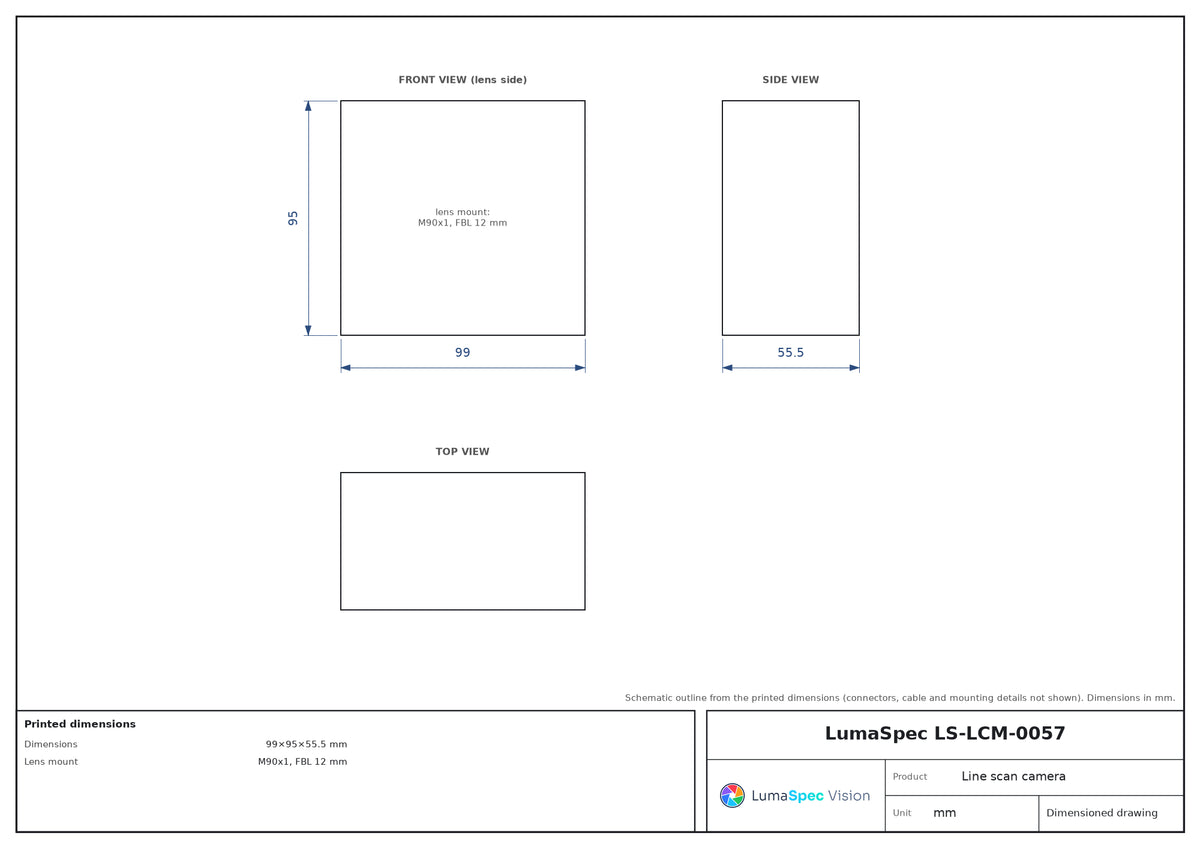

Mechanical
| Lens mount | M90x1, FBL 12 mm |
|---|---|
| Dimensions | 99×95×55.5 mm(903g) |
| Shipping weight | 1.32 kg |
Other models in the 10GigE line scan cameras (LS-LCM-S10) series
See the category| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-LCM-0056 | 16K, 10GigE, Color | $2,700.00 | Ships in 3-4 weeks | View |
