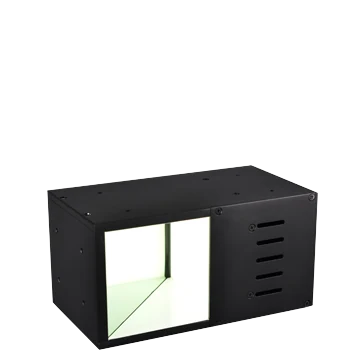

Coaxial Light, 137 x 70 mm, White (LS-LCDM-60-60-W)
  • Coaxial Light, 137 x 70 mm, White (LS-LCDM-60-60-W)
  • LS-LCDM-60-60-W dimensions (mm)

Coaxial lights

Coaxial Light, 137 x 70 mm, White (LS-LCDM-60-60-W)

Model LS-LCDM-60-60-W

  • ColourWhite
  • Emitting area61 mm × 60 mm
  • Size137 mm × 70 mm × 75 mm
  • Power36 W
$159.00

In stock - ships the same business day (5 available, order by 2 PM ET)

0.66 kg shipping weight

Volume pricing, Net 30 or a formal quote?

Coaxial Light, 137 x 70 mm, White. Aluminum-alloy housing with fan for better cooling High-power LEDs for higher brightness

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-LCDM-60-60-W

Interfaces and I/O

Connector typeSMR-03V-B
Cable length500 mm

Light

ColorWhite
Color temperature6000~7000K
Emitting area dimension61 mm × 60 mm
Diffuse plate includedIncluded

Environment and compliance

TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity20% to 85% RH (non-condensing)

Electrical

Power36 W
Supply voltage (derived)24 V DC, derived: all 370 lights of this range with the same connector type that state a voltage are rated 24 V

Mechanical

Dimension137 mm × 70 mm × 75 mm
Shipping weight (estimated)0.66 kg
