Flat Backlight, 30 x 30 mm, Blue (LS-LBSS-H-30-30-B2)
  • Flat Backlight, 30 x 30 mm, Blue (LS-LBSS-H-30-30-B2)

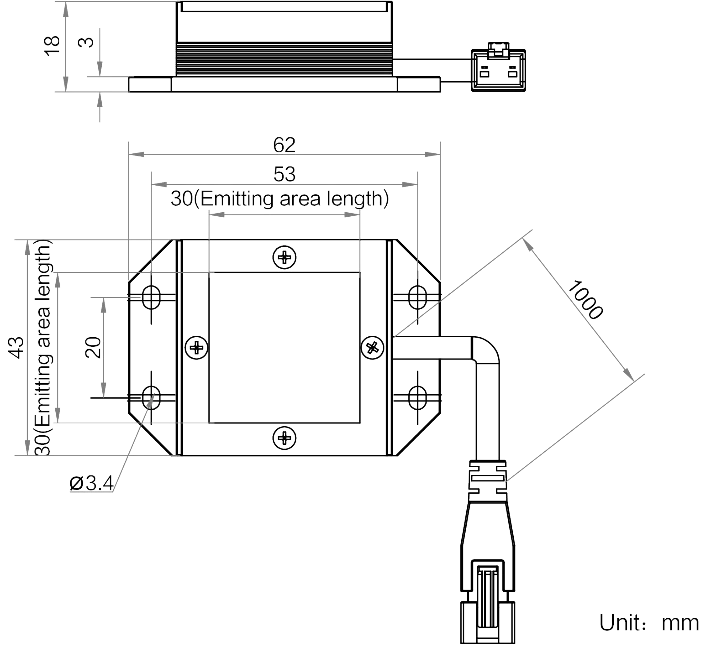

  • LS-LBSS-H-30-30-B2 dimensions (mm)

Backlights

Flat Backlight, 30 x 30 mm, Blue (LS-LBSS-H-30-30-B2)

Model LS-LBSS-H-30-30-B2

  • ColourBlue
  • Emitting area30 mm × 30 mm
  • Size62 mm × 43 mm × 18 mm
  • Voltage24 VDC
  • Power1.8 W
  • Wavelength470 nm
$79.00

In stock - ships the same business day (5 available, order by 2 PM ET)

0.23 kg shipping weight

Volume pricing, Net 30 or a formal quote?

Flat Backlight, 30 x 30 mm, Blue. Adopts high-density array LED design, and provides excellent lighting uniformity. Provides side mounting lugs to achieve flexible installation.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-LBSS-H-30-30-B2
Cooling modeNatural cooling

Interfaces and I/O

Connector typeSMR-03V-B
Cable length1 m

Light

ColorBlue
Center illuminance/irradiance≥ 270 lux@100 mm
Wavelength470 nm
Emitting area dimension30 mm × 30 mm
Diffuse plate includedIncluded

Environment and compliance

TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity20% RH to 90% RH (no condensation)

Electrical

Power1.8 W
Input voltage24 VDC

Mechanical

Dimension62 mm × 43 mm × 18 mm
Weight0.09 kg
Shipping weight (estimated)0.23 kg
