Backlights

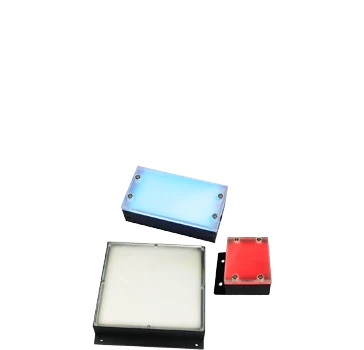

Flat Backlight, 265 x 185 mm, Red (LS-LBSS-250-150-R)
Model LS-LBSS-250-150-R
- ColourRed
- Emitting area250 mm × 150 mm
- Size265 mm × 185 mm × 20 mm
- Power36 W
- Wavelength625 nm
$209.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.66 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Flat Backlight, 265 x 185 mm, Red. Wide-angle SMD LEDs in a high-density layout for good uniformity Available in custom sizes and wavelengths
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LBSS-250-150-R |
|---|
Interfaces and I/O
| Connector type | SMR-03V-B |
|---|---|
| Cable length | 500 mm |
Light
| Color | Red |
|---|---|
| Wavelength | 625 nm |
| Emitting area dimension | 250 mm × 150 mm |
| Diffuse plate included | Included |
Environment and compliance
| Humidity | 20% to 85% RH (non-condensing) |
|---|---|
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
Electrical
| Power | 36 W |
|---|---|
| Supply voltage (derived) | 24 V DC, derived: all 370 lights of this range with the same connector type that state a voltage are rated 24 V |
Mechanical
| Dimension | 265 mm × 185 mm × 20 mm |
|---|---|
| Shipping weight (estimated) | 0.66 kg |
Other models in the Classic flat backlights series
See all 14 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-LBSS-48-28-W | 58 x 30 mm, White | $79.00 | 5 in stock | View |
| LS-LBSS-27-27-W | 37 x 37 mm, White | $79.00 | 5 in stock | View |
| LS-LBSS-50-50-W | 78 x 64 mm, White | $89.00 | 4 in stock | View |
| LS-LBSS-70-70-W | 98 x 84 mm, White | $99.00 | 3 in stock | View |
| LS-LBSS-100-100-W | 135 x 115 mm, White | $109.00 | 3 in stock | View |
| LS-LBSS-150-100-W | 180 x 114 mm, White | $129.00 | 5 in stock | View |
| LS-LBSS-120-120-W | 215 x 165 mm, White | $129.00 | 3 in stock | View |
| LS-LBSS-150-100-R | 180 x 114 mm, Red | $129.00 | 4 in stock | View |
| LS-LBSS-180-150-W | 215 x 165 mm, White | $169.00 | 5 in stock | View |
| LS-LBSS-200-160-W | 212 x 168 mm, White | $189.00 | 3 in stock | View |
| LS-LBSS-250-125-W | 262 x 149 mm, White | $189.00 | 4 in stock | View |
| LS-LBSS-200-200-W | 234 x 214 mm, White | $219.00 | 2 in stock | View |
| LS-LBSS-400-200-W | 420 x 240 mm, White | $359.00 | 3 in stock | View |
