Machine vision lenses

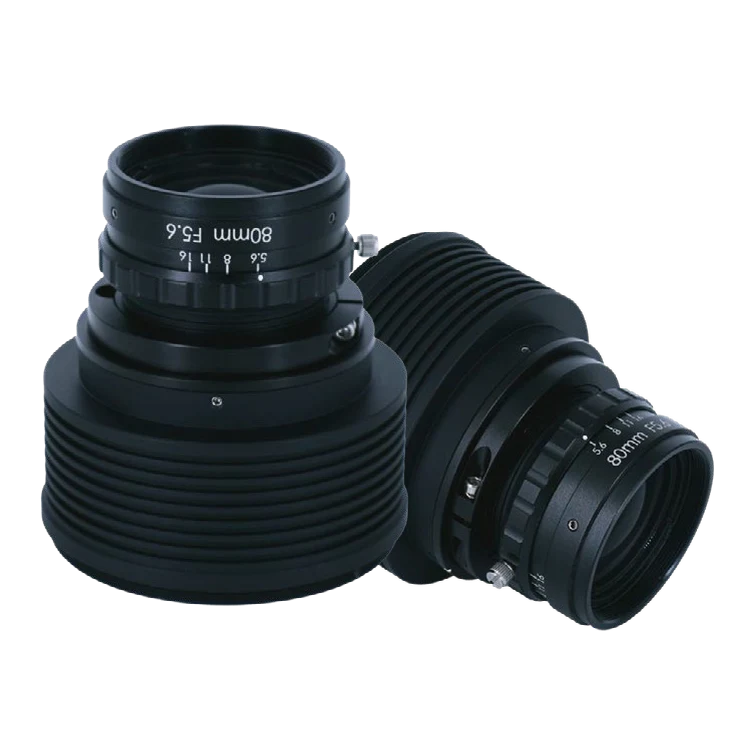

80 mm, 8K, M42-mount Line Scan Lens, 0.714x (LS-FFL-0325)
Model LS-FFL-0325
- Focal length80 mm
- Magnification< 0.714
- MountM42
- SensorLarge format
- Resolution8K7µm
$1,029.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.7 kg shipping weight
Volume pricing, Net 30 or a formal quote?
80 mm, 8K, M42-mount Line Scan Lens. 8K Line Scan Lens.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0325 |
|---|
Optics
| Focal length (mm) | 80 |
|---|---|
| Image circle (mm) | 60 |
| Iris (F/#) | 5.6-16 |
| Magnification range (X) | < 0.714 |
| Filter screw size | M43 * P0.75 |
Sensor and imaging
| Resolution (μm) | 8K7µm |
|---|
Mechanical
| Mount | M42\M58\M72\M90\M95\F |
|---|---|
| Shipping weight (estimated) | 0.70 kg |
