Machine vision lenses

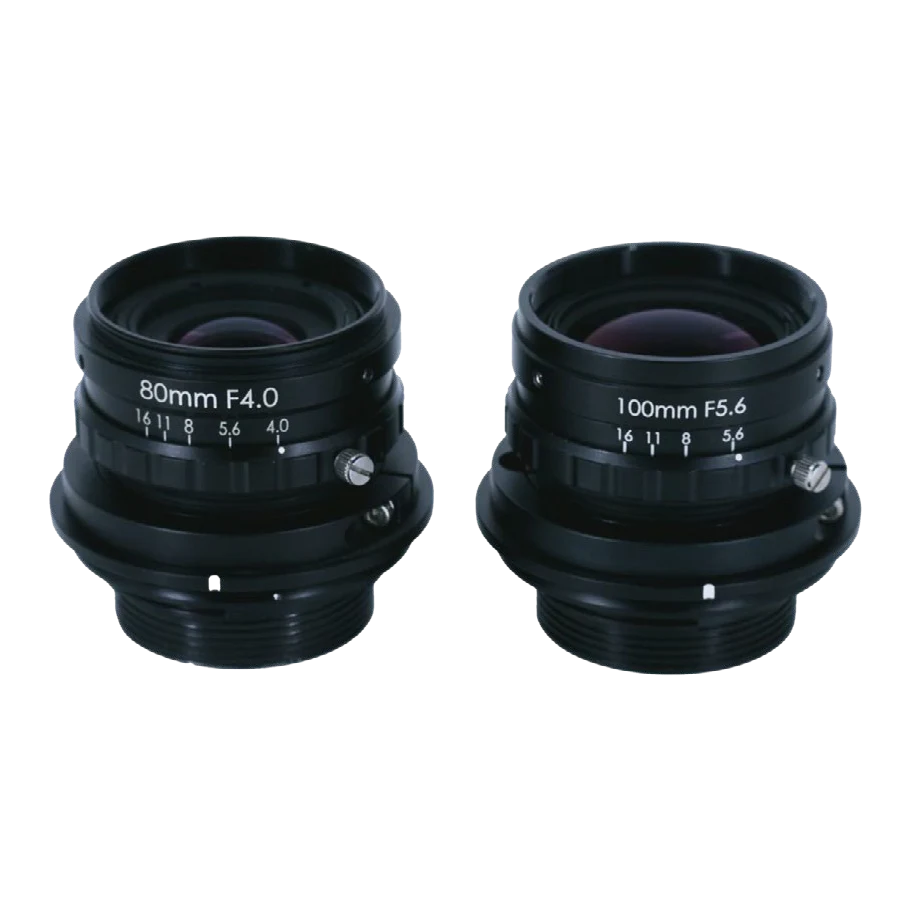

80 mm, 16K, M42-mount Line Scan Lens (LS-LBS8016K)
Model LS-LBS8016K
- Focal length80 mm
- Magnification< 0.886
- MountM42
- SensorLarge format
- Resolution16K5µm
$1,139.00
In stock - ships the same business day (4 available, order by 2 PM ET)
1.1 kg shipping weight
Volume pricing, Net 30 or a formal quote?
80 mm, 16K, M42-mount Line Scan Lens. 16K Line Scan Lens.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LBS8016K |
|---|
Optics
| Focal length (mm) | 80 |
|---|---|
| Image circle (mm) | 82 |
| Iris (F/#) | 4.0-16 |
| Magnification range (X) | < 0.886 |
| Filter screw size | M43 * P0.75 |
Sensor and imaging
| Resolution (μm) | 16K5µm |
|---|
Mechanical
| Mount | M42\M58\M72\M90\M95\F |
|---|---|
| Shipping weight (estimated) | 1.10 kg |
Mounting and drawing data
Image circle: 80 mm in the series overview, 82 mm in the specification table.
Other models in the 16K line scan lens (LS-LBS8016K / LS-LBS10016K, image circle 82 mm) series
See the category| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-LBS10016K | 100 mm, 16K, M42-mount | $1,169.00 | 4 in stock | View |
