Machine vision lenses
120 mm, 16K, M58-mount Line Scan Lens, 0.8x (LS-LBS12016K-080)
Model LS-LBS12016K-080
- Focal length120 mm
- Magnification0.80x
- MountM58
- Working distance301 mm
- Resolution16K5µm
$1,209.00
In stock - ships the same business day (4 available, order by 2 PM ET)
1.1 kg shipping weight
Volume pricing, Net 30 or a formal quote?
120 mm, 16K, M58-mount Line Scan Lens. 16K Line Scan Lens.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LBS12016K-080 |
|---|---|
| Conjugate distance (mm) | 564 |
Optics
| Focal length (mm) | 120 |
|---|---|
| Iris (F/#) | 4.0-16 |
| Magnification (x) | 0.80 |
| Working distance (mm) | 301 |
| Distortion (%) | -0.22 |
| Filter screw size | M48 * P0.75 |
Sensor and imaging
| Resolution (μm) | 16K5µm |
|---|
Mechanical
| Mount | M58\M72\M90\M95 |
|---|---|
| Shipping weight (estimated) | 1.10 kg |

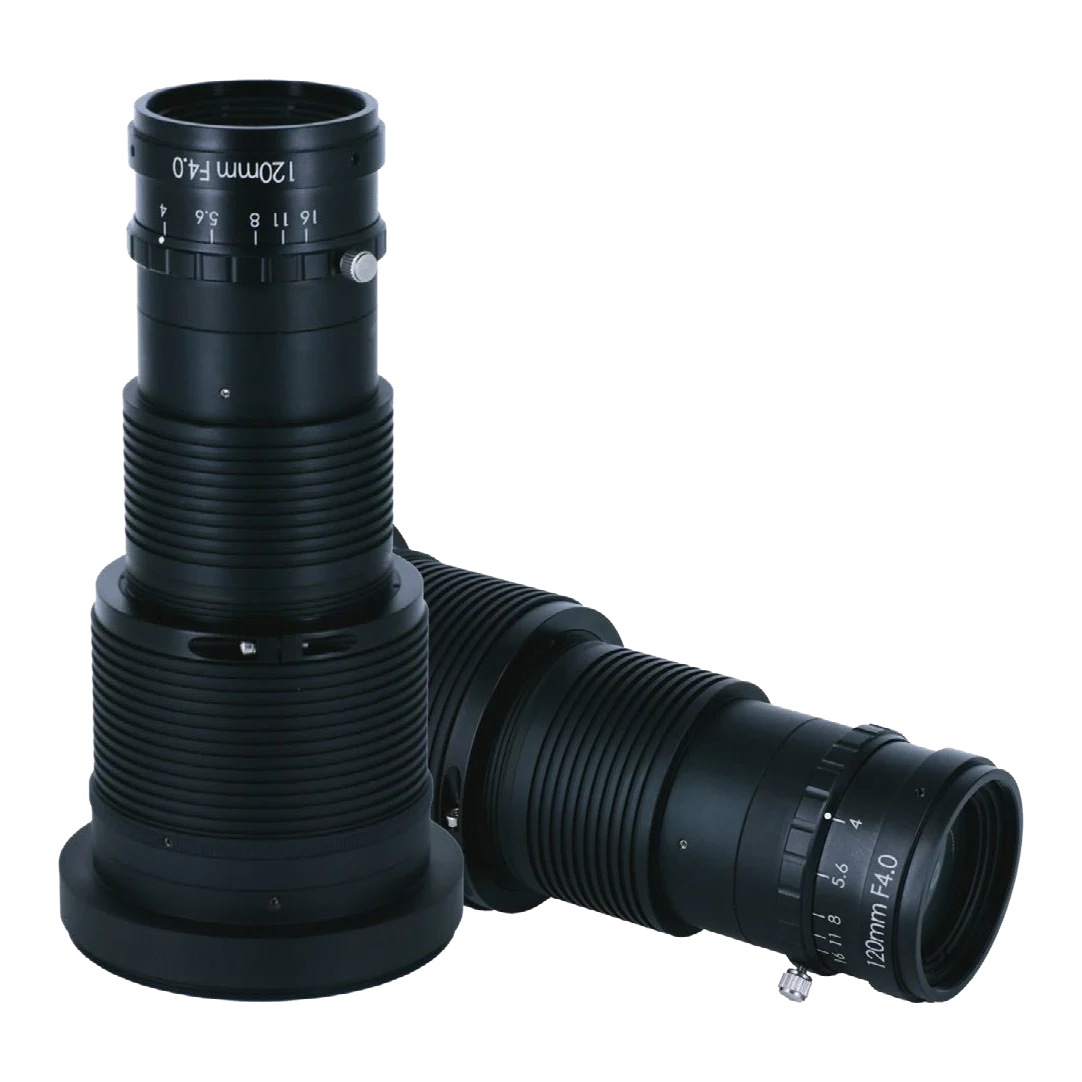

Photo shows a representative model of this series; see the specifications for this model.
