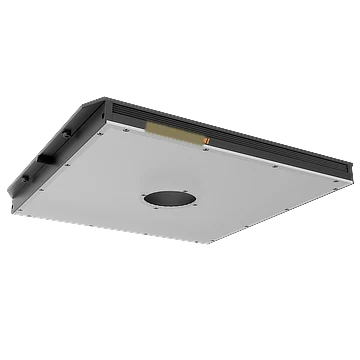

Flat Backlight with Center Hole, 100 x 100 mm, White (LS-LBES-H-100-100-W2)
  • Flat Backlight with Center Hole, 100 x 100 mm, White (LS-LBES-H-100-100-W2)
  • LS-LBES-H-100-100-W2 dimensions (mm)

Backlights

Flat Backlight with Center Hole, 100 x 100 mm, White (LS-LBES-H-100-100-W2)

Model LS-LBES-H-100-100-W2

  • ColourWhite
  • Emitting area100 mm × 100 mm
  • Size132 mm × 113 mm × 18 mm
  • Voltage24 VDC
  • Power12 W
$109.00

In stock - ships the same business day (2 available, order by 2 PM ET)

0.52 kg shipping weight

Volume pricing, Net 30 or a formal quote?

Flat Backlight with Center Hole, 100 x 100 mm, White. Adopts high-density array LED design. Adopts middle opening design (circular hole/square hole) to achieve front lighting.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-LBES-H-100-100-W2

Interfaces and I/O

Connector typeSMR-03V-B
Cable length1 m

Light

ColorWhite
Center illuminance/irradiance≥ 7000 lux@200 mm
Color temperature6000 ~ 7000K
Emitting area dimension100 mm × 100 mm
Diffuse plate includedIncluded

Environment and compliance

TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity20% RH to 90% RH (no condensation)

Electrical

Power12 W
Input voltage24 VDC

Mechanical

Dimension132 mm × 113 mm × 18 mm
Bore dimensionØ 40 mm
Weight0.3 kg
Shipping weight (estimated)0.52 kg
