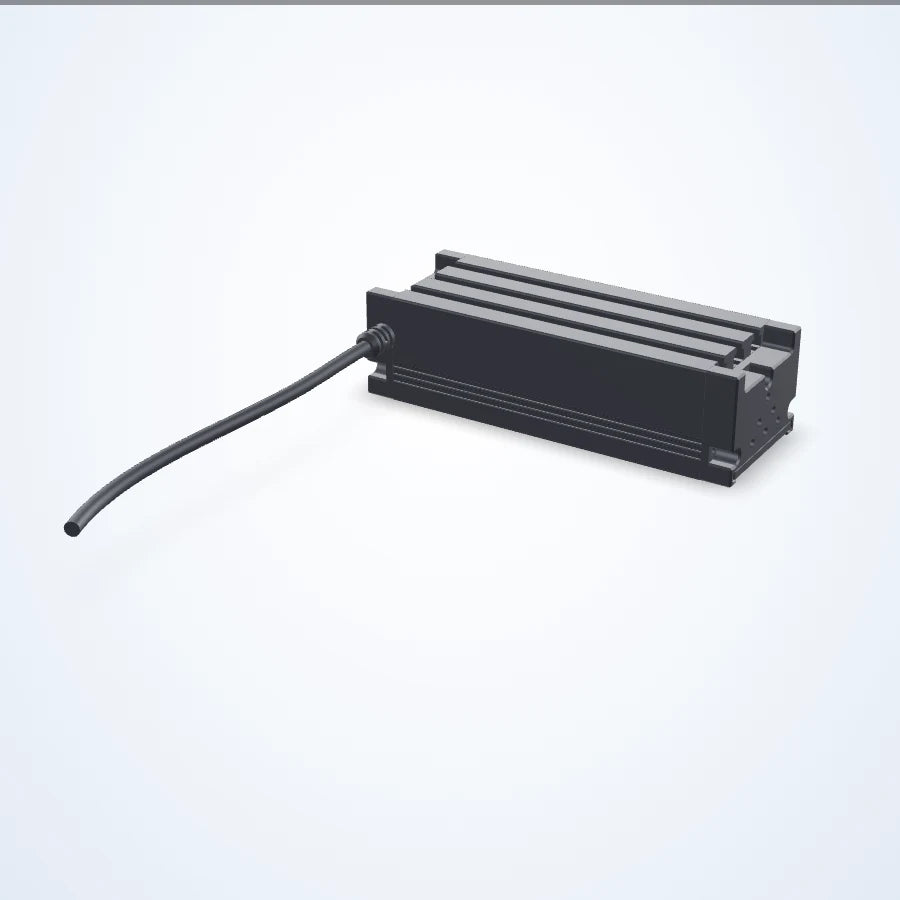

  • LS-LB-86X30 3D render
  • LS-LB-86X30 dimensions (mm)
  • LS-LB-86X30 3D model

Bar lights

86 x 30 mm LED Bar Light (LS-LB-86X30)

Model LS-LB-86X30

  • ColourRed, Green, Blue, White
  • Emitting area86x30 mm
  • Size98x34x24 mm
  • Voltage24 V
  • Power4.5 W
$79.00

In stock - ships the same business day (5 available, order by 2 PM ET)

0.3 kg shipping weight

Color

Volume pricing, Net 30 or a formal quote?

86 x 30 mm LED Bar Light. LED bar light for surface defect detection, image scanning, LCD panel inspection, pin flatness testing and slender-object damage/appearance inspection. Illumination width, length and size can be customized; wavelength/colour temperature options and colour combinations are available, with an adjustable illumination angle and optional diffuser plate.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-LB-86X30

Interfaces and I/O

Cable length500 mm (per dimension drawings)

Light

LED rows6
Emitting area (mm)86x30
ColoursRed, Green, Blue, White
LED colour options (legend)R / G / B / W / IR / UV
Colours shown per modelR, G, B, W

Electrical

Voltage (V)24
Power R (W)3
Power W/B/G (W)4.5

Mechanical

Outer size L x W x H (mm)98x34x24
Shipping weight (estimated)0.30 kg

Photo shows a representative model of this series; see the specifications for this model.

Mounting and drawing data

drawing LS-LB-AX30: overall length A+12, 34 high x 24 deep, 30 emitting width, 4-M3 depth 4 holes at 9.0 spacing, 18 slot pitch, M3 nut (T-slot) mounting, 500 mm cable
