Lens accessories

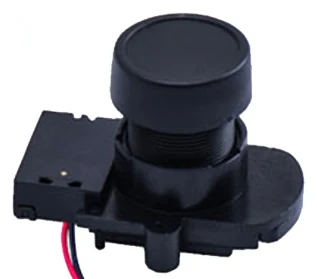

IR-cut removable filter switcher (ICR) for board/bullet/box cameras (LS-IRCUTREMOVABLEICR)
Model LS-IRCUTREMOVABLEICR
- TypeExtension tubes
- Effective area8.6 x 6.8 mm
- Drive voltage3.3~12 V
- DC resistance40 & 60 Ω
$39.00
In stock - ships the same business day (5 available, order by 2 PM ET)
0.21 kg shipping weight
Volume pricing, Net 30 or a formal quote?
IR-cut removable filter switcher (ICR) for board/bullet/box cameras. IR-cut removable filter for board, bullet and box cameras to improve imaging quality.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-IRCUTREMOVABLEICR |
|---|---|
| Effective area | 8.6 x 6.8 mm |
| DC resistance | 40 & 60 Ω |
| Hole distance | 20 & 22 mm (option) |
| Pulse | 100~500 ms |
| Life | 100,000 times |
Light
| Center wavelength | T=50% 650 nm +/- 10%nm (as printed) |
|---|
Electrical
| Drive voltage | 3.3~12 V |
|---|
Mechanical
| Shipping weight (estimated) | 0.21 kg |
|---|
