Industrial PCs

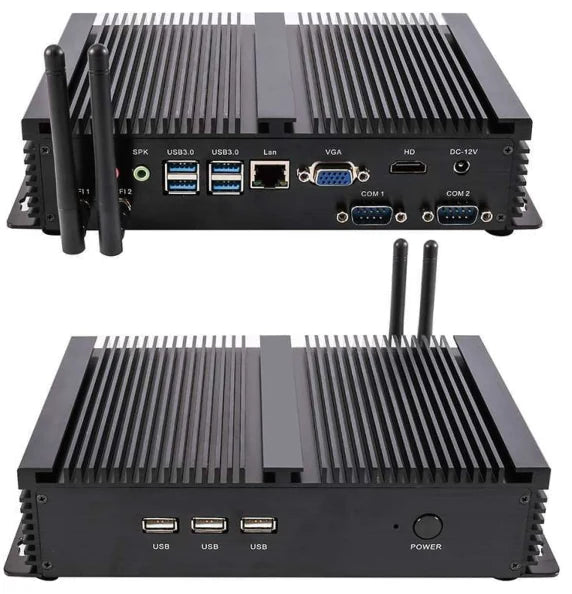

Fanless industrial PC, Intel Core i7-8550U (LS-IPC-0060)
Model LS-IPC-0060
- ProcessorIntel Core i7-8550U
- Storage-20/+85 Centigrade
- OSWindows 7/Windows 8/Windows 10/Linux
- LAN ports1 LAN port
$519.00
Ships in 2-3 weeks
2.1 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Fanless industrial PC, Intel Core i7-8550U. Fanless aluminium industrial computer to run machine-vision software next to the line; memory: 2 x SO-DIMM DDR4 Slot; Support 8GB/16GB/32GB; Dual Channel, DDR4-2400, LPDDR3-2133. Sold barebone or with 8 GB RAM + 256 GB SSD fitted; Wi-Fi on request.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-IPC-0060 |
|---|---|
| Configuration | Barebone: no memory, storage, Wi-Fi module or operating system; or choose the 8 GB RAM + 256 GB SSD option (fitted and tested, no operating system). Wi-Fi on request |
| TDP | 15W |
| BIOS | AMI BIOS, ACPI supported |
| PXE | YES |
| Audio | ALC897 chip, 7.1 channel sound; Intel Lynx Point-LP HDA |
| Video | Intel UHD Graphics 620 |
| Wi-Fi module | 1 x mini PCIE-half port for Wi-Fi module |
| Antenna | 2 x inner RF cables and 2 x external antennas |
| Switch | 1 x Power On/Off Switch |
| LAN | 1 x RJ45 Giga LAN |
| COM | 2 x RS232 COM |
| MSATA | 1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s; 1 x M.2 slot for M.2 SSD, support 6Gb/s |
| SATA | 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s |
| Cooling | Fanless |
| Functions | Calls on function automatically, Wake-On-LAN |
| In the box | 1x Mini PC, 1x Power Adapter, 1x Power Cord, 1x Screws Bag |
| Optional | Wi-Fi antennas, 1x HDMI cable, 1x User Manual, 1x Long Screws Bag |
Interfaces and I/O
| Network | Onboard Realtek RTL8168/8111/8112 PCI-E Gigabit Ethernet NIC, 10/100Mbps/1000Mbps BaseT LAN |
|---|---|
| USB | 3 x USB2.0, 4 x USB3.0 |
| Display | 1 x VGA, 1 x HDMI |
| Audio ports | 1 x MIC, 1 x SPK |
Light
| LED | 1 x LED |
|---|
Environment and compliance
| Operating temperature | 0/+70 Centigrade |
|---|---|
| Storage temperature | -20/+85 Centigrade |
| Relative humidity | 0%~90% (non-condensing) |
| Certification | CE, FCC, RoHS (manufacturer) |
Computing
| Processor | Intel Core i7-8550U |
|---|---|
| Processor details | Onboard Intel Core i7-8550U 1.8GHz Max 4.0GHz (Turbo boost Technology) 4 Cores 8 Threads |
| Chipset | Intel KABYLAKE |
| Memory | 2 x SO-DIMM DDR4 Slot; Support 8GB/16GB/32GB; Dual Channel, DDR4-2400, LPDDR3-2133 |
| Operating system | Windows 7/Windows 8/Windows 10/Linux |
Electrical
| Power input | DC 100-240V AC/50-60Hz |
|---|---|
| Power output | DC +12V~+19V, recommend 12V/5A |
| Power | 1 x 12V DC In |
Mechanical

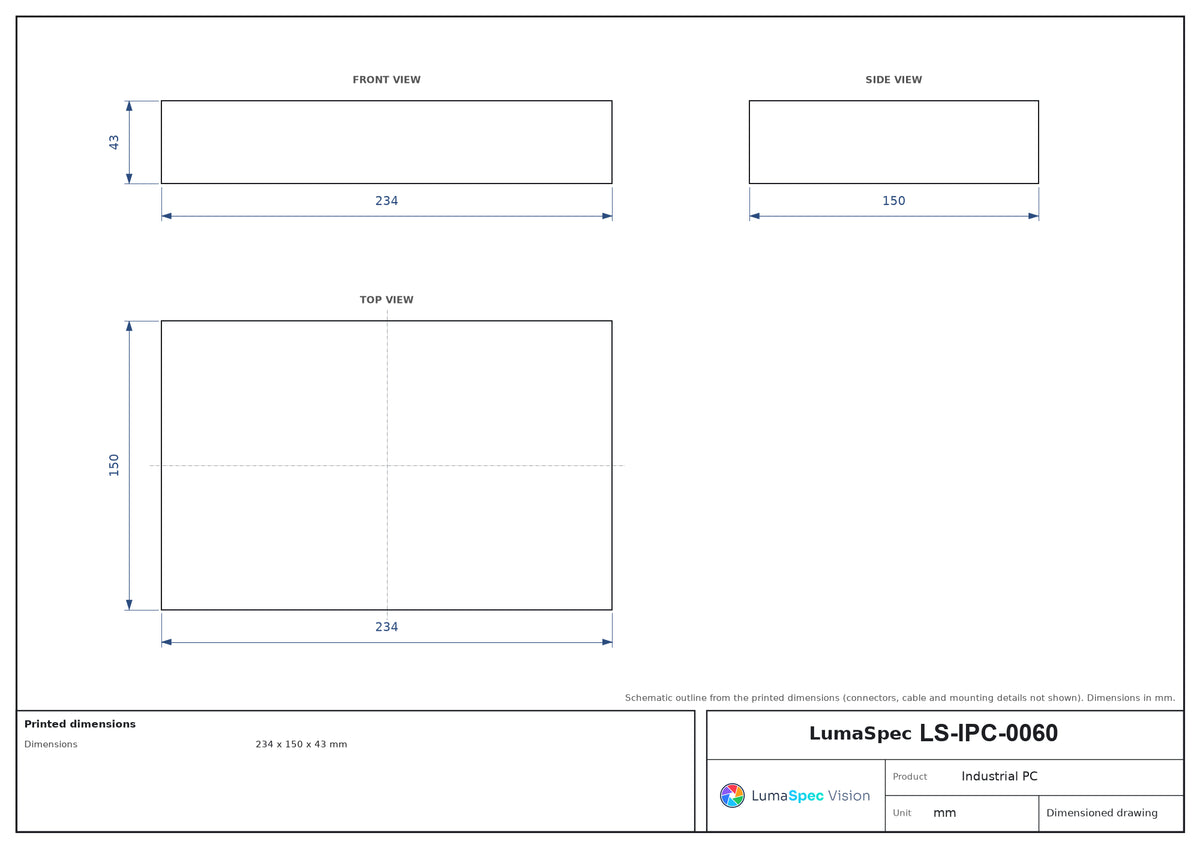

| Dimensions | 234 x 150 x 43 mm |
|---|---|
| Weight | Net 1.8kg, Gross 2.1kg |
| Shell | Black color aluminum alloy |
| Mounting | 4 Mounting holes on case |
