Industrial PCs

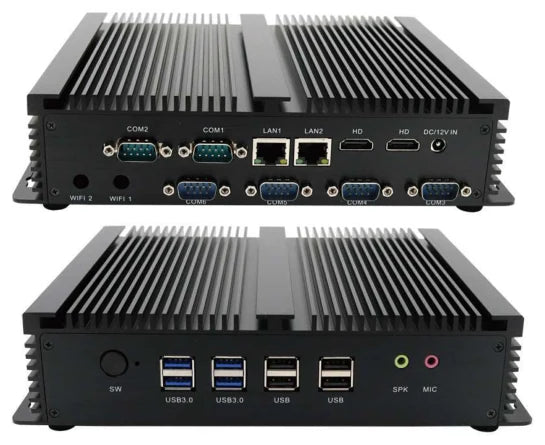

LS-IPC-S16 fanless industrial PCs
- 7 models
- from $299.00
- Series LS-IPC-S16
The LS-IPC-S16 fanless industrial PCs is a range of 7 industrial pcs from LumaSpec Vision, from $299.00. It comes in 7 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- Intel Core i3-4010U, Intel Core i3-7020U, Intel Core i5-4200U, Intel Core i5-8250U, Intel Core i7-10510U, Intel Core i7-4500U, Intel Core i7-8550U
- LAN ports
- 1 LAN port, 2 LAN ports
- USB 3 ports
- 3-4 USB 3 ports
- Processor
- Intel Core i7, Intel Core i5, Intel Core i3
- Form factor
- Box PC
Features
- 2 Intel Gigabit RJ45 LAN, 2 HDMI display output and 6 RS232 COM ports
- One embedded SIM card slot for 3G/4G module for option
- Full aluminium alloy black shell for heat dissipation
- Fanless system without cooling fan, fit for industrial grade field, work as long as 24 hours
- Low consumption TDP only 15W and can be mounted on the wall
- Support PXE and call on function automatically
- Brushed full aluminium alloy black shell
- Fanless system without cooling fan, no noise, work as long as 24 hours
Typical uses
- Machine-vision inspection PC
- Line-side data collection and control
All 7 models in the LS-IPC-S16 fanless industrial PCs
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-IPC-0055 | Intel Core i3-4010U | 234 x 150 x 50 mm | 6 x COM RS232 ports | Intel QS77 Express High Speed Chipset | from $299.00 | View |
| LS-IPC-0056 | Intel Core i5-4200U | 234 x 150 x 50 mm | 6 x COM RS232 ports | Intel QS77 Express High Speed Chipset | from $319.00 | View |
| LS-IPC-0058 | Intel Core i3-7020U | 234 x 150 x 43 mm | 2 x RS232 COM | Kaby Lake | from $329.00 | View |
| LS-IPC-0057 | Intel Core i7-4500U | 234 x 150 x 50 mm | 6 x COM RS232 ports | Intel QS77 Express High Speed Chipset | from $369.00 | View |
| LS-IPC-0059 | Intel Core i5-8250U | 234 x 150 x 43 mm | 2 x RS232 COM | Intel KABYLAKE | from $419.00 | View |
| LS-IPC-0060 | Intel Core i7-8550U | 234 x 150 x 43 mm | 2 x RS232 COM | Intel KABYLAKE | from $519.00 | View |
| LS-IPC-0061 | Intel Core i7-10510U | 234 x 150 x 43 mm | 2 x RS232 COM | Intel KABYLAKE | from $639.00 | View |
