Fanless industrial PC, Intel Core i7-10510U (LS-IPC-0040)
Model LS-IPC-0040
- ProcessorIntel Core i7-10510U
- Memory2xSO-DIMM DDR3L Slot, max 32GB DDR4
- OSWindows / Linux
- LAN ports2 LAN ports
$699.00
Ships in 2-3 weeks
3.5 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Fanless industrial PC, Intel Core i7-10510U. Fanless aluminium industrial computer to run machine-vision software next to the line; memory: 2xSO-DIMM DDR3L Slot, max 32GB DDR4; storage: 1xMSATA3.0 SSD, 1 M.2 for NVME 2280 SSD and 1xSATA3.0 HDD/SSD. Sold barebone or with 8 GB RAM + 256 GB SSD fitted; Wi-Fi on request.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-IPC-0040 |
|---|---|
| Configuration | Barebone: no memory, storage, Wi-Fi module or operating system; or choose the 8 GB RAM + 256 GB SSD option (fitted and tested, no operating system). Wi-Fi on request |
| In the box | Mini PC device, Power Adapter, dual wifi antennas(optional) |
Interfaces and I/O
| I/O | HDMI, VGA, Reset, CMOS clear button, SIM Card slot, 4USB2.0, MIC, SPK, 2WiFi holes, Switch On/Off, DC IN, USB3.0, 2RJ45 Giga LAN, 6COM(4 COM can change to RS422/485), GPIO, 2Pin Phoenix terminal power supply input, PS/2(keyboard and mouse 2 in 1), DIP Switch, support ATX/AT boot mode |
|---|---|
| Wireless | Inbuilt 3G/4G/WiFi&Bluetooth with Dual antennas(optional), Extended IO, support LPC, USB, PCIE |
Environment and compliance
| Certification | CE, FCC, RoHS (manufacturer) |
|---|
Computing
| Processor | Intel Core i7-10510U |
|---|---|
| Processor details | Onboard Intel Comet Lake Intel Core i7 10510U 1.8GHz up to 4.90GHz Quad Cores 8 Threads, Intel UHD Graphics, TDP 45W |
| Memory | 2xSO-DIMM DDR3L Slot, max 32GB DDR4 |
| Storage | 1xMSATA3.0 SSD, 1 M.2 for NVME 2280 SSD and 1xSATA3.0 HDD/SSD |
| Operating system | Windows / Linux |
Mechanical

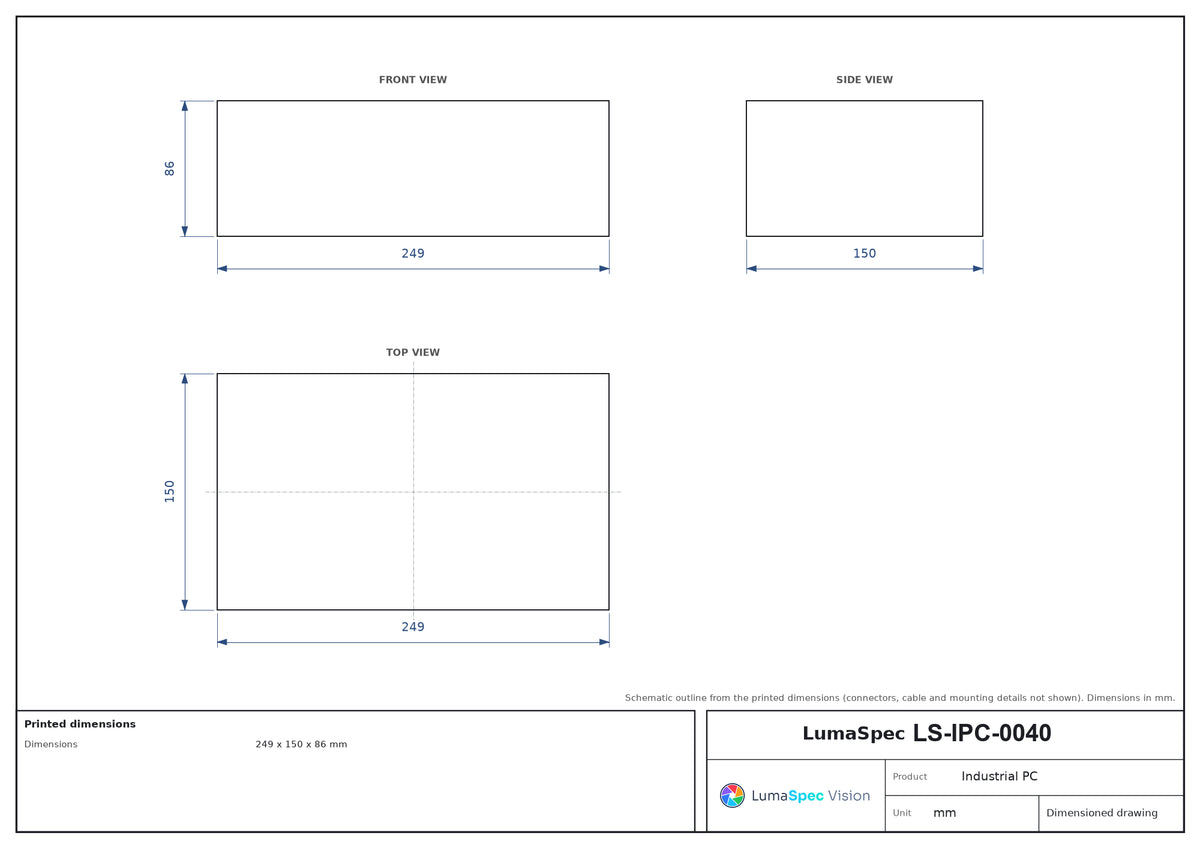

| Dimensions | 249 x 150 x 86 mm |
|---|---|
| Weight | 3.0 kg per set |
