Industrial PCs
Fanless industrial PC, Intel Core i7-8550U (LS-IPC-0038)
Model LS-IPC-0038
- ProcessorIntel Core i7-8550U
- Memory2xSO-DIMM DDR3L Slot, max 32GB DDR4
- OSWindows / Linux
- LAN ports2 LAN ports
$579.00
Ships in 2-3 weeks
3.5 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Fanless industrial PC, Intel Core i7-8550U. Fanless aluminium industrial computer to run machine-vision software next to the line; memory: 2xSO-DIMM DDR3L Slot, max 32GB DDR4; storage: 1xMSATA3.0 SSD, 1 M.2 for NVME 2280 SSD and 1xSATA3.0 HDD/SSD. Sold barebone or with 8 GB RAM + 256 GB SSD fitted; Wi-Fi on request.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-IPC-0038 |
|---|---|
| Configuration | Barebone: no memory, storage, Wi-Fi module or operating system; or choose the 8 GB RAM + 256 GB SSD option (fitted and tested, no operating system). Wi-Fi on request |
| In the box | Mini PC device, Power Adapter, dual wifi antennas(optional) |
Interfaces and I/O

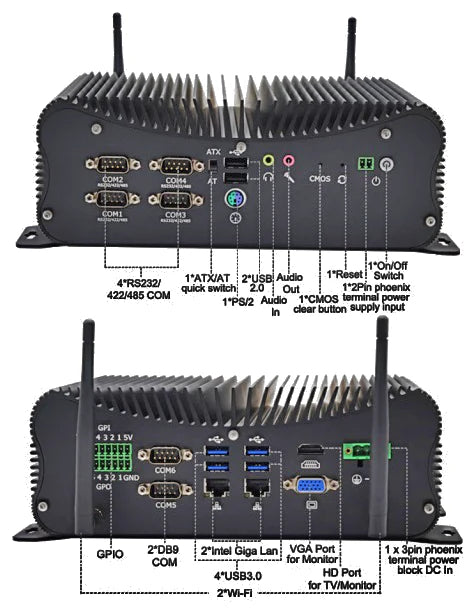

| I/O | HDMI, VGA, Reset, CMOS clear button, SIM Card slot, 4USB2.0, MIC, SPK, 2WiFi holes, Switch On/Off, DC IN, USB3.0, 2RJ45 Giga LAN, 6COM(4 COM can change to RS422/485), GPIO, 2Pin Phoenix terminal power supply input, PS/2(keyboard and mouse 2 in 1), DIP Switch, support ATX/AT boot mode |
|---|---|
| Wireless | Inbuilt 3G/4G/WiFi&Bluetooth with Dual antennas(optional), Extended IO, support LPC, USB, PCIE |
Environment and compliance
| Certification | CE, FCC, RoHS (manufacturer) |
|---|
Computing
| Processor | Intel Core i7-8550U |
|---|---|
| Processor details | Intel Core i7-8550U Processor, 8M Cache, up to 4.0 GHz, Intel UHD Graphics 620 |
| Memory | 2xSO-DIMM DDR3L Slot, max 32GB DDR4 |
| Storage | 1xMSATA3.0 SSD, 1 M.2 for NVME 2280 SSD and 1xSATA3.0 HDD/SSD |
| Operating system | Windows / Linux |
Mechanical

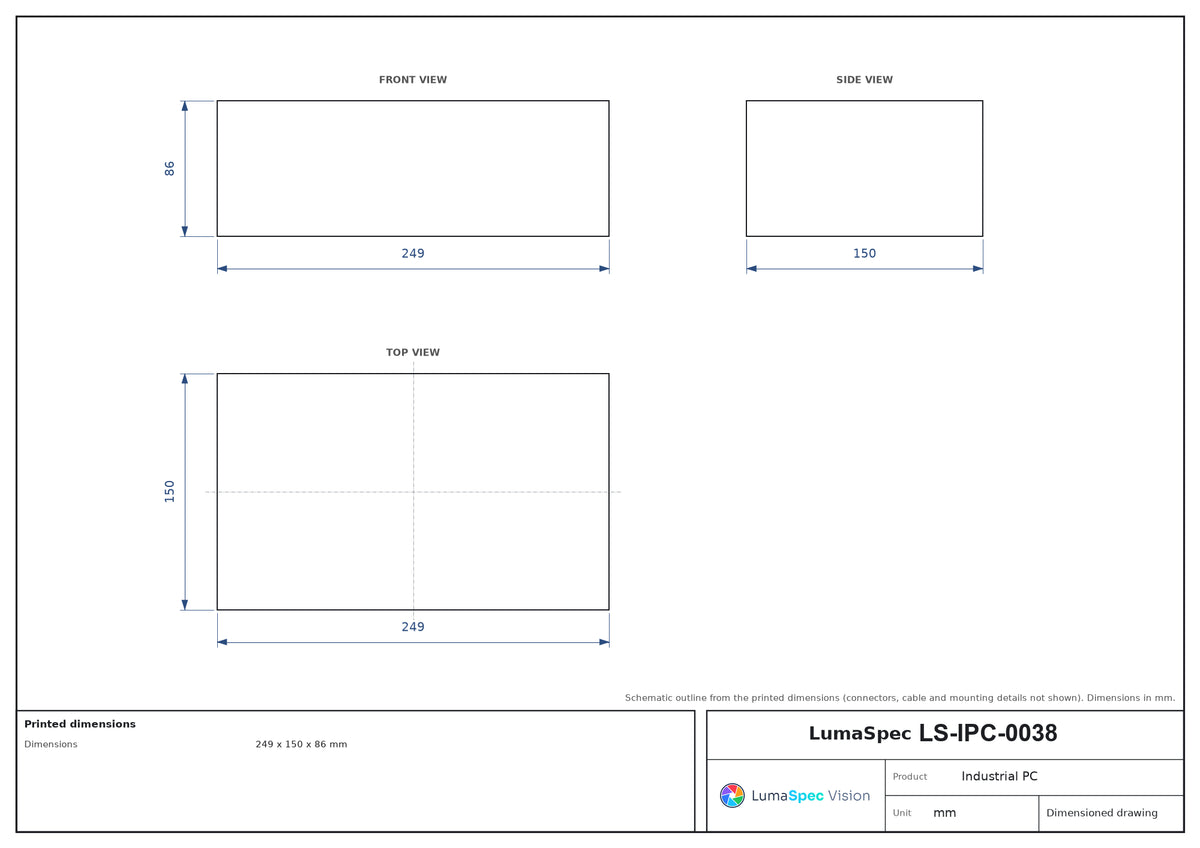

| Dimensions | 249 x 150 x 86 mm |
|---|---|
| Weight | 3.0 kg per set |
Other models in the LS-IPC-S12 fanless industrial PCs series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-IPC-0035 | Intel Core i7-4500U | from $429.00 | Ships in 2-3 weeks | View |
| LS-IPC-0036 | Intel Core i5-7267U | from $439.00 | Ships in 2-3 weeks | View |
| LS-IPC-0037 | Intel Core i5-8250U | from $479.00 | Ships in 2-3 weeks | View |
| LS-IPC-0039 | Intel Core i5-10210U | from $559.00 | Ships in 2-3 weeks | View |
| LS-IPC-0040 | Intel Core i7-10510U | from $699.00 | Ships in 2-3 weeks | View |
