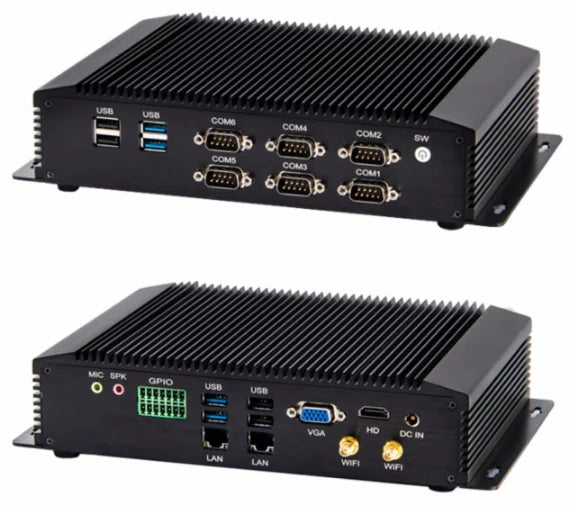

Fanless industrial PC, Intel Core i7-4500U, 230 x 175 x 50 mm (LS-IPC-0021)
  • Fanless industrial PC, Intel Core i7-4500U, 230 x 175 x 50 mm (LS-IPC-0021)

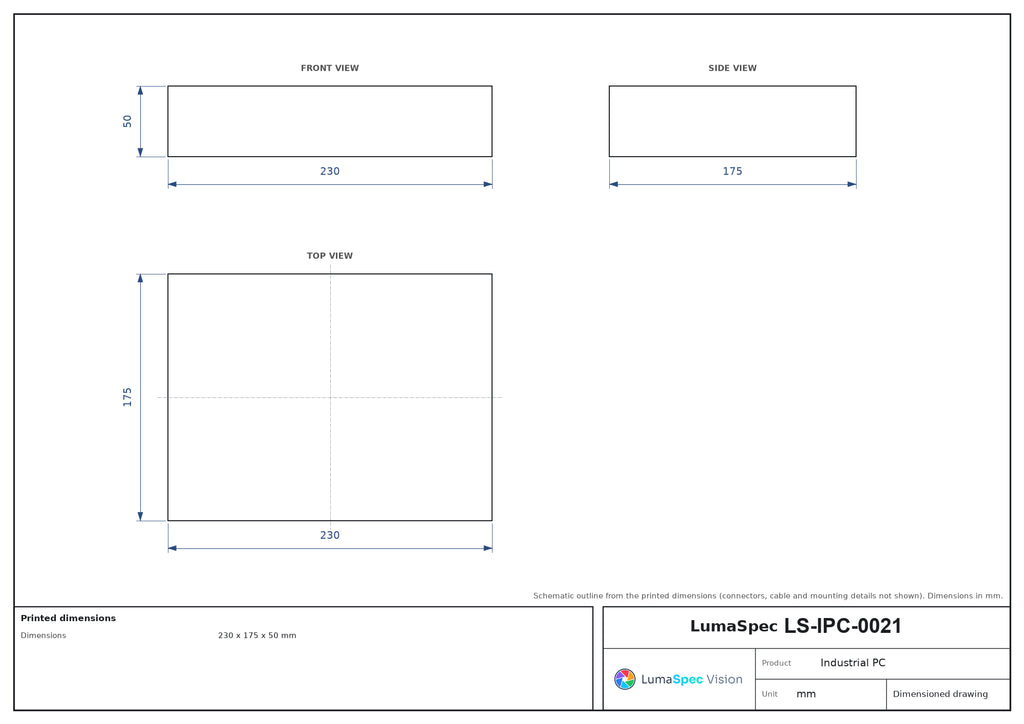

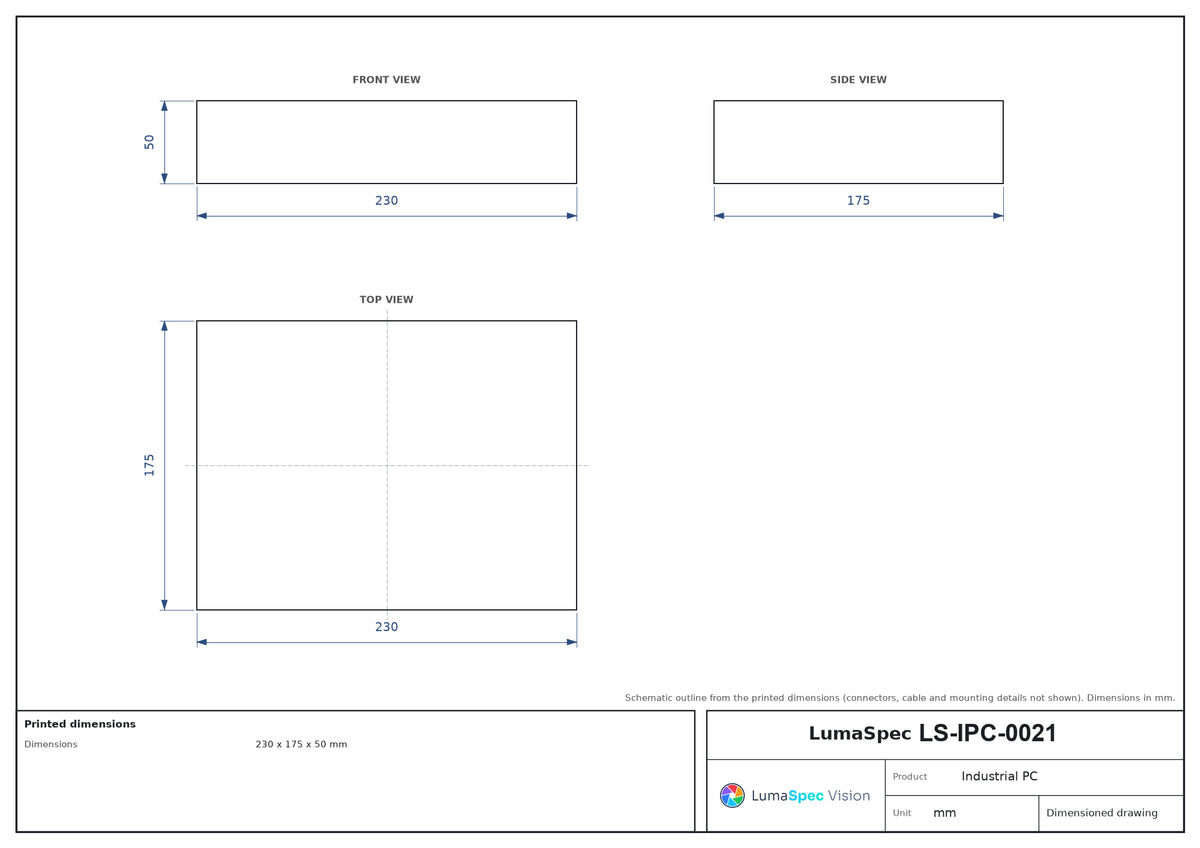

  • LS-IPC-0021 dimensions (mm)

Industrial PCs

Fanless industrial PC, Intel Core i7-4500U, 230 x 175 x 50 mm (LS-IPC-0021)

Model LS-IPC-0021-BB

  • ProcessorIntel Core i7-4500U
  • Storage1xMSATA3.0 SSD and 1xSATA3.0 HDD
  • OSWindows / Linux
  • LAN ports2
$409.00

Ships in 2-3 weeks

2.5 kg shipping weight

Option

Volume pricing, Net 30 terms or a formal quote for purchasing?

lumaspecvision.com/products/lumaspec-ls-ipc-0021

Request a quote

Fanless industrial PC, Intel Core i7-4500U, 230 x 175 x 50 mm (LS-IPC-0021)LS-IPC-0021-BB

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Where its siblings have Intel Core i5-4200U, LS-IPC-0021 has an Intel Core i7-4500U.

LS-IPC-0021: processor Intel Core i7-4500U, storage 1xMSATA3.0 SSD and 1xSATA3.0 HDD, dimensions 230 x 175 x 50 mm.

Fanless industrial PC, Intel Core i7-4500U. Fanless aluminium industrial computer to run machine-vision software next to the line; storage: 1xMSATA3.0 SSD and 1xSATA3.0 HDD. Sold barebone or with 8 GB RAM + 256 GB SSD fitted; Wi-Fi on request.

Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts Secure checkout Shipping, warranty, support and payment details
  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

90-day returns Unused items, counted from delivery; free US return label; no restocking fee Return policy

Certifications (as printed)CEFCC

Specifications

General

ModelLS-IPC-0021
ConfigurationBarebone: no memory, storage, Wi-Fi module or operating system; or choose the 8 GB RAM + 256 GB SSD option (fitted and tested, no operating system). Wi-Fi on request
In the boxMini PC device, Power Adapter, dual wifi antennas(optional)

Interfaces and I/O

I/OHDMI, VGA, 6 x RS232 COM, 4 x USB 2.0, 4 x USB 3.0, GPIO, 2 x RJ45 Gigabit LAN, MIC, SPK, Switch On/Off, DC IN, 2 x Wi-Fi holes, RAM: 1xSO-DIMM DDR3L Slot, max 8GB DDR3L
WirelessOptional 3G/4G or Wi-Fi & Bluetooth module with dual antennas (on request; not fitted as standard)

Environment and compliance

CertificationCE, FCC, RoHS (manufacturer)
As declared by the manufacturer

Computing

ProcessorIntel Core i7-4500U
Processor detailsIntel Core i7 4500U 1.8GHz, max 3.0GHz CPU
Storage1xMSATA3.0 SSD and 1xSATA3.0 HDD
Operating systemWindows / Linux

Mechanical

Dimensions230 x 175 x 50 mm
Weight2 kg per set

Before you buy

Questions about the LS-IPC-0021

Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.

What can the LS-IPC-0021 connect to?

The I/O is HDMI, VGA, 6 x RS232 COM, 4 x USB 2.0, 4 x USB 3.0, GPIO, 2 x RJ45 Gigabit LAN, MIC, SPK, Switch On/Off, DC IN, 2 x Wi-Fi holes, RAM 1xSO-DIMM DDR3L Slot, max 8GB DDR3L.

What comes installed in the LS-IPC-0021?

The configuration is Barebone no memory, storage, Wi-Fi module or operating system; or choose the 8 GB RAM + 256 GB SSD option (fitted and tested, no operating system). Wi-Fi on request. The operating system is Windows / Linux.

What comes in the box with the LS-IPC-0021?

The in the box is Mini PC device, Power Adapter, dual wifi antennas(optional).

Other models in the Fanless industrial PC (LS-IPC-S08) series

See the category

How this model compares

  • Compared with LS-IPC-0020: processor Intel Core i7-4500U here, Intel Core i5-4200U there.
ModelProcessorPriceAvailabilityLink
LS-IPC-0020Intel Core i5-4200Ufrom $359.00 Ships in 2-3 weeks View
LS-IPC-0021This modelIntel Core i7-4500Ufrom $409.00 Ships in 2-3 weeks
