Industrial PCs

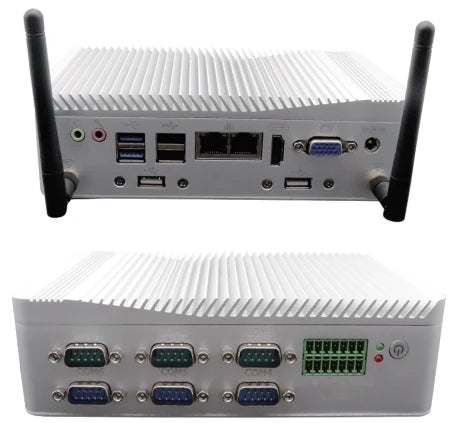

Fanless industrial PC, Intel Celeron J1900 (LS-IPC-0015)
Model LS-IPC-0015-BB
- ProcessorIntel Celeron J1900
- Memory1xSO-DIMM DDR3L Slot, max 8GB DDR3L
- Storage1xMSATA3.0 SSD and 1xSATA3.0 HDD
- OSWindows / Linux
Ships in 2-3 weeks
2.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
lumaspecvision.com/products/lumaspec-ls-ipc-0015
LS-IPC-0015 is the Intel Celeron J1900 version of this industrial PC; its siblings have Intel Core i3-6157U.
LS-IPC-0015: processor Intel Celeron J1900; memory 1xSO-DIMM DDR3L Slot, max 8 GB DDR3L; storage 1xMSATA3.0 SSD and 1xSATA3.0 HDD.
Fanless industrial PC, Intel Celeron J1900. Fanless aluminium industrial computer to run machine-vision software next to the line; memory: 1xSO-DIMM DDR3L Slot, max 8GB DDR3L; storage: 1xMSATA3.0 SSD and 1xSATA3.0 HDD. Sold barebone or with 8 GB RAM + 256 GB SSD fitted; Wi-Fi on request.
Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts Secure checkout Shipping, warranty, support and payment details
- Tracked worldwide shippingTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
90-day returns Unused items, counted from delivery; free US return label; no restocking fee Return policy
Certifications (as printed)CEFCC
Specifications
General
| Model | LS-IPC-0015 |
|---|---|
| Configuration | Barebone: no memory, storage, Wi-Fi module or operating system; or choose the 8 GB RAM + 256 GB SSD option (fitted and tested, no operating system). Wi-Fi on request |
| In the box | Mini PC device, Power Adapter, dual wifi antennas(optional) |
Interfaces and I/O
| I/O | HDMI, VGA, 2 x LED(red for power, green for hard disk), 6 x COM, MIC, SPK, 2 x USB 3.0, 4 x USB 3.0, 2 x RJ45 Gigabit LAN, Switch On/Off, DC IN, 2 x WiFi holes |
|---|---|
| Wireless | Optional 3G/4G or Wi-Fi & Bluetooth module with dual antennas (on request; not fitted as standard) |
Environment and compliance
| Certification | CE, FCC, RoHS (manufacturer)
As declared by the manufacturer |
|---|
Computing
| Processor | Intel Celeron J1900 |
|---|---|
| Memory | 1xSO-DIMM DDR3L Slot, max 8GB DDR3L |
| Storage | 1xMSATA3.0 SSD and 1xSATA3.0 HDD |
| Operating system | Windows / Linux |
Mechanical

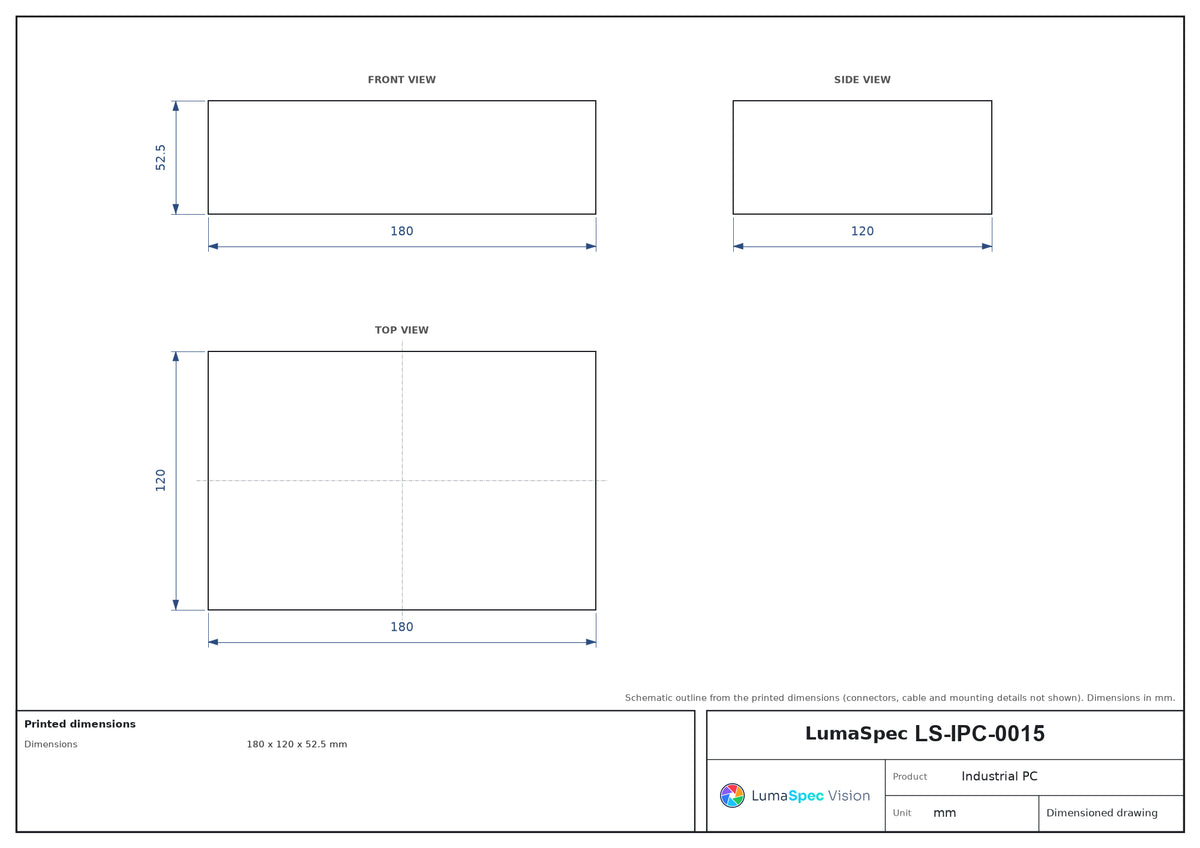

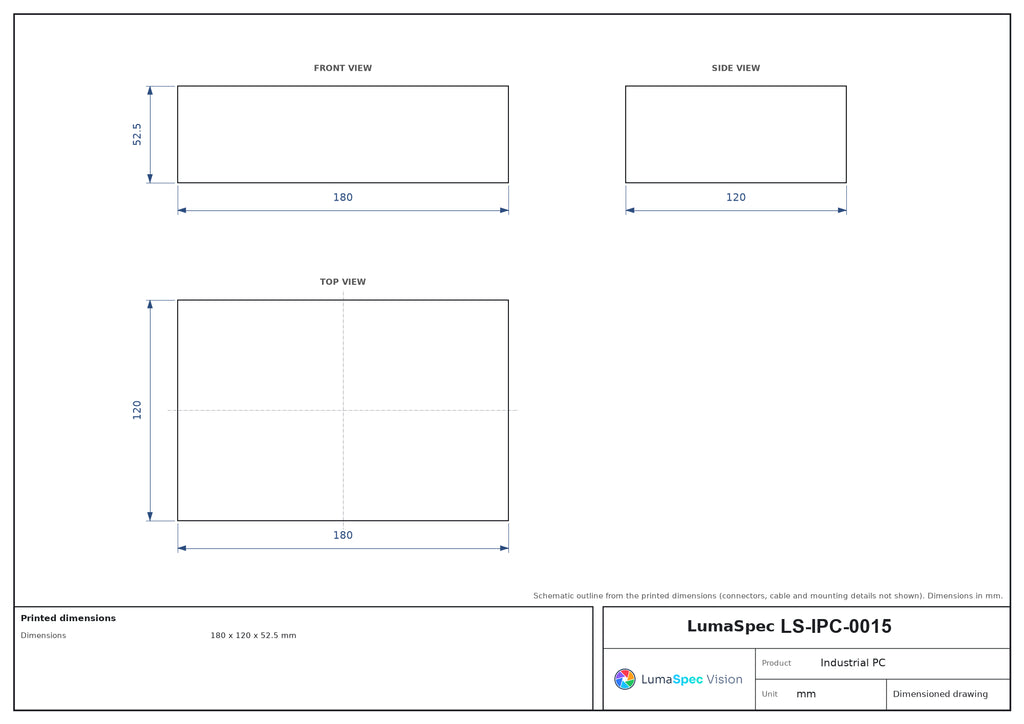

| Dimensions | 180 x 120 x 52.5 mm |
|---|---|
| Weight | 1.5 kg per set |
Engineering data
The LS-IPC-0015 at a glance
Before you buy
Questions about the LS-IPC-0015
Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.
What can the LS-IPC-0015 connect to?
The I/O is HDMI, VGA, 2 x LED(red for power, green for hard disk), 6 x COM, MIC, SPK, 2 x USB 3.0, 4 x USB 3.0, 2 x RJ45 Gigabit LAN, Switch On/Off, DC IN, 2 x WiFi holes.
What comes installed in the LS-IPC-0015?
The configuration is Barebone no memory, storage, Wi-Fi module or operating system; or choose the 8 GB RAM + 256 GB SSD option (fitted and tested, no operating system). Wi-Fi on request. The operating system is Windows / Linux.
What comes in the box with the LS-IPC-0015?
The in the box is Mini PC device, Power Adapter, dual wifi antennas(optional).
Learn
Guides for this part
Engineering guides picked for the LS-IPC-0015: how to choose it, set it up and get a better image.
Other models in the Fanless industrial PC (LS-IPC-S06) series
See the categoryHow this model compares
- Same specifications as LS-IPC-0014 except the processor and processor details (listed there only) rows.
Swipe to see all columns
| Model | Processor | Price | Availability | Link |
|---|---|---|---|---|
| LS-IPC-0015This model | Intel Celeron J1900 | from $269.00 | Ships in 2-3 weeks | |
| LS-IPC-0014 | Intel Core i3-6157U | from $359.00 | Ships in 2-3 weeks | View |
