Representative photo of this series
Ring lights
Half-ring light, outer diameter 90 mm (LS-HSPRL9045)
Model LS-HSPRL9045
- ColourRed, Green, Blue, White
- Power3.5 W
- Angle45°
- TypeStandard
$149.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.5 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Half-ring light with densely arranged LEDs for higher brightness and uniformity; the special half-ring design gives matching illumination for half-ring workpieces and ultra-low-angle lighting; one or more can be used as the situation requires.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-HSPRL9045 |
|---|---|
| Expected life | Red and white: 30000 h continuous, decays to 50% (typical one-year decay 8-15%); blue and green: 30000 h continuous, decays to 60% (typical one-year decay 10-18%) |
| Support | 1 year of free standard technical support; can be customised to the inspected feature, working distance, illumination angle and field of view |
| Angle (deg) | 45 |
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Light
| Wavelength red | 620-630 nm |
|---|---|
| Wavelength green | 525 nm |
| Wavelength blue | 470 nm |
| Colour temperature white | 5000-8000 K |
Environment and compliance
| Operating environment | Ambient about 25 °C, operating temperature within 35 °C |
|---|
Electrical
| Recommended controllers | LS-HAPC2424P-1T, -2T / LS-HMAPC2420-1T, -2T |
|---|---|
| Power (W) | 3.5 |
| Supply voltage (derived) | 24 V DC, derived from the 24 V output of its recommended controllers LS-HAPC2424P-1T, LS-HMAPC2420-1T |

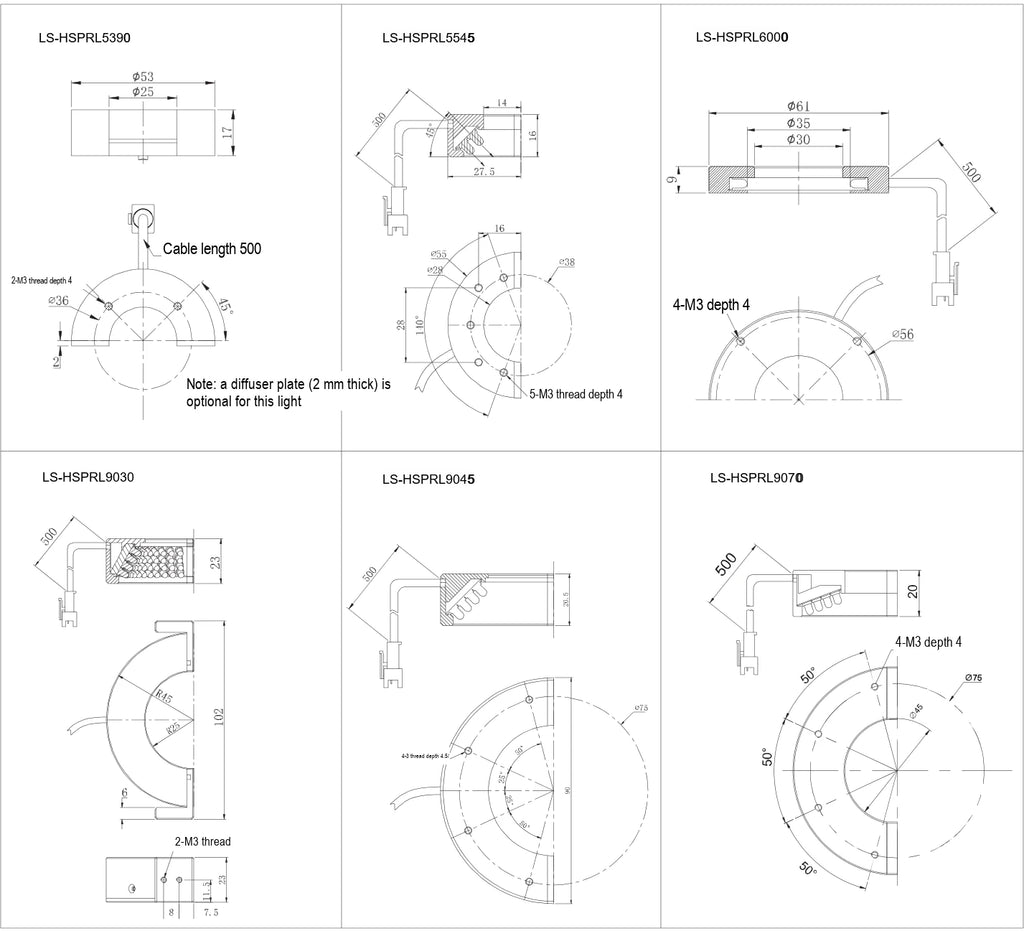

Mechanical
| Outer diameter (mm) | 90 |
|---|---|
| Inner diameter (mm) | 52 |
| Height (mm) | 20.5 |
| Shipping weight | 0.50 kg |
Other models in the Half-ring light (HSPRL) series
See all 9 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-HSPRL6000 | Red, Green, Blue, White · 1 W | $69.00 | 15 in stock | View |
| LS-HSPRL9030 | Red, Green, Blue, White · 4.5 W | $89.00 | 12 in stock | View |
| LS-HSPRL5390 | Red, Green, Blue, White · 3.5 W | $99.00 | 14 in stock | View |
| LS-HSPRL5545 | Red, Green, Blue, White · 1 W | $99.00 | 15 in stock | View |
| LS-HSPRL9070 | Red, Green, Blue, White · 4 W | $149.00 | 11 in stock | View |
| LS-HSPRL10030 | Red, Green, Blue, White · 3.5 W | $159.00 | 14 in stock | View |
| LS-HSPRL12070 | Red, Green, Blue, White · 4.5 W | $189.00 | 15 in stock | View |
| LS-HSPRL16500 | Red, Green, Blue, White · 5 W | $249.00 | 16 in stock | View |
